Применимость
| Модель | Двигатель | Год |
|---|---|---|
| 940 | — | 1991–1998 |
| 940 SE | — | 1991, 1992 |
| 960 | — | 1991–1997 |
| C70 Conv (-05) | — | 1998–2003 |
| C70 Coupe (-02) | — | 1998–2002 |
| S40 (-04) | — | 1996–2003 |
| S40 (04-) | — | 2004 |
| S60 (-09) | — | 2001–2009 |
| S70 | — | 1997–2000 |
| S80 (-06) | — | 1999–2006 |
| S90 | — | 1997, 1998 |
| V40 (-04) | — | 1996–2003 |
| V50 | — | 2004 |
| V70 (-00) | — | 1997–2000 |
| V70 (00-08) | — | 2000–2008 |
| V70 XC (-00) | — | 1998–2000 |
| V70 XC (01-) / XC70 (-07) | — | 2001–2007 |
| V90 | — | 1997, 1998 |
| XC90 | — | 2003–2010 |

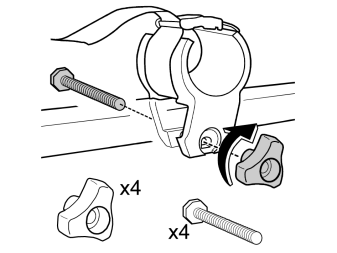

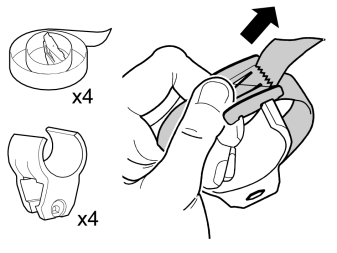

Assembling the mast holder
Installing the mast holder on the load carriers

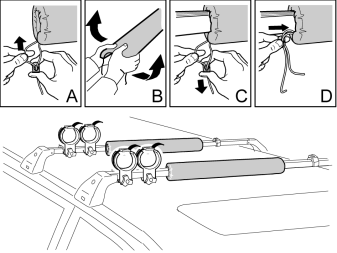

Installing the guard
- Poke in the strings into the guard so that they do not hit the roof of the car.

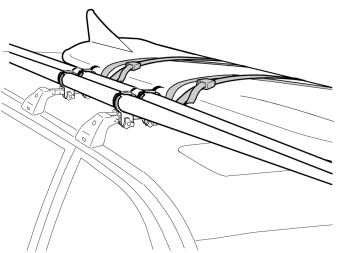

Illustration A Securing the windsurf board
Secure the windsurf board with the front facing forward and the underside upwards as illustrated.

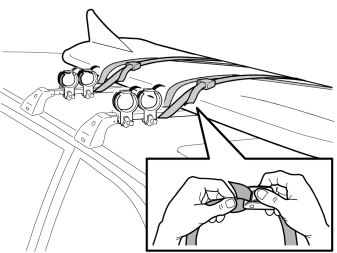

Illustration B Securing the mast
Примечание: Important
- Regularly check that the load carriers are properly secured
- The maximum roof load is 100 kg
- Distribute the load evenly over the load carriers. Do not load at an angle!
- Position the heaviest load underneath
- Remove the load carriers when not in use. This reduces air resistance which improves fuel consumption and reduces wind noise
- Handling is affected by the actual load and its position. The centre of gravity of the car changes when driving with a load, which affects the handling of the car. Adjust the speed accordingly. For further information refer to the manual.
