Применимость
| Модель | Двигатель | Год |
|---|---|---|
| 940 | — | 1991–1998 |
| 940 SE | — | 1991, 1992 |
| 960 | — | 1991–1997 |
| C70 Conv (-05) | — | 1998–2003 |
| C70 Coupe (-02) | — | 1998–2002 |
| S40 (-04) | — | 1996–2003 |
| S40 (04-) | — | 2004–2010 |
| S60 (-09) | — | 2001–2009 |
| S70 | — | 1997–2000 |
| S80 (-06) | — | 1999–2006 |
| S90 | — | 1997, 1998 |
| V40 (-04) | — | 1996–2003 |
| V50 | — | 2004–2010 |
| V70 (-00) | — | 1997–2000 |
| V70 (00-08) | — | 2000–2008 |
| V70 XC (-00) | — | 1998–2000 |
| V70 XC (01-) / XC70 (-07) | — | 2001–2007 |
| V90 | — | 1997, 1998 |
| XC90 | — | 2003–2010 |
Примечание: Important
- Regularly check that the load carriers are properly secured
- The maximum roof load is 100 kg
- Distribute the load evenly over the load carriers. Do not load at an angle!
- Position the heaviest load underneath
- Remove the load carriers when not in use. Air resistance is thus reduced which improves fuel consumption and reduces wind noise
- Handling is affected by the actual load and its position. The centre of gravity of the car changes when driving with a load, which affects the handling of the car. Adjust speed accordingly. For further information refer to the manual.
Securing the wind surfer holder on the wing profile load carriers

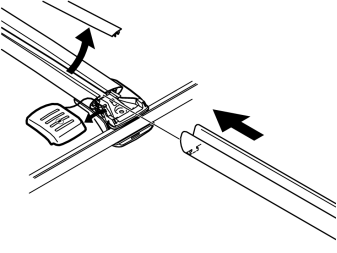

- Remove the cover on the load carriers
- Remove the rubber seal for the T-grooves

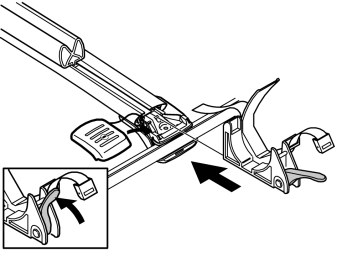

- Slide on the wind surfer holder in the T-groove to the desired position.
- Take the mast holder and position the latch on the horizontal position
- Slide on the mast holder in the T-groove to the desired position
- Twist the latch upwards to the vertical limit position
- Reinstall the cover.
- Measure and cut-out and reinstall the T-groove seals so that they cover the sections of the T-grooves which are not covered by the holders. This is to reduce wind noise.
Securing the wind surfer holder on the oval profile load carriers

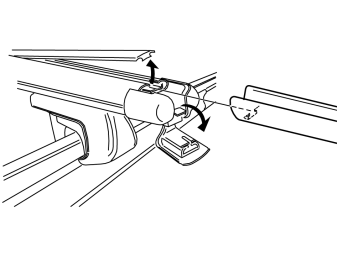

- Fold out the cover on the end of the load carriers.
- Remove the rubber seal for the T-grooves

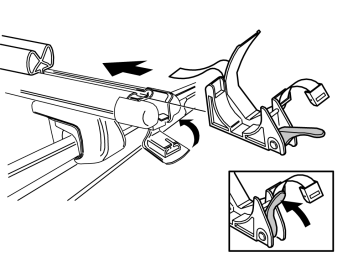

- Slide on the wind surfer holder in the T-groove to the desired position.
- Take the mast holder and position the latch on the horizontal position
- Slide on the mast holder in the T-groove to the desired position
- Twist the latch upwards to the vertical limit position
- Fold the cover back into place.
- Measure and cut-out and reinstall the T-groove seals so that they cover the sections of the T-grooves which are not covered by the holders. This is to reduce wind noise.

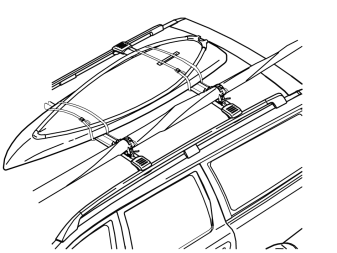

Securing the wind surfer board with the mast on the car as illustrated.
