Waste paper basket (2000, 2001)

Preparations

• Remove the cover. Using a coin or similar, insert the coin in the groove. Carefully twist the cover loose.

Installing the mounting

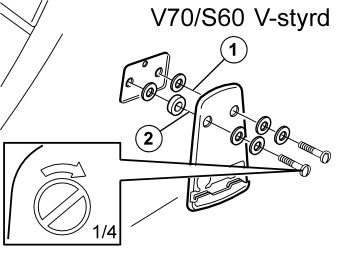

Illustration A is for left-hand drive cars

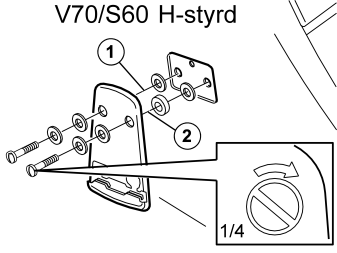

Illustration B is for right-hand drive cars

Position 1:

• Take the shorter screw and three thin washers from the kit
• Slide two thin washers onto the screw
• Slide the screw through the mounting
• Slide a thin washer onto the screw.

Position 2:

• Take the longer screw and the three thin and the slightly larger washers from the kit
• Slide two thin washers onto the screw
• Slide the screw through the mounting
• Slide the slightly larger washer and then the remaining thin washer onto the screw.

Finally:

• Secure the mounting in place. Tighten the screws a quarter turn.

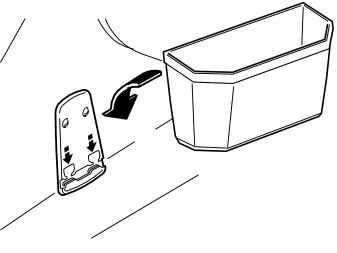

Installing the waste paper basket on the mounting

• Secure the waste paper basket on the mounting from above and down as illustrated.
