USB/iPod Music Player (2009, 2010)

• Turn the ignition key to position 0.

Примечание: Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

• Remove the surround from around the display and media player: Use a small screwdriver and press in the catch on one of the surround's upper corners. Carefully bend loose the surround on the same side with a plastic weatherstrip tool.

Примечание: Do not damage the panel and dashboard.

• Repeat the procedure for the other side and then fold the surround backwards into the vehicle. Pull the surround up until it detaches.

Подсказка: If the panel is difficult to remove, press the panel on both sides again and repeat the procedure starting at the other side.

• Remove the ignition control module (ICM). It is secured by hidden clips, 2 pcs.

Подсказка: Grip with both hands and pull.

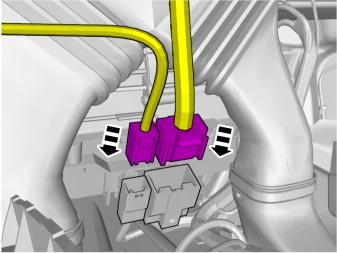

• Disconnect the two connectors. Put the display to one side.

• Apply the handbrake.

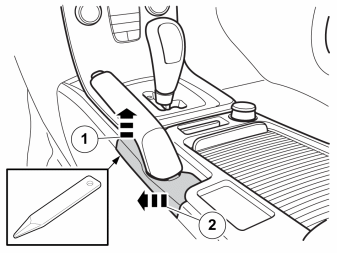

• Detach the panel by prying it up (1) using a weatherstrip tool and then pull it off outwards (2).

• Fold up the tunnel console's armrest and remove the cover at the bottom.

• Remove the two screws.

Steps 7-12 apply to the C70

• Remove the rear seat cushion by first pressing the outer edges of the cushion backwards and then by pulling them upwards so that the outer hooks release.

• Lift the cushion straight up in the middle so that the inner hooks release.

• Remove the cup holder from the rear tunnel compartment by prying at the leading edge and pressing in the catches, first at the leading edge and then on the sides.

• Remove the screws.

• Remove the rear tunnel compartment by pulling it upward/rearward so that it releases from the hooks.

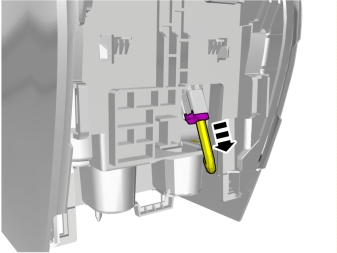

• Unplug the connector at the trailing edge of the tunnel console.

Applies to all models

• Remove the two screws along the front edge of the tunnel console.

• Remove the front storage compartment by prying it off at the front edge using a weatherstrip tool and lifting it out.

• Carefully lift the catches at the front edge of the tunnel console.

Подсказка: Use special tool, P/N 9995919.

• Hold up the lock catch and at the same time slide the entire tunnel console back 20 mm, so that the two rear screws in the centre console are accessible.

• Remove the two screws.

Applies to cars with manual gearbox

• Remove the gear selector lever boot from the center console. First pry it off at the front edge using a weatherstrip tool and then unhook it at the rear edge.

Applies to all models

• Remove the two screws holding the centre console's panel to the dashboard.
• Loosen the connector to the centre console at the rear.
• Remove the center console.

• Lift up the tunnel console and pull it back slightly.
• Unplug the big gray connector at the front.

• Lift out the console and turn it upside down.

Примечание: Protect hand brake and gear lever when removing and installing the tunnel console.

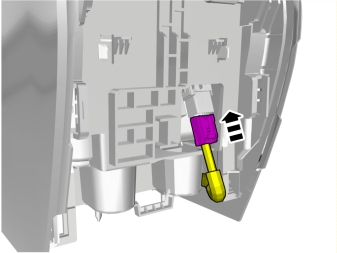

• Unplug the connector of the 12V socket.

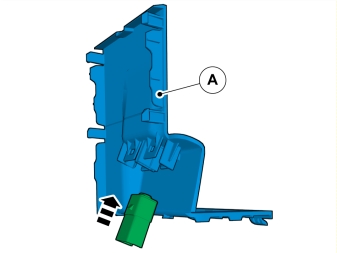

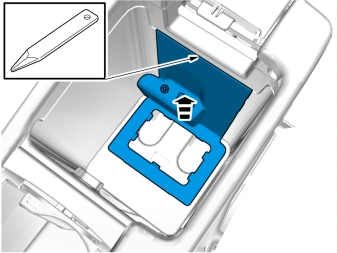

• Carefully bend loose the tunnel console's rear panel using a weatherstrip tool.

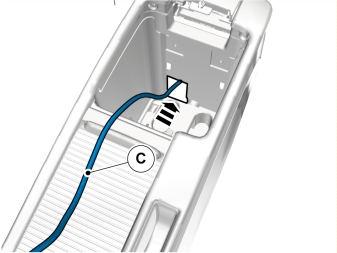

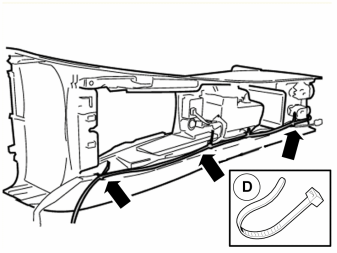

• Clamp in the cable harness to the existing cable harness using cable ties.

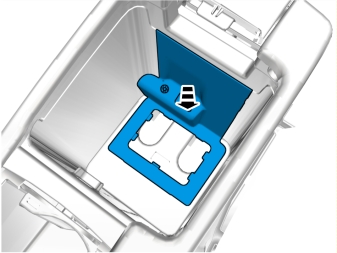

• Reinstall the panel.

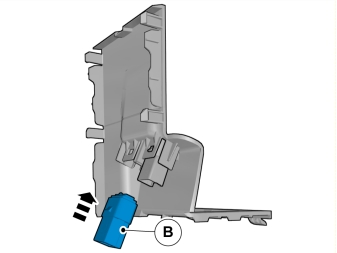

Illustrations A and B

• Reinstall the tunnel console, but do not slide it forward so far that it covers the rear screw holes for the centre console's panel.
• Connect the connectors at the leading edge.

Примечание: Protect the hand brake and gear shift when fitting the tunnel console.

• Remove the two clips securing the cables to the media player by first pressing them to the sides and then pulling them away downwards.

Примечание: Be careful with the optic cables so that they are not bent or stretched.

• Remove the two screws from the bottom of the media player.

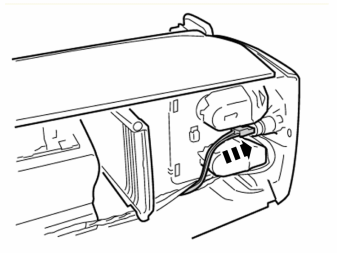

• Pull out the media player and locate the 4-pin foam coated connector.

Примечание: Note how the wiring is packed on the reverse. The fibre optic cables are easily damaged and must not be bent to a radius less than 25 mm (1“).

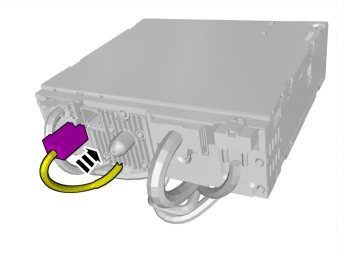

• Remove the foam tape and connect the connector to the media player.

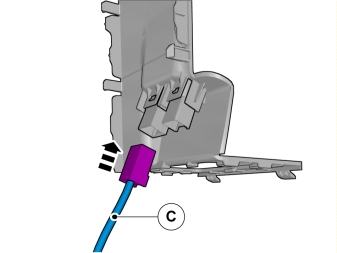

Illustrations A and B

• Install the media player in the dashboard.
• Guide in the lug (1) at the rear of the media player with one hand. The lug must be in the corresponding hole.
• Tighten the media player using the two screws.

Примечание: Make sure that the fibre optic cable is routed so that it is bent to a radius of no less than 25 mm (1").

• Install the centre console, connect the green connector and fit the screws, two at the top and two on the rear edge.

Applies to cars with manual gearbox

• Install the gear selector boot in the center console starting at the rear edge.

• Slide the tunnel console forward so that the locking lug secures it. At the same time, guide in the floor carpet on the right and left-hand side.

Reinstall:

• the two screws at the front edge of the tunnel console.
• the panel at the parking brake.

• Reinstall the screws and cover.
• Reinstall the detached components in reverse order.

• Download the software for the accessory's function following the service information in VIDA.
