Trim panel, doors

• Turn the ignition key to position 0.

Примечание: Wait at least five minutes before disconnecting the connectors or removing other electrical equipment.

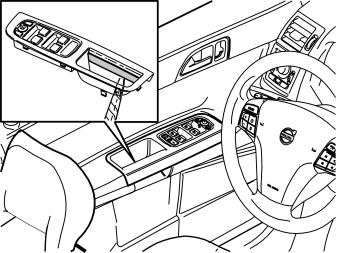

Removing the internal panel for the door handle

• Carefully pry off the small internal panel from the door handle. Use a weatherstrip tool positioned opposite the three catches, in the join at the top and bottom.

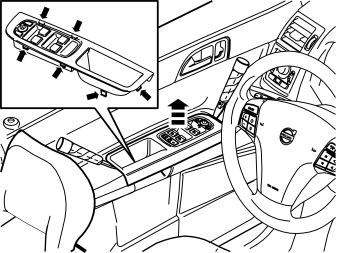

Removing the door handle panel and door moduleIllustration A

• Carefully pry all the way around the door handle panel and door module so that the six clips release and the trim panel releases from the door panel.

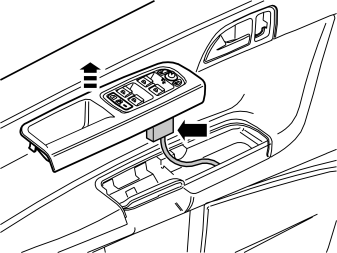

Illustration B

• Pull up the panel and door module. Disconnect the connector on the underneath.

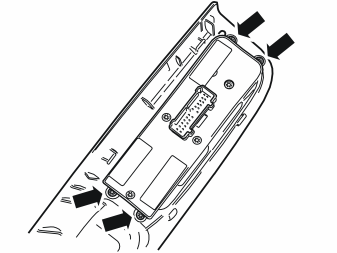

Removing the door module

• Remove the four screws holding the door module at the panel
• Remove the door module.

Installing a new trim panel

• Take the new panel from the kit and tighten the door module to it
• Connect the connector to the door module
• Press the new panel and door module into place. Ensure that the catches engage
• Reinstall the small internal panel.

• Repeat points 2-5 on all doors.
