Trim panel centre stack (2007, 2008)

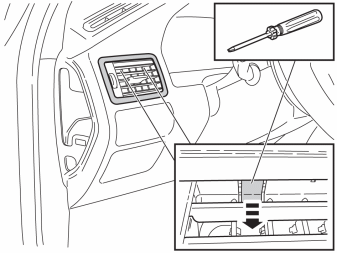

• Prize away the holder for the switch at the lower edge.

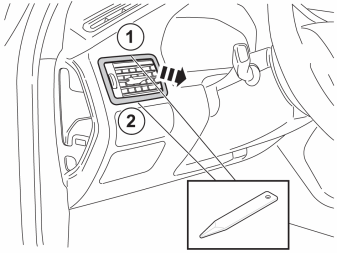

• Then prize at the upper edge while coaxing and pulling it out.

• Locate the holes. Pull the panel with air vents straight out.

• Use special tool P/N 9512943.

• Transfer the air vents and screws over to the new trim panel.

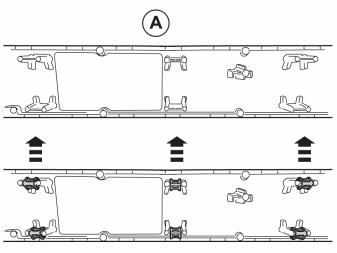

• Transfer the clips over to the new trim panel.

• Thread the connector through the trim panel.

• Press in the trim panel.

Install:

• the screws
• the end face panel
• the switch with holder.

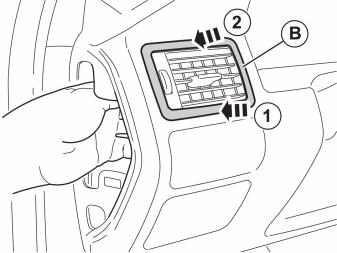

• Firmly hold the air vent from inside when installing the new trim panel.

Applies to cars with manual gearbox

• Press in the front edge of the panel to increase the space at the rear edge.

• Using a weatherstrip tool, prize so that the catches loosen from the gaiter and press the gaiter's inner frame at the same time. Remove the panel.

• Take the new gear lever panel, make sure that the four catches fasten on the gaiter's inner frame.

• Install the gear lever panel.

Applies to cars with automatic gearbox

• Move the gear selector to position D.

• Press in the front edge of the panel to increase the space at the rear edge. Remove the panel.

• Install the new gear selector panel.
