Trim panel centre stack (2004, 2005)

• Turn the ignition key to position 0.
• Remove the ignition key from the ignition switch.

Примечание: Wait at least five minutes before disassembling the connectors or removing other electrical equipment.

Detach the panel at the rear edge of the centre console:

• Use a plastic weatherstrip tool to pry loose the panel. The panel is secured by a catch on each short side.
• Move the panel to the side, to access the two screws underneath.

• Remove the two screws holding the centre console at the rear edge.

Remove the panel on the rear of the centre console:

• Open the glove compartment.
• Use a plastic weatherstrip tool to pry loose the panel. The panel is secured by two catches on each long side.
• Pull the panel off downwards.

Remove the surround for the display and the CD player:

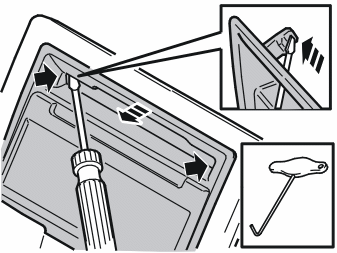

• Press in the catches in the edges of the CD player's cover with a small screwdriver, fold the surround back and pull it up.

• Press out the display from the rear of the centre console.
• Disconnect the two connectors. Put the display to one side.

• Remove the two screws holding the centre console to the dashboard.
• Remove the connector on the reverse of the dashboard environment panel.
• Remove the centre console from the dashboard and tunnel console.

• Remove the eight screws on the rear of the centre console. Remove the rear section.

• Remove the four screws for the dashboard environment panel.
• Remove the dashboard environment panel. Put it to one side.
• Remove the panel from the centre console. A new panel is in the kit.

Take the new panel. Reinstall:

• dashboard environment panel
• rear section
• the centre console for the dashboard and tunnel console
• the connector for the dashboard environment panel
• the connectors for the display
• the display
• the surround for the display and CD player
• the panel on the rear of the centre console
• the panel at the rear edge of the centre console.
