Tow bar wiring, 4-pin

Steps 1-11 apply to the S60

• Turn the ignition switch to position 0.
• Take the wiring harness and protective cover from the kit.
• Attach the protective cover to the 4-pin connector.

• Take the connector holder from the kit.
• Place the connector in the holder and press the two halves of the holder together.

Примечание: Make sure the protective cover retaining strap is not pinched but is positioned in the recess in the connector holder.

• Take the two smaller bolts and the nuts from the kit.
• Secure the connector holder with the connector to the bracket.

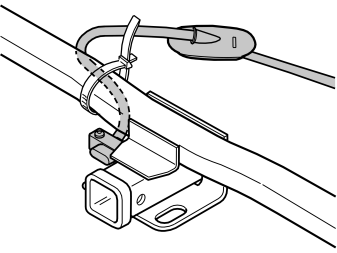

• Secure the cable at the towbar member with a tie strap from the kit.

• Remove the carpet from the luggage compartment.

• Press the centre of the clip into the lower edge of the folding side panels on the right-hand and left-hand sides until a click is heard.
• Remove the two clips.
• Remove the plastic nut along the front/lower edge of the side panel.

• Turn the knob (1) on the right-hand and left-hand sides 90°.
• Fold the panels inwards. Lift the panels out.
• First, pull the bootlid sill trim panel (2) forwards until the two clips on the right-hand and left-hand sides release. Pull forcefully but carefully since the panel is fitted tightly. Pull the panel straight up until the four clips in the lower edge release.
• Remove the wiring (3) for the cargo compartment lighting.
• Lift out the sill trim panel.

• Remove the dummy plug from the hole in the body (battery draining is not affected).

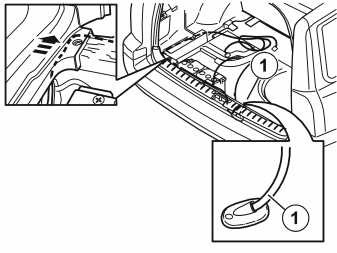

Illustration A

• Route the cable harness from the tow bar connector through the hole in the floor.

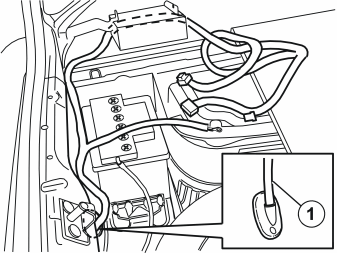

• Adjust the position of the rubber seal (1) so that there is not excessive cable slack under the car.

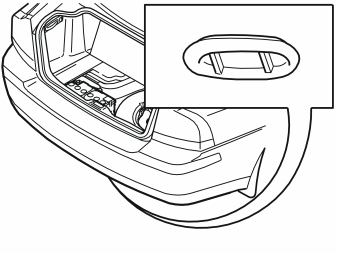

• Install the rubber seal in the hole.
• Route the cable harness over the rear edge of the left-hand side member to the fuse holder as illustrated.

Illustration B

• Secure the cable harness to the cable harness behind the battery with tie straps (2) from the kit.

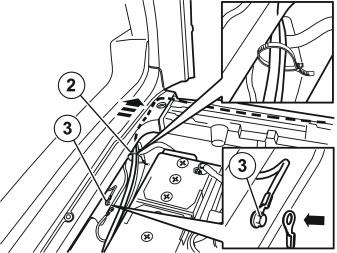

• Connect the routed ground cable to the grounding point (3) behind the battery and tighten the grounding screw securely.

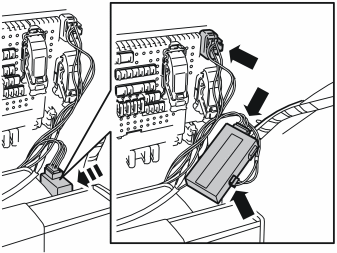

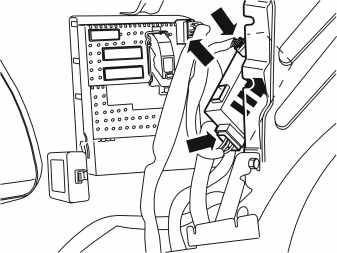

• Detach the trailer module (TRM) from the Velcro fastener on the back side of the plate in front of the fuse holder.
• Plug in the tow bar wiring connectors:
• Reinstall the control module.
• Secure the excess cable with a tie strap from the kit.

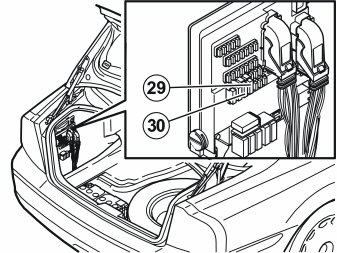

• Insert fuses from the kit in the following positions in the fuse holder (REM):
• Plug in the connectors for sill trim panel lighting and reinstall the panel.
• Reinstall the folding panels.
• Reinstall the cargo compartment carpet.

1. Ground
2. Parking lamps
3. Brake lamp / Left-hand indicator lamp
4. Brake lamp / Right-hand indicator lamp

Steps 12-28 apply to the V70

• Turn the ignition switch to position 0.
• Take the wiring harness and protective cover from the kit.
• Attach the protective cover to the 4-pin connector.

• Take the connector holder from the kit.
• Place the connector in the holder and press the two halves of the holder together.

Примечание: Make sure the protective cover retaining strap is not pinched but is positioned in the recess in the connector holder.

• Take the bracket, the two smaller bolts and the nuts from the kit.
• Secure the bracket to the connector holder.

• Mark the location of the drill hole for the connector bracket as illustrated.

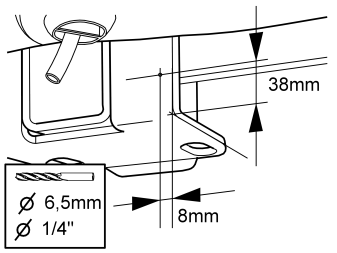

• Pre-drill with a smaller drill bit. Enlarge the hole with a Ø6.5 mm (1/4") drill bit.
• Remove any swarf. Rust-proof the edges of the holes.

• Take the bolt, nut and washer form the kit.
• Place the bracket with the connector over the drilled hole.

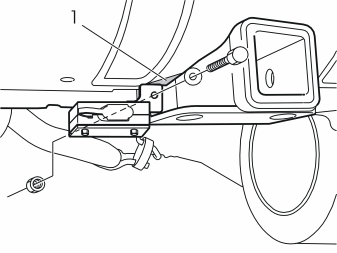

• If the bracket does not fit: Mark an area on the bumper cover where the corner (1) should be cut away and remove the section. If the car is equipped with a protective plate on the rear bumper, it may require chamfering.
• Secure the bracket to the towbar member.

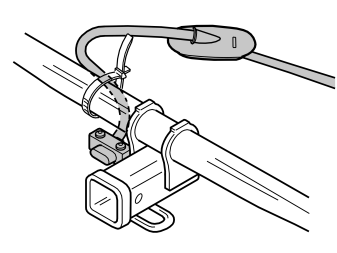

• Secure the cable at the towbar member with a tie strap from the kit.

• Remove the two floor hatches in the cargo compartment.

• Remove the storage compartment under the rear floor hatch by turning the clips on the right-hand and left-hand sides 90°. Lift out the compartment.

• Remove the left-hand folding panel in the cargo compartment.

• Remove the left-hand side panel by first removing the cover and screw from the front edge.
• Pull the top edge of the panel out until the clips release.
• Fold the panel inwards. Lift the panel out.

Applies only to cars with the extra seat or subwoofer accessories

• Remove the bolt (1) and the nuts (2).
• Remove the bracket (3) by pulling it forward.
• Lift off the protective cover (4).

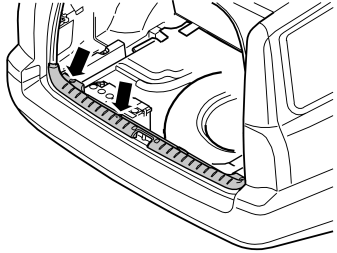

• Remove the two screws in the tailgate sill trim panel.

• Remove the dummy plug from the hole in the body (battery draining is not affected).

Illustration A

• Route the cable harness from the tow bar connector through the hole in the floor.
• Adjust the position of the rubber seal (1) so that there is not excessive cable slack under the car.
• Install the rubber seal in the hole.
• Route the cable harness as shown in the illustration. Pull up the sill trim panel on the left-hand side and place the cable harness in the space behind the left-hand floor support. Make sure the cable harness is not pinched before reinstalling the sill trim panel.
• Tighten the sill trim panel securely.

Illustration B

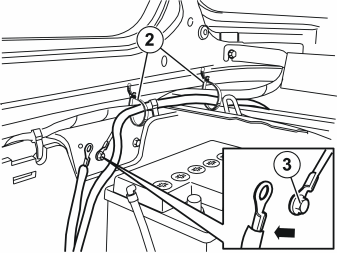

• Secure the cable harness to the cable harness behind the battery with a tie strap (2) from the kit.
• Connect the routed ground cable to the grounding point (3) behind the battery and tighten the grounding screw securely.

• Detach the trailer module (TRM) from the front edge of the cover on the ventilation opening along the rear edge of the left-hand rear wheel housing.
• Plug in the tow bar wiring connectors:
• Reinstall the control module.
• Secure the excess cable with a tie strap from the kit.

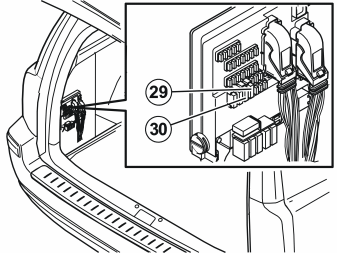

• Insert fuses from the kit in the following positions in the fuse holder (REM):
• Reinstall the side panel.
• Reinstall the folding panel.
• Reinstall the battery cover and bracket if applicable.
• Reinstall the storage compartment and floor hatches.

1. Ground
2. Parking lamps
3. Brake lamp / Left-hand indicator lamp
4. Brake lamp / Right-hand indicator lamp
