Применимость
| Модель | Двигатель | Год |
|---|---|---|
| XC90 | — | 2003–2015 |
Примечание: This accessory requires software unique to the car.

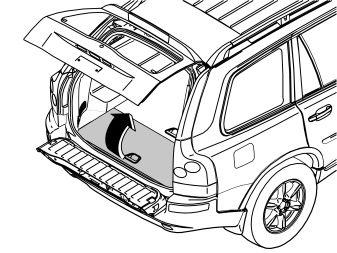

- Fold the rear centre floor hatch up.

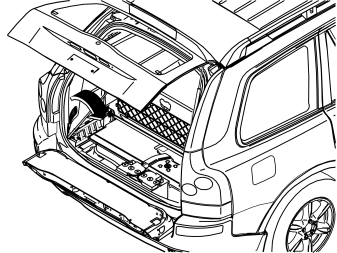

- Remove the left-hand side floor hatch (1).

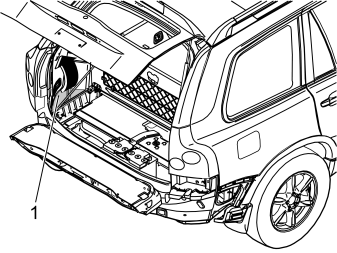

- Remove the left-hand folding side panel.
- Disconnect the pre-routed green connector, taped on the cable harness under the fuse holder
- Connect the connector to the tilt sensor

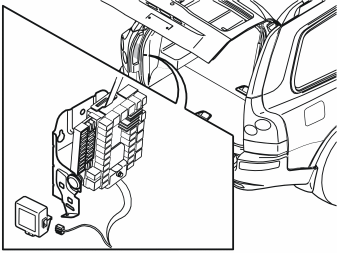

- Install the tilt sensor on the fuse holder bracket. First hook the tilt sensor in the uppermost hole on the bracket. Then secure in the lower hole
- Reinstall the side panel
- Reinstall the side floor hatch and fold down the floor hatch.
- Program the software according to the service information in VIDA.
