Применимость
| Модель | Двигатель | Год |
|---|---|---|
| S60 (-09) | — | 2001–2009 |
| S80 (-06) | — | 1999–2006 |
| V70 (00-08) | — | 2000–2008 |
| V70 XC (01-) / XC70 (-07) | — | 2001–2007 |
Примечание: This accessory is connected to the car's electrical system. It requires software unique to the car.
Applies to the S60/S80
Preparations

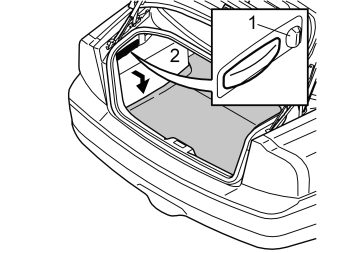

- Turn the knob (1) on the left-hand rear panel through 90º
- Fold the panel (2) inwards.
Installation

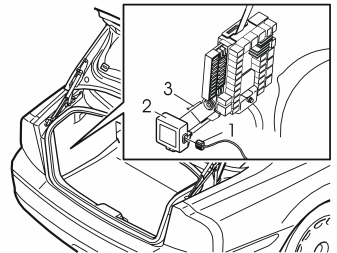

- Disconnect the pre-routed green (GN) connector (1), taped on the cable harness under the fuse holder. Connect the connector to the tilt sensor (2)
- Install the tilt sensor on the bracket (3)
- Reinstall the side panel in the cargo compartment. Reinstall the carpet in the cargo compartment. See procedure ru-RU0900c8af81001534#KC01286547.
Only applies to the V70 (00-)
Preparations
- Remove the left foldable panel in the cargo compartment.
Installation

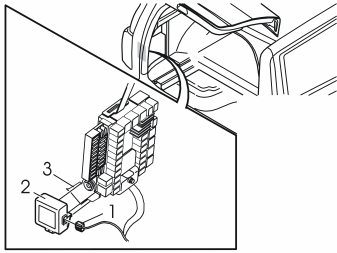

- Disconnect the pre-routed green (GN) connector (1), taped on the cable harness under the fuse holder. Connect the connector to the tilt sensor (2)
- Install the tilt sensor on the bracket (3)
- Reinstall the foldable panel.
Applies to all models
- Program the software according to the service information in VIDA.
