Textile safety net

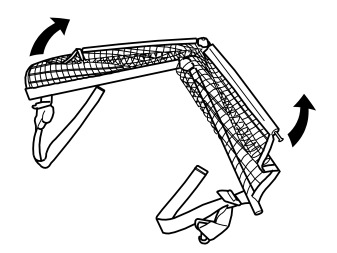

• Fold the safety net out until a clicking noise is heard. The clicking noise indicates the locked position.

Applies to installation behind the front seats

• Fold both seat cushions and backrest for the rear seat forwards.

Applies to both alternatives

Illustration A applies to installation behind the front seats

Illustration B applies to installation behind the rear seats

Secure the safety net with the straps pointing backwards.

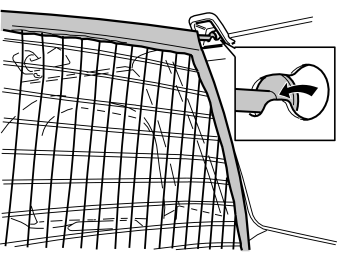

• Insert one end of the safety net in the right-hand roof mounting. Move the end of the safety net to the front position of the roof mounting

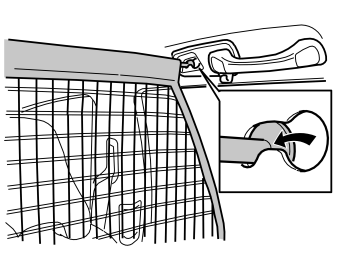

• Move to the left-hand side. Press the spring-loaded bar towards the right-hand roof mounting. Secure in the same manner.

Applies to installation behind the front seats

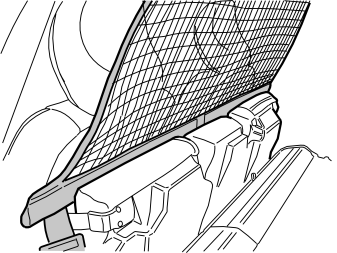

• Position the lower bar for the safety net between the backrest for the front seats and folded up seat cushions for the rear seat.

Illustration A applies to installation behind the front seats

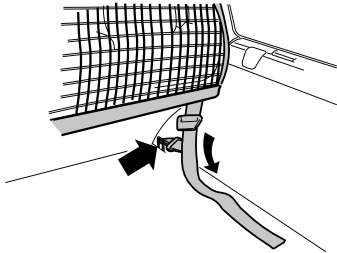

• Secure the hook for the strap in the mounting eyelet on both sides
• Tighten both the straps properly.

Illustration B applies to installation behind the rear seats

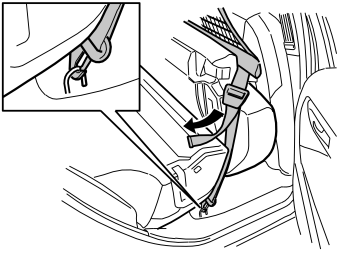

• Secure the hook for the strap in the front mounting eyelet on both sides
• Tighten both the straps properly.

Folding up the safety net

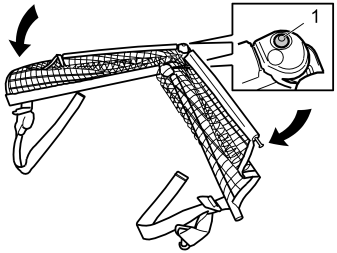

• Press in both lock buttons (1). Fold the safety net together.
