Switch for the sensor shut off function

• Turn the ignition key to position O
• Cars with manual gearboxes: Remove the ignition key
• Disconnect the battery negative lead.

Примечание: Wait at least five minutes before disassembling the connectors or removing other electrical equipment.

Applies to the V70 (00-)

• Carefully pry off the panel in front of the gear selector lever. Use a plastic weatherstrip tool as illustrated
• Move the gear selector lever as far back as possible.

Applies to the S80

• Carefully remove the panel (1) with the boot. Pry carefully using a weatherstrip tool.

Applies to the V70 / S60

• Remove the two screws from the dashboard environment panel.

Applies to the S80

• Move the gear selector lever as far back as possible

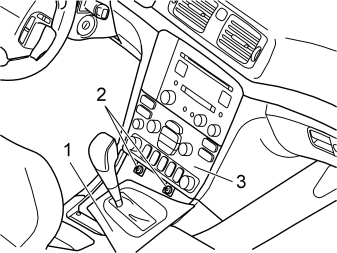

• Pull the panel (1) with the boot as far backwards as possible. Turn the panel as illustrated
• Remove the screws (2) from the dashboard environment panel (3).

• Carefully angle the dashboard environment panel out using a plastic weatherstrip tool so that it is possible to insert a couple of fingers to gain access to the side of the dashboard environmental panel
• Remove the dashboard environment panel. Pull it downward, maintaining the same angle.
• Disconnect the connectors on the reverse of the dashboard environment panel.

Примечание: If any of the outer hooks break off, these must be repaired. See the section dealing with the dashboard in the Workshop manual in VIDA.

• Remove the cigarette lighter
• Position the dashboard environmental panel as illustrated
• Detach the surround (1) by carefully pushing down the three catches (2) in the holes (3) using a small screwdriver. At the same time pry out the surround using a thin weatherstrip tool. Starting at the 12 volt socket (4), pry up one corner. The surround is tightly secured so take care not to damage any components
• Remove the surround.

• See the driver's manual for the position of the switch. Remove the switch blank. Install the new switch (1)
• Reinstall the surround and the cigarette lighter
• Connect the connectors to the dashboard environment panel. Reinstall the dashboard environment panel, see procedure ru-RU0900c8af80ffd5f6#KC01203089 and ru-RU0900c8af80ffd5f6#KC01203090
• Reinstall the panel in front of the gear selector lever, alternatively the panel with the boot.

• Turn the ignition key to position II
• Reconnect the battery negative lead
• Program the software according to the service information in VIDA.
