Применимость
| Модель | Двигатель | Год |
|---|---|---|
| S60 (11-) | B4164T | 2011–2015 |
| S60 (11-) | B4164T2 | 2012–2015 |
| S60 (11-) | B4164T3 | 2011–2015 |
| S60 (11-) | B4204T10 | 2014, 2015A |
| S60 (11-) | B4204T11 | 2014–2015A |
| S60 (11-) | B4204T12 | 2014–2015A |
| S60 (11-) | B4204T15 | 2014, 2015 |
| S60 (11-) | B4204T6 | 2011 |
| S60 (11-) | B4204T7 | 2011–2014 |
| S60 (11-) | B4204T9 | 2014–2015A |
| S60 (11-) | B5204T8 | 2013–2015 |
| S60 (11-) | B5204T9 | 2013–2015 |
| S60 (11-) | B5254T12 | 2013–2015A |
| S60 (11-) | B5254T14 | 2013–2015 |
| S60 (11-) | B5254T5 | 2011–2012A |
| S60 (11-) | B6304T3 | 2015 |
| S60 (11-) | B6304T4 | 2011–2015A |
| S60 (11-) | D4162T | 2011–2015 |
| S60 (11-) | D4204T5 | 2014, 2015 |
| S60 (11-) | D5204T2 | 2011 |
| S60 (11-) | D5204T3 | 2012–2015 |
| S60 (11-) | D5204T7 | 2013–2015 |
| S60 (11-) | D5244T10 | 2011 |
| S60 (11-) | D5244T11 | 2012–2015 |
| S60 (11-) | D5244T15 | 2012–2015 |
| S60 (11-) | D5244T23 | 2015 |
| S60L | B5204T8 | 2014, 2015 |
| S60L | B5204T9 | 2014, 2015 |
| S80 (07-) | B4164T | 2011–2015 |
| S80 (07-) | B4164T2 | 2012–2014 |
| S80 (07-) | B4204S3 | 2010, 2011 |
| S80 (07-) | B4204S4 | 2010, 2011 |
| S80 (07-) | B4204T11 | 2014–2015A |
| S80 (07-) | B4204T12 | 2014, 2015A |
| S80 (07-) | B4204T15 | 2014, 2015 |
| S80 (07-) | B4204T6 | 2010–2014 |
| S80 (07-) | B4204T7 | 2011–2014 |
| S80 (07-) | B5254T10 | 2010–2012 |
| S80 (07-) | B5254T11 | 2010, 2011 |
| S80 (07-) | B5254T12 | 2013, 2014 |
| S80 (07-) | B5254T14 | 2013 |
| S80 (07-) | B5254T8 | 2010, 2011 |
| S80 (07-) | B6304T2 | 2010 |
| S80 (07-) | B6304T4 | 2011–2015A |
| S80 (07-) | B6324S | 2010 |
| S80 (07-) | B6324S2 | 2010 |
| S80 (07-) | B6324S4 | 2011–2015A |
| S80 (07-) | B6324S5 | 2011–2015A |
| S80 (07-) | B8444S | 2010, 2011 |
| S80 (07-) | D4162T | 2012–2015 |
| S80 (07-) | D4164T | 2010, 2011 |
| S80 (07-) | D4204T | 2010 |
| S80 (07-) | D4204T5 | 2014, 2015 |
| S80 (07-) | D5204T2 | 2011 |
| S80 (07-) | D5204T3 | 2012–2015 |
| S80 (07-) | D5204T7 | 2013, 2014 |
| S80 (07-) | D5244T10 | 2010, 2011 |
| S80 (07-) | D5244T11 | 2012–2014 |
| S80 (07-) | D5244T14 | 2010 |
| S80 (07-) | D5244T15 | 2012–2015 |
| S80 (07-) | D5244T19 | 2010 |
| S80 (07-) | — | 2007–2009 |
| S80L | B4204T6 | 2010–2013 |
| S80L | B4204T7 | 2012, 2013 |
| S80L | B5204T8 | 2012, 2013 |
| S80L | B5204T9 | 2012 |
| S80L | B5254T12 | 2012 |
| S80L | B5254T6 | 2010 |
| S80L | B6304T2 | 2010 |
| S80L | B6304T4 | 2010–2013 |
| S80L | — | 2008, 2009 |
| V40 (13-) | B4204T11 | 2015 |
| V40 (13-) | D4204T14 | 2015 |
| V40 Cross Country | D4204T14 | 2015 |
| V60 | B4164T | 2011–2015 |
| V60 | B4164T2 | 2012–2015 |
| V60 | B4164T3 | 2011–2015 |
| V60 | B4204T11 | 2014–2015A |
| V60 | B4204T12 | 2014, 2015A |
| V60 | B4204T15 | 2014, 2015 |
| V60 | B4204T6 | 2011 |
| V60 | B4204T7 | 2011–2014 |
| V60 | B4204T9 | 2014, 2015 |
| V60 | B5204T8 | 2013, 2014 |
| V60 | B5204T9 | 2013–2015 |
| V60 | B5254T12 | 2014–2015A |
| V60 | B6304T3 | 2015 |
| V60 | B6304T4 | 2011–2015A |
| V60 | D4162T | 2011–2015 |
| V60 | D4204T5 | 2014, 2015 |
| V60 | D5204T2 | 2011 |
| V60 | D5204T3 | 2012–2015 |
| V60 | D5204T7 | 2013–2015 |
| V60 | D5244T10 | 2011 |
| V60 | D5244T11 | 2012–2015 |
| V60 | D5244T12 | 2014, 2015 |
| V60 | D5244T15 | 2012–2015 |
| V60 | D5244T17 | 2013–2015 |
| V60 | D5244T23 | 2015 |
| V60 | D82PHEV | 2013–2015 |
| V60 | D87PHEV | 2015 |
| V60 Cross Country | B5254T12 | 2015 |
| V70 (08-) | B4164T | 2011–2015 |
| V70 (08-) | B4164T2 | 2012–2015 |
| V70 (08-) | B4204S3 | 2010, 2011 |
| V70 (08-) | B4204S4 | 2010, 2011 |
| V70 (08-) | B4204T11 | 2014, 2015 |
| V70 (08-) | B4204T6 | 2010, 2011 |
| V70 (08-) | B4204T7 | 2011–2014 |
| V70 (08-) | B5204T9 | 2013–2015 |
| V70 (08-) | B5254T10 | 2010–2012 |
| V70 (08-) | B5254T11 | 2010, 2011 |
| V70 (08-) | B6304T2 | 2010 |
| V70 (08-) | B6304T4 | 2011–2015 |
| V70 (08-) | B6324S | 2010 |
| V70 (08-) | B6324S2 | 2010 |
| V70 (08-) | B6324S5 | 2011–2014 |
| V70 (08-) | D4162T | 2012–2015 |
| V70 (08-) | D4164T | 2010, 2011 |
| V70 (08-) | D4204T | 2010 |
| V70 (08-) | D4204T5 | 2014, 2015 |
| V70 (08-) | D5204T2 | 2011 |
| V70 (08-) | D5204T3 | 2012–2015 |
| V70 (08-) | D5204T7 | 2013–2015 |
| V70 (08-) | D5244T10 | 2010, 2011 |
| V70 (08-) | D5244T11 | 2012–2015 |
| V70 (08-) | D5244T12 | 2014, 2015 |
| V70 (08-) | D5244T14 | 2010 |
| V70 (08-) | D5244T15 | 2012–2015 |
| V70 (08-) | D5244T17 | 2013–2015 |
| V70 (08-) | D5244T19 | 2010 |
| V70 (08-) | — | 2008, 2009 |
| XC60 | B4204T10 | 2014, 2015A |
| XC60 | B4204T11 | 2014–2015A |
| XC60 | B4204T12 | 2014, 2015A |
| XC60 | B4204T15 | 2014, 2015 |
| XC60 | B4204T6 | 2010–2012 |
| XC60 | B4204T7 | 2011–2015 |
| XC60 | B4204T9 | 2014–2015A |
| XC60 | B5254T12 | 2015 |
| XC60 | B5254T14 | 2015 |
| XC60 | B6304T2 | 2010 |
| XC60 | B6304T4 | 2011–2015A |
| XC60 | B6324S | 2010 |
| XC60 | B6324S2 | 2010 |
| XC60 | B6324S4 | 2011–2015A |
| XC60 | B6324S5 | 2011–2015A |
| XC60 | D4204T5 | 2014, 2015 |
| XC60 | D5204T2 | 2011 |
| XC60 | D5204T3 | 2012–2015 |
| XC60 | D5204T7 | 2013–2015 |
| XC60 | D5244T10 | 2010, 2011 |
| XC60 | D5244T11 | 2012–2015 |
| XC60 | D5244T12 | 2014, 2015 |
| XC60 | D5244T14 | 2010 |
| XC60 | D5244T15 | 2012–2015 |
| XC60 | D5244T16 | 2010, 2011 |
| XC60 | D5244T17 | 2012–2015 |
| XC60 | D5244T23 | 2015 |
| XC60 | — | 2009, 2010A |
| XC70 (08-) | B4204T11 | 2014–2015A |
| XC70 (08-) | B6304T2 | 2010 |
| XC70 (08-) | B6304T4 | 2011–2015A |
| XC70 (08-) | B6324S | 2010 |
| XC70 (08-) | B6324S2 | 2010 |
| XC70 (08-) | B6324S4 | 2011–2015A |
| XC70 (08-) | B6324S5 | 2011–2015A |
| XC70 (08-) | D4204T5 | 2014, 2015 |
| XC70 (08-) | D5204T2 | 2011 |
| XC70 (08-) | D5204T3 | 2012–2015 |
| XC70 (08-) | D5244T10 | 2010, 2011 |
| XC70 (08-) | D5244T11 | 2012–2015 |
| XC70 (08-) | D5244T12 | 2014, 2015 |
| XC70 (08-) | D5244T14 | 2010 |
| XC70 (08-) | D5244T15 | 2012–2015 |
| XC70 (08-) | D5244T16 | 2010, 2011 |
| XC70 (08-) | D5244T17 | 2012–2015 |
| XC70 (08-) | — | 2008, 2009 |
Демонтаж
Примечание: Рабочие шаги для демонтажа в этой процедуре могут также содержать информацию, касающуюся установки.
См. информацию по технике безопасности при работе тормозной системы Säkerhetsinformation bromssystem
Снимите передние тормозные колодки Тормозные накладки, передние

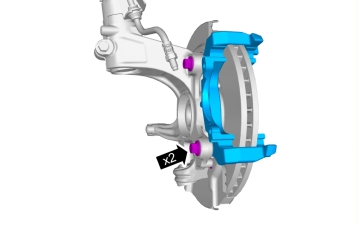

- 🔩 Момент затяжки: 18 Н·м

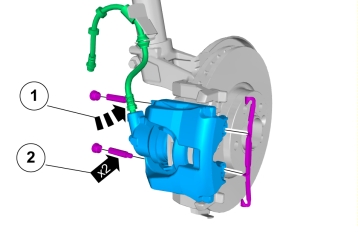

- 🔩 Момент затяжки: 28 Н·м
🔩 Момент затяжки: 200 Н·м
Установка
Установите в обратном порядке.

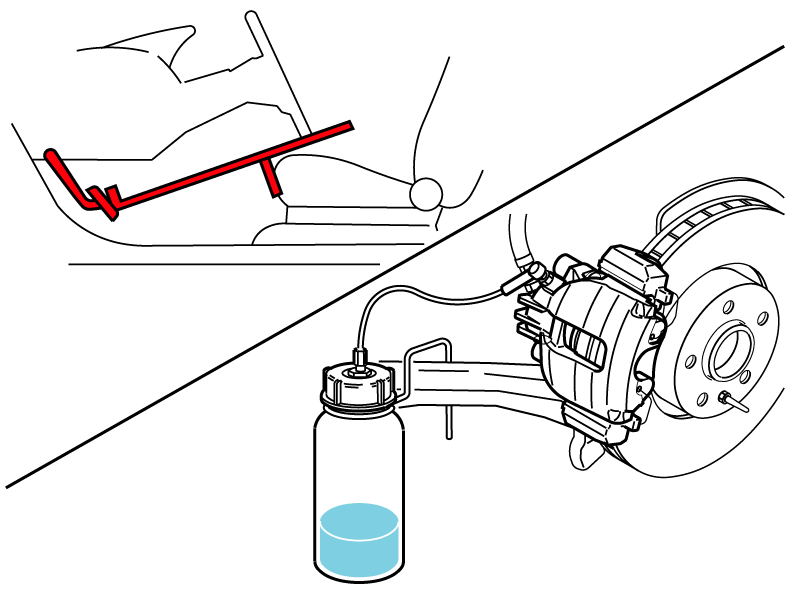

Выполните продувку тормозной системы Avluftning bromssystem Avluftning bromssystem
