Sunglasses holder (1999, 2000)

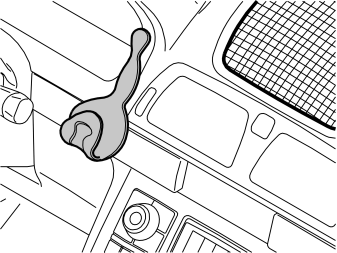

Illustration A applies to the XC90

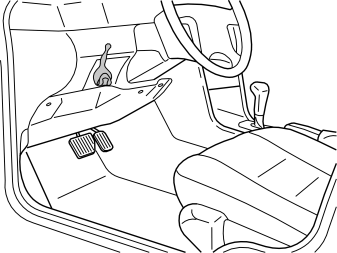

Illustration B applies to the XC90

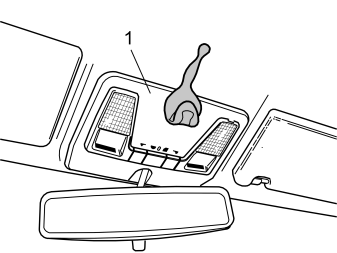

Illustration C applies to the 850, 900, S40, V40, C70 coupé, S70, V70, S90 and V90 without a sunroof or with a power sunroof

• The most suitable location for the sunglasses holder for these models is at the rear edge of the panel (1).

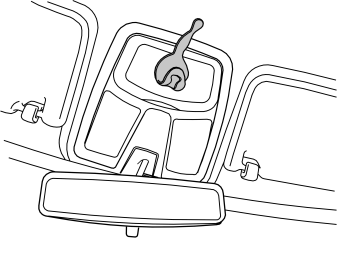

Illustration D applies to the S70 and V70 with manual sun roofs, the C70-cabriolet, the S60 and S80

• The most suitable location for the sunglasses holder in these models is in the centre of the panel recess as illustrated.

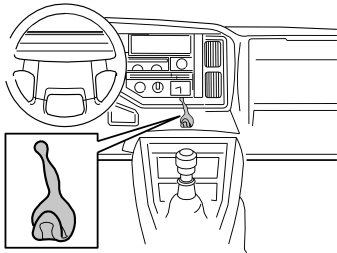

Illustration E applies to the 400

• The most suitable place for the sunglasses holder in the 400 is on the dashboard as illustrated.

Thoroughly clean the surface where the sunglasses holder is to be positioned. Use denatured alcohol.

• The most suitable places for the sunglasses holder, in the XC90, is either on the roof panel between the sun visors (see illustration A), or on the dashboard (see illustration B).

• Remove the backing from the sunglasses holder
• Install the sunglasses holder. Press the tape hard against the surface underneath. Hold for a moment.

Примечание: After mounting, the tape must be allowed to cure for 24 hours at a minimum of +15°C (60°F) before the sunglasses holder can be used.

• Place the sunglasses in the holder. Secure the glasses using the strap as illustrated.
