Sun blind, luggage compartment (3)

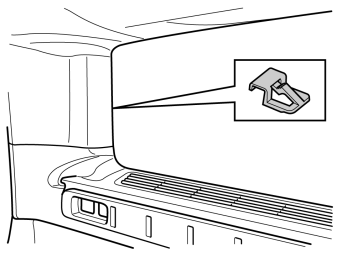

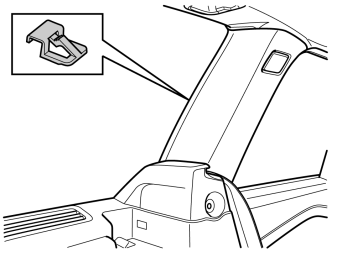

Illustrations A and B

• Take clips from the kit. Press the clips between the panel and window as illustrated in image A and B. Use a weatherstrip tool to pry if the gap between the panel and window is too small.

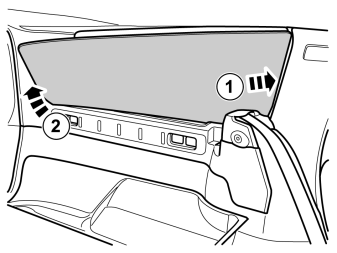

• Install the blind in the clips, first at the front edge and then at the rear edge.
• Repeat the steps on the other side.

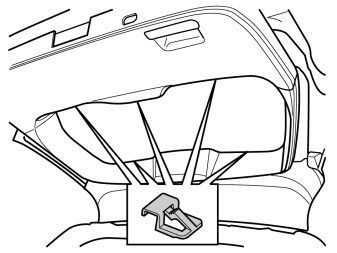

• Take five clips from the kit. Press the clips between the panel and window as illustrated. Use a weatherstrip tool to pry if the gap between the panel and window is too small.

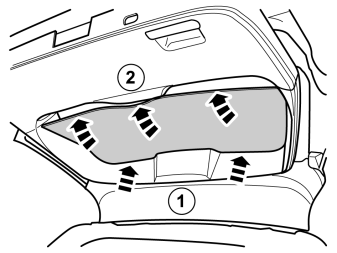

• Install the blind in the clips, first at the top edge and then at the lower edge.
