Sun blind, luggage compartment (2004, 2005)

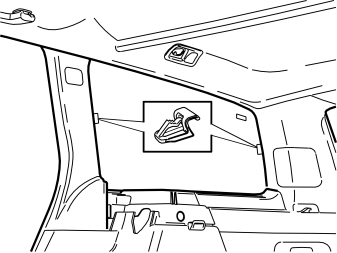

• Take two holders from the kit and press them in between panel and side window approximately in the middle of the panel/side window's front and rear end faces.

The sun visors are the same for right and left-hand sides.

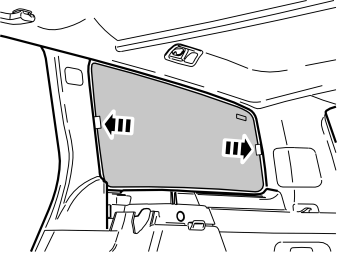

• Hold open the side sun visor against the side window. Make sure that the Volvo decal points backwards into the car and is located in the top edge.
• Press the edges of the sun visor against the side window and hook the front and rear end faces into the two holders.

• Repeat steps 1-2 on the other side window.

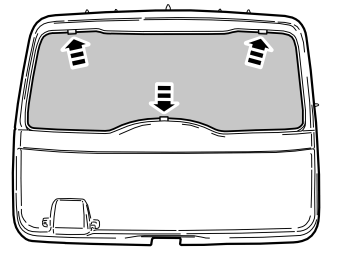

• Take three holders from the kit and press them in between panel and rear window approximately as indicated by the arrows.

• Hold open the sun visor against the rear window. Make sure that the Volvo decal is located in the top edge.

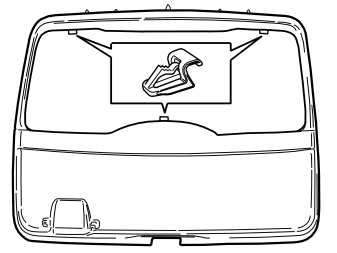

• Press the edges of the sun visor against the rear window and hook the upper and lower long sides into the three holders.

Illustration A

• Grip the two diagonal corners and turn the sun visor as illustrated. Turn the sun blind into itself. Only a slight force is required to fold the sun visor together.

Illustration B

Illustration C
