Применимость
| Модель | Двигатель | Год |
|---|---|---|
| S40 (04-) | — | 2004–2010 |
| S60 (-09) | — | 2001–2009 |
| S80 (-06) | — | 1999–2006 |
| S80 (07-) | — | 2007–2010 |
| V50 | — | 2004–2010 |
| V70 (00-08) | — | 2000–2008 |
| V70 (08-) | — | 2008–2010 |
| V70 XC (01-) / XC70 (-07) | — | 2001–2007 |
| XC70 (08-) | — | 2008–2010 |
| XC90 | — | 2003–2010 |

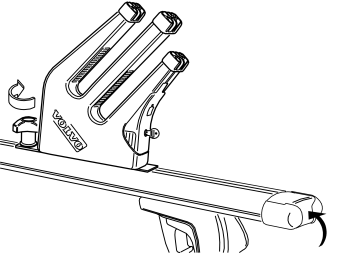

- Open the cover on the load carrier
- Remove the rubber strip from the T-grooves on the load carrier.

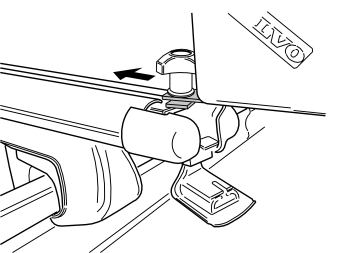

- Insert the mountings for the snowboard holder in the T-groove on the load carrier. Ensure that the lock button is facing outwards
- Slide the snowboard holder to the desired position.
- Lock the snowboard holder into place. Turn the knob
- Fold up the cover on the load carrier.

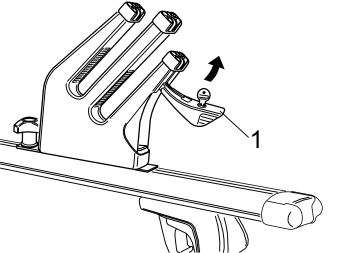

- Unlock the holder. Open the catch (1).

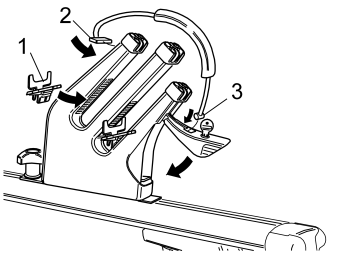

- Squeeze the supports (1). Slide the supports in from the side
- Insert the cable end (2) into the appropriate groove. Insert the other cable end (3) into the catch. Lock
- Adjust the supports (1) and the cable (2) along the width of the snowboard. This is to ensure that the snowboard does not come loose during journeys.
