Применимость
| Модель | Двигатель | Год |
|---|---|---|
| S40 (04-) | — | 2004 |
| S60 (-09) | — | 2001–2009 |
| S80 (-06) | — | 1999–2006 |
| V50 | — | 2004 |
| V70 (00-08) | — | 2000–2008 |
| V70 XC (01-) / XC70 (-07) | — | 2001–2007 |
| XC90 | — | 2003–2010 |
Installing the cover

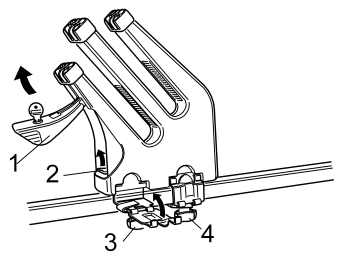

- Unlock the holder. Open the catch (1)
- Pull up the locking tab (2). Press the lock facing (3) down
- Install the holder on the load carrier
- Press the lock facing up and tighten the screws (4).

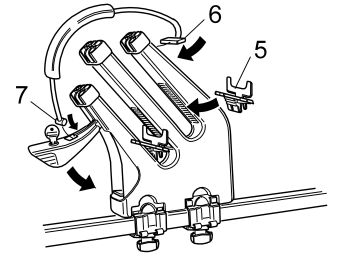

- Squeeze the supports (5) together. Slide the supports in from the side
- Slide one end of the cable into a suitable groove (6)
- Insert the other end of the cable into the catch (7). Lock in place
- Adjust the supports (5) and the cable (6) along the width of the snowboard. This is to ensure that the snowboard does not come loose during journeys.
