Применимость
| Модель | Двигатель | Год |
|---|---|---|
| S40 (04-) | — | 2004–2010 |
| S60 (-09) | — | 2001–2009 |
| S80 (-06) | — | 1999–2006 |
| S80 (07-) | — | 2007–2010 |
| V50 | — | 2004–2010 |
| V70 (00-08) | — | 2000–2008 |
| V70 (08-) | — | 2008–2010 |
| V70 XC (01-) / XC70 (-07) | — | 2001–2007 |
| XC70 (08-) | — | 2008–2010 |
| XC90 | — | 2003–2010 |

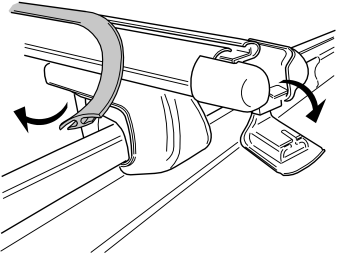

- Open the cover on the load carrier
- Remove the rubber strip from the T-grooves on the load carrier.

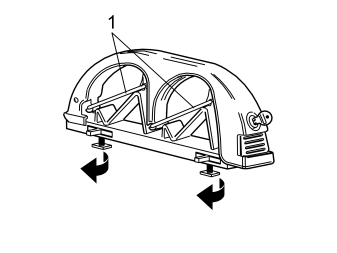

- Install the rubber rings (1) as illustrated
- Screw the two mounting plates out a few turns. This is to enable them to slide into the T-grooves on the load carrier.

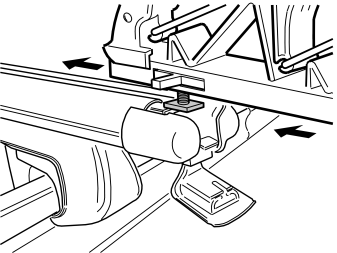

- Insert the mountings for the ski holder in the T-grooves on the load carrier. Ensure that the lock button is facing outwards
- Slide the ski holder to the desired position
- Fold the cover back into place on the load carrier.
- Unlock the ski holder using the key

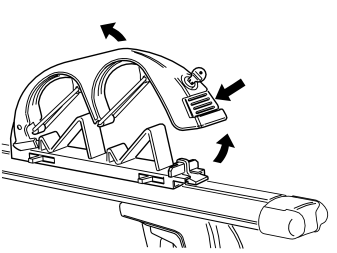

- Press in the button. Fold up the upper section of the ski holder as far as possible.

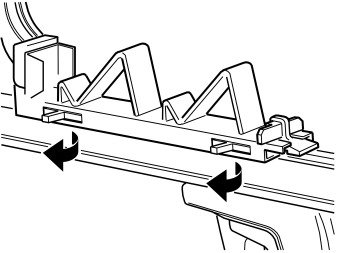

- Lock the ski holder in the load carrier. Tighten the two knobs.

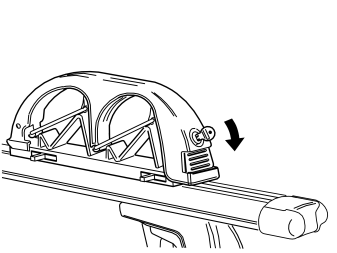

- Fold down the ski holder. Lock the ski holder.
