Применимость
| Модель | Двигатель | Год |
|---|---|---|
| S40 (04-) | — | 2004–2009 |
| S60 (-09) | — | 2001–2009 |
| S80 (-06) | — | 1999–2006 |
| V50 | — | 2004–2009 |
| V70 (00-08) | — | 2000–2008 |
| V70 XC (01-) / XC70 (-07) | — | 2001–2007 |
| XC90 | — | 2003–2009 |
Installing the cover

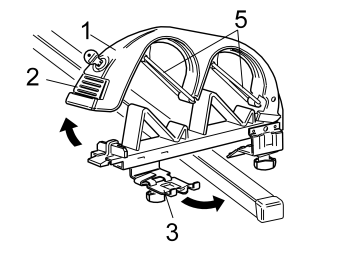

- Unlock the holder (1)
- Press in the latch (2). Press the upper section upwards
- Install the rubber rings (5) as illustrated
- Open the lock facing (3). Place the holder on the load carrier by turning it over the load carrier.

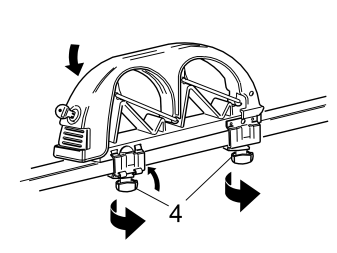

- Press the lock facing up and tighten the screws (4)
- Press the upper section down and lock it in place.
