Применимость
| Модель | Двигатель | Год |
|---|---|---|
| S40 (04-) | — | 2004 |
| S60 (-09) | — | 2001, 2002 |
| S80 (-06) | — | 1999–2002 |
| V50 | — | 2004 |
| V70 (00-08) | — | 2000–2002 |
| V70 XC (01-) / XC70 (-07) | — | 2001, 2002 |
| XC90 | — | 2003 |
The ski holder can be mounted in two positions:Directly onto the load carrier (square profile or T-groove profile)Raised mounting 25 mm (square profile)
Подсказка: Raised mounting is used when more room is needed for the ski bindings.

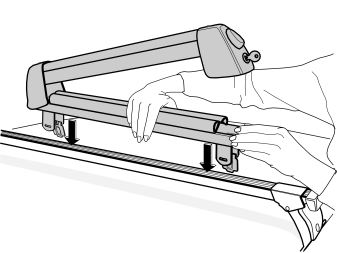

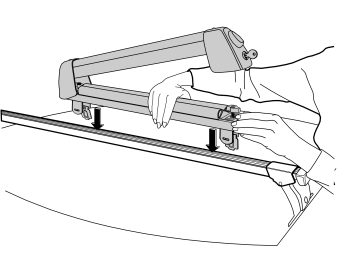

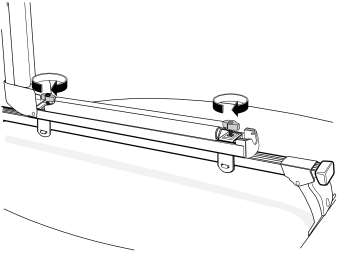

Illustration 1A-C displays installation directly onto load carriers with a square profile

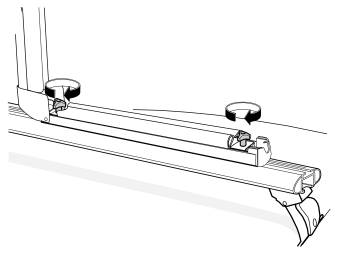

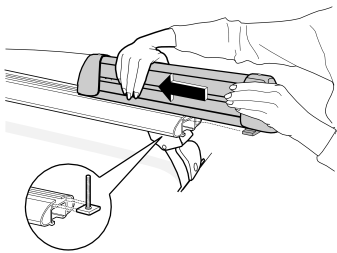

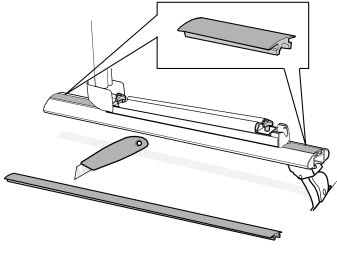

Illustration 2A-F displays installation directly onto load carriers with a T-groove profile

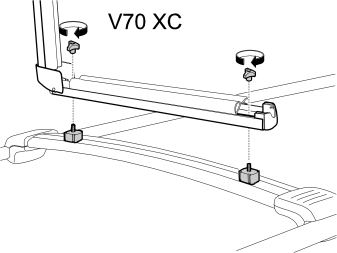

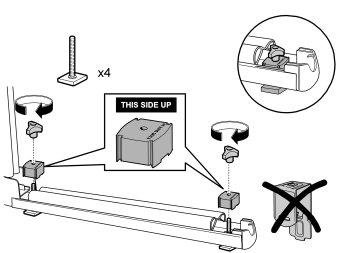

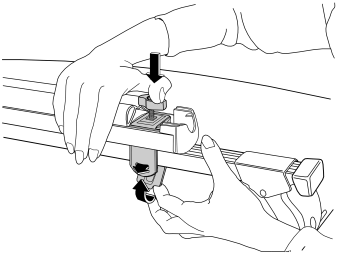

Illustration 3A-G displays raised mounting on load carriers with square profile Illustration 3H displays mounting on load carriers with wing profile and T-groove

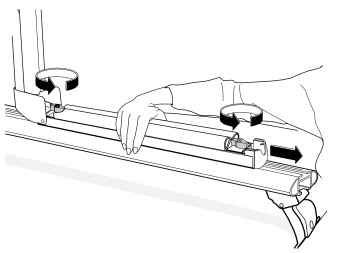

Removing the ski holder

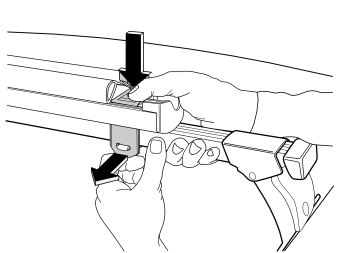

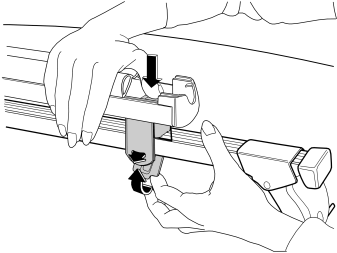

Illustration 4A-B applies to load carriers with square profile Illustration 4C applies to load carriers with T-groove profile
