Sill decor (2008, 2009)

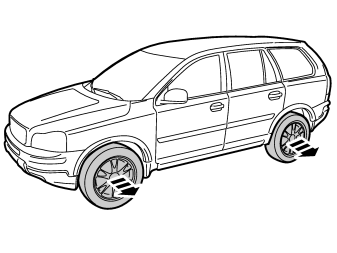

• Remove the front and rear wheels on one side.

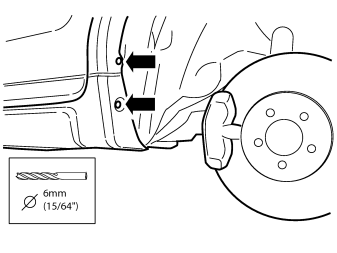

• Drill out the pop rivet at the rear edge of the door sill panel and the rear pop rivet in the wing extender. Use a Ø6 mm (15/64") drill bit.
• Remove any swarf and rivet residue.

• Carefully turn out the lower edge/rear edge of the front end of the wing extender.

Примечание: Do not turn excessively so that the tape at the front edge detaches.

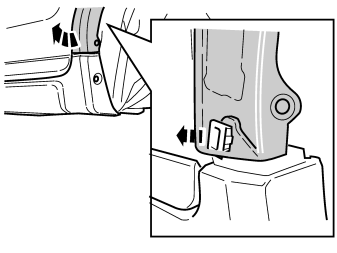

- Remove the clip holding the rear end of the door sill panel.

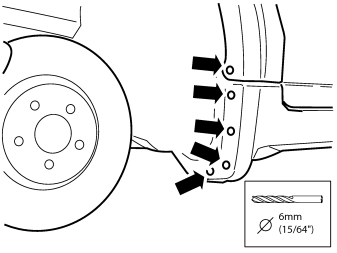

• Drill out the pop rivets at the front edge of the door sill panel and in the rear edge of the wing extender. Use a Ø6 mm (15/64") drill bit.
• Remove any swarf and rivet residue.

• Carefully turn out the lower edge/rear edge of the wing extender to make room to saw off the pin in the lower edge of the panel on the inside.

Примечание: Do not turn excessively so that the tape at the front edge detaches.

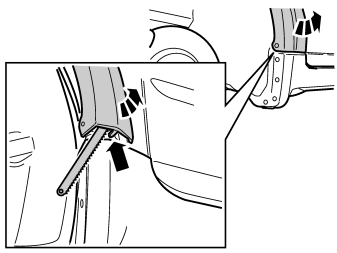

- Carefully cut off the pin on the panel. Use part of a hacksaw blade.

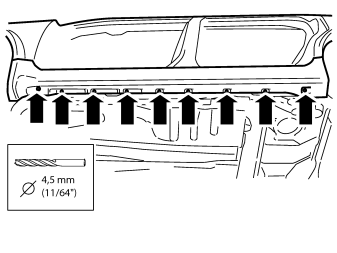

• Drill out the central pins in the clips at the lower edge of the door sill panel and remove them. Use a Ø4.5 mm (11/64")

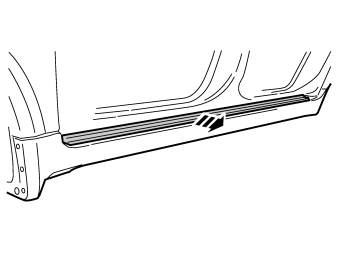

• Remove the rubber strip.

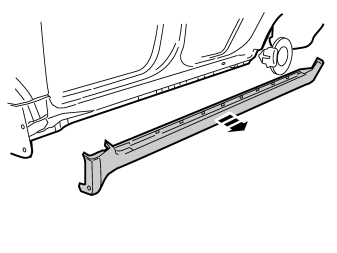

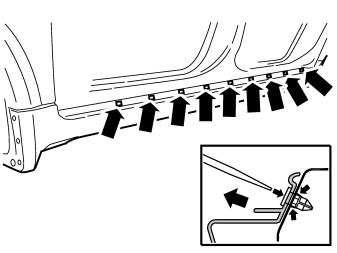

• Insert a large flat-bladed screwdriver, press the bottom of the clips and pull off the door sill panel with the clips.

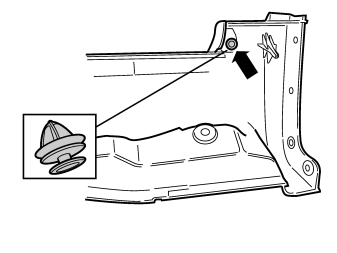

• Detach the door sill panel's front end. It is secured by a clip.

• Remove the panel from the body. It will not be reused.

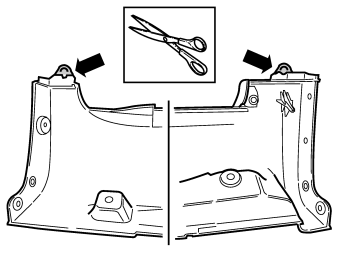

• Take a new panel from the kit. Cut off the mounting eyelets on top of the upper sides.

• Install a new clip.

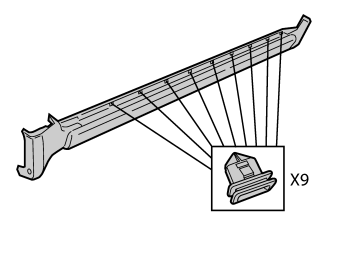

• Install new clips.

• Press the rubber strip onto the new panel.

• Align the door sill panel ends under the wing extenders.
• Press the front section clips into place.

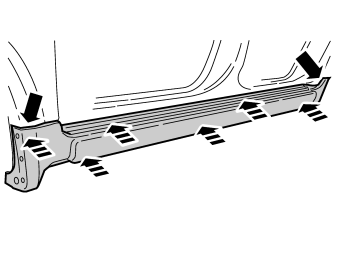

• Press the panel with the rubber strip along the body side. Ensure that all clips engage and that the rubber strip is correctly positioned.

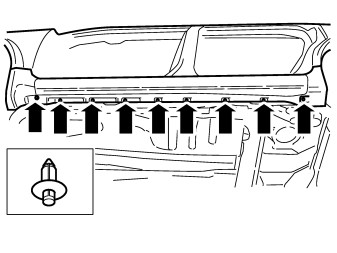

• Press the panel into place in the lower edge using new clips.

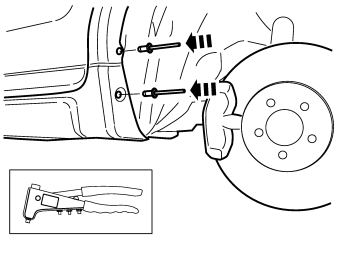

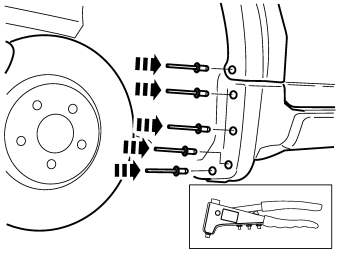

• Pop rivet the panels into place.

• Pop rivet the panels into place.

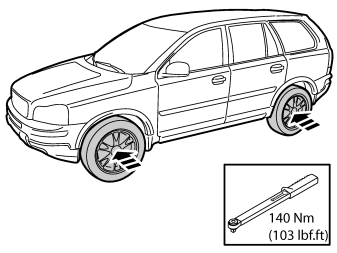

• Reinstall the front and rear wheels.
• Repeat all steps for the other side.
