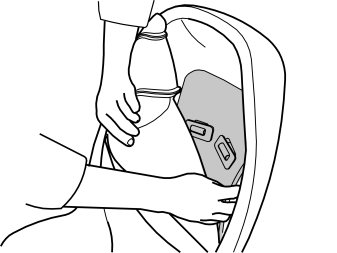

J8903440

  • Remove the seat upholstery from the side on which the strap is to be replaced.

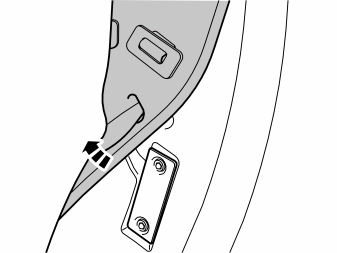

J8903437

  • Lift up the padding so that the screws are exposed.

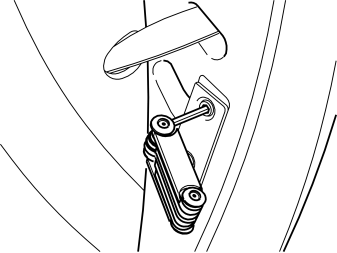

J8903435

  • Remove the allen screws.

J8903436

  • Remove the mounting bracket on the reverse of the child seat
  • Thread the eyelet on the end of the strap on to the mounting bracket
  • Reinstall the mounting bracket and the screws on the child seat. Tighten
  • Reinstall the upholstery.
