Satellite radio, Sirius (2007, 2008)

• Set the ignition key to position 0.

Примечание: Wait at least one minute before unplugging the connectors or removing other electrical equipment.

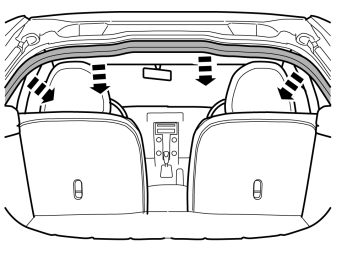

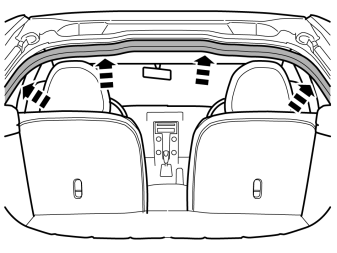

• Remove the rubber strip from the tailgate opening at the C-post panels, roof panel and right-hand side panel.

• Pull off the seat cushion, first at the rear edge where it is secured by one holder. Then at the front edge where it is secured by two holders.
• Remove the seat cushion.

• Fold the central arm rest forward.
• Remove the central arm rest by grasping each end and pulling upwards until it releases at the rear edge from the backrest's lugs (1).
• Then pull forwards until the holders (2) on the sides of the backrest have slid out of the corresponding cut-out (3) in the central arm rest.

• Fold the right-hand backrest forward.
• Remove the panel for the backrest's right-hand mounting.

• Remove the screw and the locking sleeve

• Fold the backrest away from the right-hand mounting.

Примечание: The backrest may be securely attached
- Pull it out from the mounting at the arm rest and remove it.

• Pull off the rubber molding at the rear edge of the right-hand door opening.

• Detach the right-hand B pillar panel by prying it off at the sides at the lower edge using a weatherstrip tool. It is secured by three clips on the inside.

• Unhook the safety clip from the panel.
• Angle out the panel at the lower edge, and unhook it at the upper edge so that the upper clip releases.

• Remove the screw from the right-hand panel in the rear seat.
• Carefully pull the panel from the body side and unhook it from the sill panel at the front edge. It is secured by ten clips on the inside.

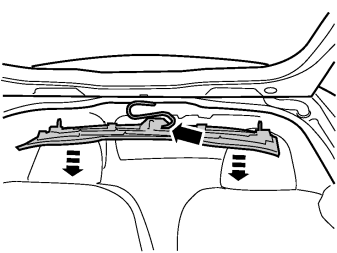

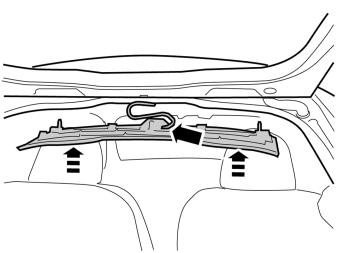

• Carefully bend loose the rear roof panel and remove it. It is fastened with nine clips.
• Unplug the connector for the interior lighting and move the panel aside.

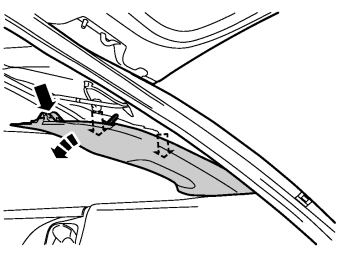

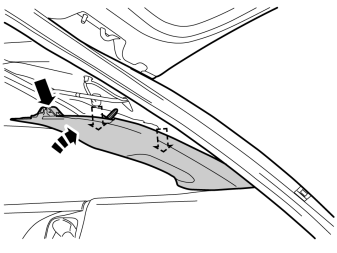

• Carefully bend loose the left and right C-post panel at the top edge and slightly angle it down. It is fastened with three clips.

• Turn the two clips 90° and remove them.

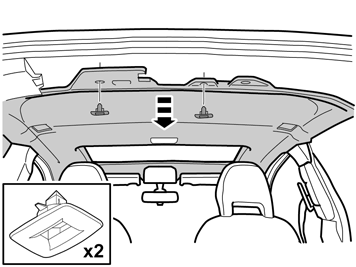

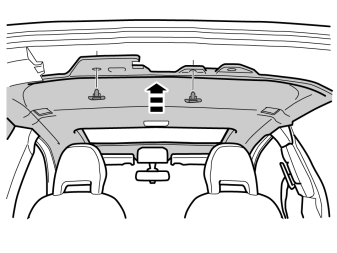

• Fold down the headlining at the rear edge to access the lower side of the area where the antenna is located.

Осторожно: When working with the headlining, ensure that there are no creases.

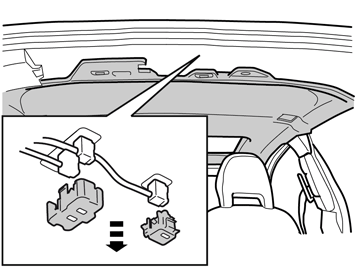

• Remove any cradles for the connectors. They will not be reused.

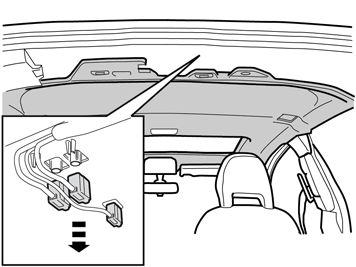

• Press in the catches at the front edge/lower edge on the connectors and disconnect them from the antenna.

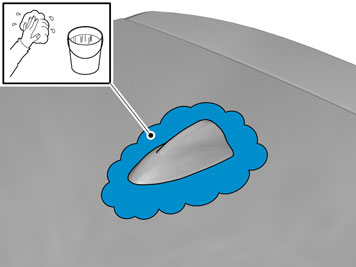

• Clean the roof around the antenna cover

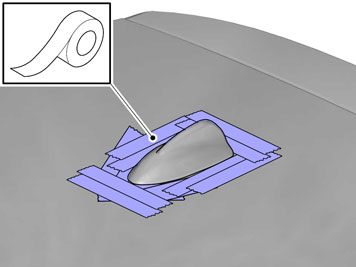

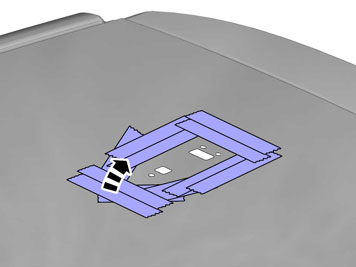

• Apply tape to the roof, around the antenna cover, to avoid paint damage when it is cut off.

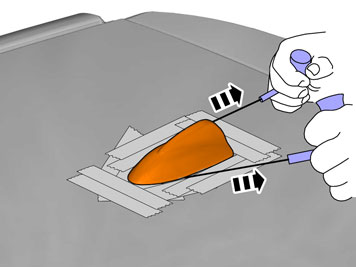

• Remove the antenna by cutting it all the way around.
• Use special tool: 9512333 Handle
• Use special tool: 1159785 Cutting wire 0.5 mm

Осторожно: Pull evenly to prevent paint damage.

Осторожно: There are three locating pins on the cover, ensure that these are not cut off.

• Remove the cover.

• Remove the antenna

• Remove the tape residue from the roof.
• Use special tool: 9512942 Circular cutting tool

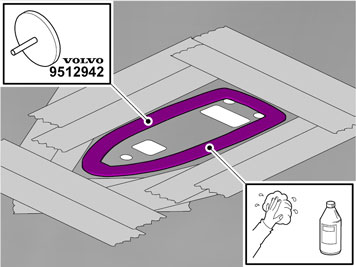

• Clean the surface of the roof where the cover is to be located.
• Use: Isopropanol
• Wipe dry

• Remove the tape residue from the cover.
• Use special tool: 9512942 Circular cutting tool

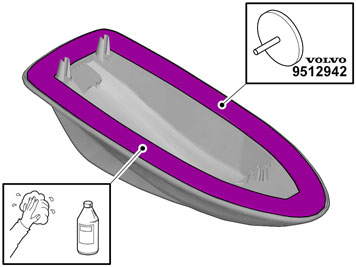

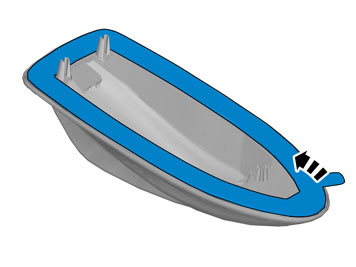

• Clean the surface of the cover where the tape is to be located.
• Use: Isopropanol
• Wipe dry

• Remove the tape

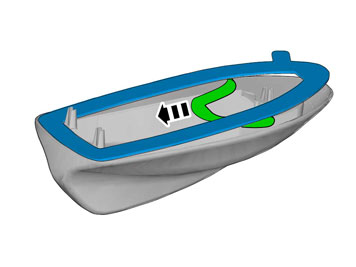

• Apply tape to the cover

• Hold the tape in position while removing the protective tape.

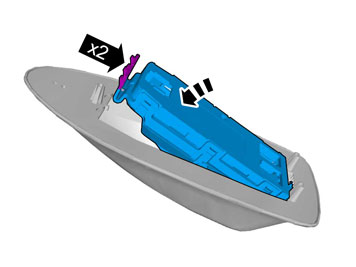

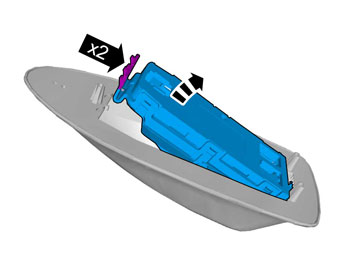

• Take the antenna from the kit. Secure the antenna in the cover. Ensure that the antenna engages properly.

• Remove the tape's protective tape.

• Align the antenna's locating pins in the corresponding holes in the roof and press the antenna into place.

Примечание: To achieve a good result, two people are needed to press the antenna into place. One of the two must press against the inside of the roof to prevent buckling when the antenna is pressed into place.

Осторожно: Maintain pressure on the antenna for at least 30 seconds so that the tape adheres properly.

Примечание: The tape must be compressed to half its original thickness for 2-3 seconds to activate the bonding agent in the tape and achieve maximum wetting of the surface that the tape is to adhere to.

• Connect all connectors color to color in the antenna. Check that the connector catches engage.

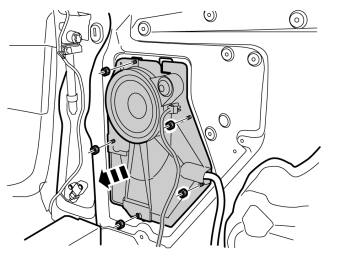

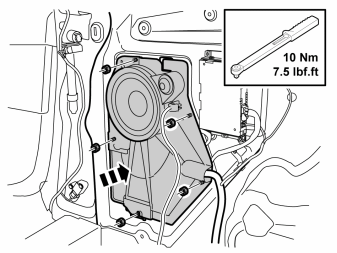

• Remove the five nuts in the speaker unit.

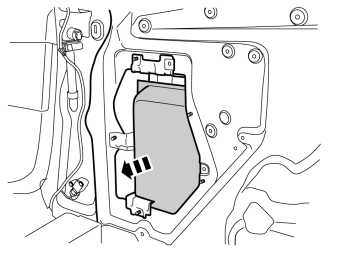

• Remove the unit. Put it to one side.

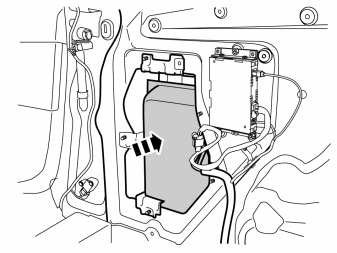

• Remove the absorbent in front of the amplifier.

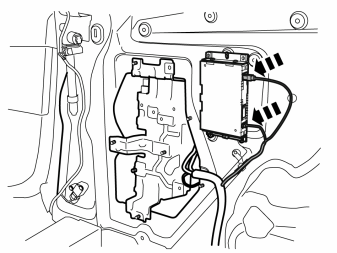

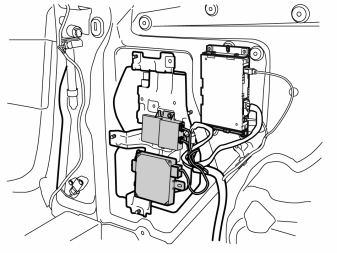

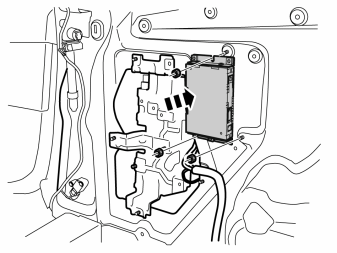

• Take brackets and receiver from the kit. Assemble as illustrated and tighten using the four screws.

• Take three nuts from the kit and tighten the receiver unit to the body. Torque tighten to 10 Nm (7.5 lbf.ft.).

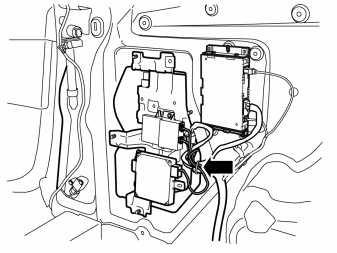

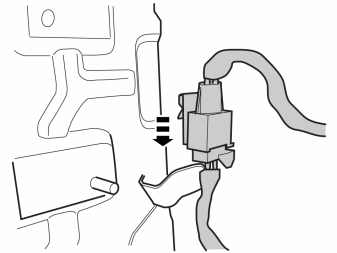

• Connect the routed connectors to the receiver, black for 12 V and gray for the antenna. They are located at the thick cable harness by the loudspeaker/amplifier.

• Disconnect the connector on the fiber-optic cable at the bottom of the amplifier.

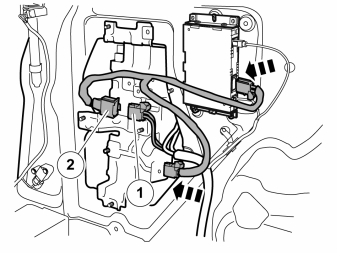

• Take the fiber-optic cable from the kit. Connect the connector on the fiber-optic cable that was disconnected from the amplifier (1) to the female connector (2) on the adapter cable.
• Connect the connector on the longer of the cable ends to the receiver and the shorter cable to the amplifier.

Примечание: The fiber-optic cables must not be bent to a radius less than 30 mm (1 3/16 ").

• Press the fiber-optic joint onto the edge of the amplifier.

If the car has GPS and/or TMC receiver, connect the fiber-optic adapter cable in the same way as before, directly to the amplifier.

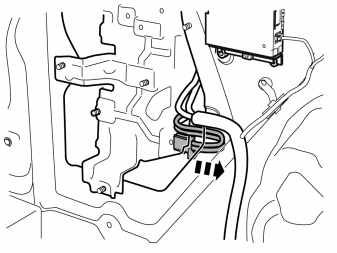

• Clamp the cable joint using cable ties at the existing cables.

Примечание: Do not damage the fiber-optic wiring.

Примечание: There are ten clips on the reverse of the panel that must engage in the body. Take care when aligning so that the clips do not break. Broken clips must be replaced with new ones.

• Reinstall the side panel by first aligning it on the sill at the front edge and then pressing it against the body side, ensure that all clips engage.
• Tighten the panel using existing screws.

• Reinstall the panel with the safety clip

• Secure the backrest in the right-hand mounting with the screw and lock pin.
• Tighten the backrest and check that it is securely in its mountings. Torque tighten the screw to 15 Nm (11 lbf.ft.).

• Reinstall the central arm rest by grasping each end, moving it up towards the backrest lugs (1) and aligning the holders (2) in the backrest's sides in the central arm rest's cut-out (3).
• Then press the central arm rest down at the rear edge so that the lugs (1) engage in the cut-out (4). A click should be heard when the central arm rest is secured.

• Download software (application Sirius sat radio) for the accessory's function according to service information in VIDA. See VIDA or accessories catalogue for article number on software.
