Safety net, nylon

Installation

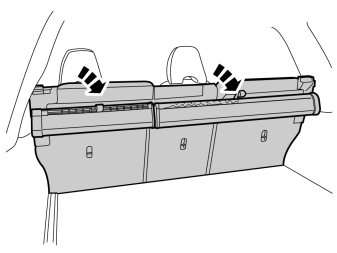

• Fold down the rear backrest.

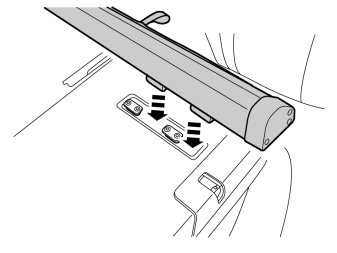

• Place the holder for the left-hand cassette (the shorter) to the left of the backrest's load retaining lugs, and position it against the backrest.

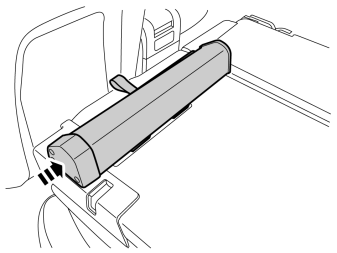

• Slide the cassette over the lugs towards the stop.

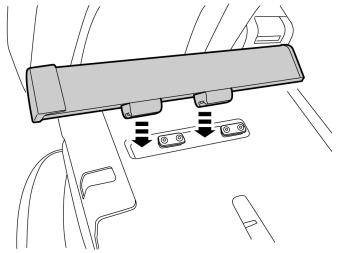

• Place the right-hand cassette's holder to the right of the backrest's load retaining lugs, and position it against the backrest.

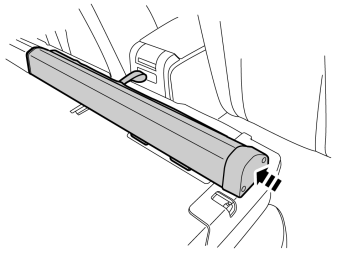

• Slide the cassette over the lugs towards the stop.

• Fold up the backrest.

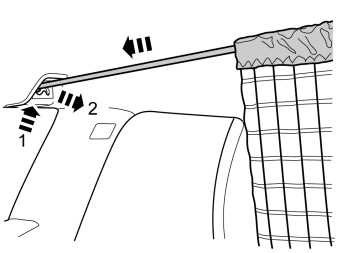

• Pull up the net for the right-hand cassette. Insert the end of the rod into the hole (1) in the mounting in the cantrail, and position the end at the front edge (2) of the mounting.

• Pull out the telescopic rod and position its left end in the mounting in the same way as for the right-hand side.

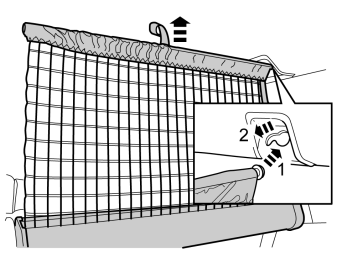

• Pull up the left-hand cassette's net and hook the net's hooks around the rod.
• Ensure that the hooks engage around the rod.
• Check that both ends of the rod are correctly positioned in the front edge of the holders in the cantrail.

Removal

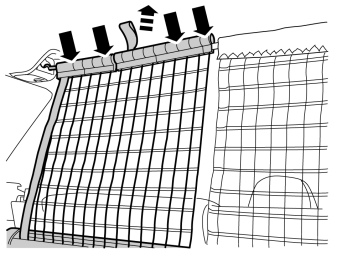

• First unhook the left-hand net from the telescopic rod and allow it to roll in. Then remove the telescopic rod's left-hand mounting from the cantrail's mounting. Press in the telescopic arm, remove it from the right-hand mounting and allow the net to roll in.
