Replacing child seat upholstery

• Remove the child seat from the car
• Turn the child seat upside down.

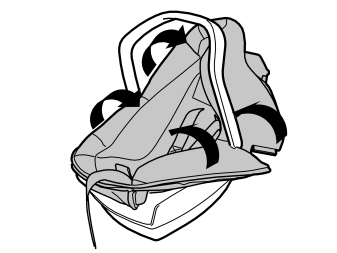

Detach the upholstery from the frame by:

• Pull up the rubber strip from the groove at the upholstery joint on both sides
• Separate the upholstery at the joints. Pull up the rubber strip from around the frame.

• Pull off the upholstery from the handle mountings at the sides.

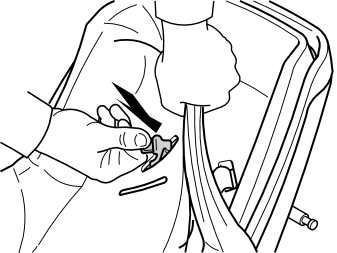

• Push the gusset belt (1), the release strap (2) and the adjustment strap (3) through the upholstery.

• Push the shoulder straps out through the upholstery.

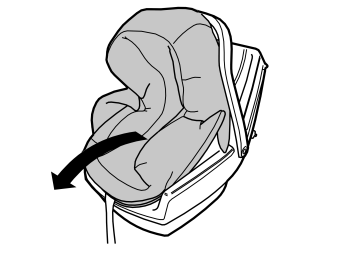

• Remove the upholstery from the child seat frame.

• Slide the new upholstery into position in reverse order.
