Rear door bass speakers (2001, 2002)

Примечание: Carry out the operation on both sides.

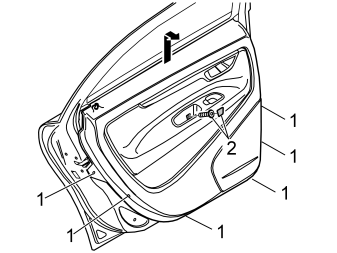

• Remove the clips (1) by pressing in the centre of the clips
• Remove the blind cover plug (2) and the screw from under the blind cover plug
• Disconnect the door panel by sliding the panel upwards and unhooking the top edge.

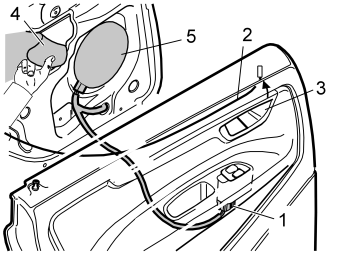

• Remove the connector (1) for the door controls
• Remove the wire (2) from the door opener (3). First bend up the catches
• Remove the panel
• Carefully remove the moisture inhibitor (4) at the front edge
• Remove the moisture inhibitor (5) covering the loudspeaker hole.

Applies to cars with existing loudspeakers

• Drill out the rivets on any existing loudspeakers. Use a Ø6 mm (1/4") drill bit
• Remove the loudspeakers and any rivet swarf from the rivet holes. Remove the rivet sections from the door if necessary.

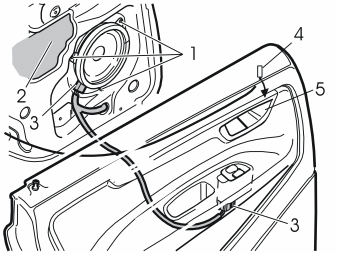

• Install the new loudspeaker. Screw the loudspeaker into place using the screws (1) and nuts (1) from the kit
• Secure the moisture inhibitor (2)
• Connect the connectors (3) to the loudspeaker and the module for the door controls
• Connect the cable (4) to the door opener (5)
• Reinstall the door panel, according to point ru-RU0900c8af80ffd95c#KC01225828.
