Применимость
| Модель | Двигатель | Год |
|---|---|---|
| S60 (-09) | — | 2001, 2002 |
| S80 (-06) | — | 1999–2002 |
| V70 (00-08) | — | 2000–2002 |
Примечание: Kit illustration A shows a radio with a small front. Kit illustration B shows a radio with a large front.

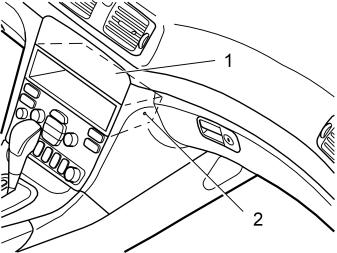

- Remove the cover (1).
Applies only to large fronted radios

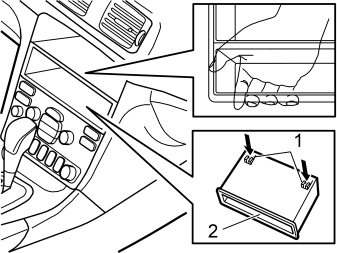

- Insert a hand. Press up the catches (1) in the lower compartment (2). Remove the compartment.
- Pull the wiring out of the radio tray.
- Connect the adapter cable from the kit between the radio and existing cable.
- Connect the antenna cable and any other wiring.

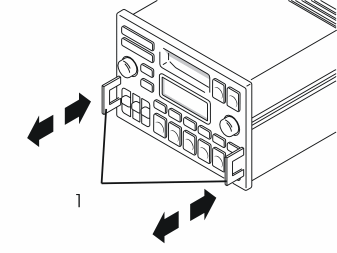

- Pull out the latch handles (1) fully.

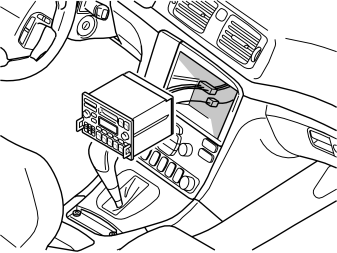

- Slide the radio into the compartment.
- Press in the latch handles to lock the radio into place.
Applies to cars which have not previously had a radio installed.
- Remove the cover (1) from the fuse holder.
- Install a 5 A fuse in socket number 15. Install a 20 A fuse in socket number 16.
- Reinstall the cover on the fuse holder.
- Program the software using VCT 2000 according to the service information in VIDA.
- Enter the radio code.
