Protective grille

Installation

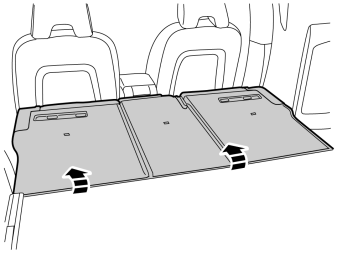

• Fold down the rear backrest.

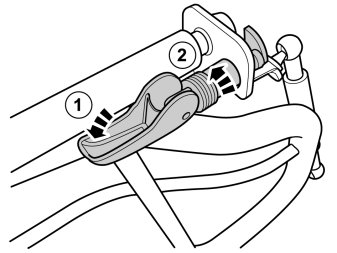

• Open the protective grille lock by turning the handle on both sides to the position illustrated.

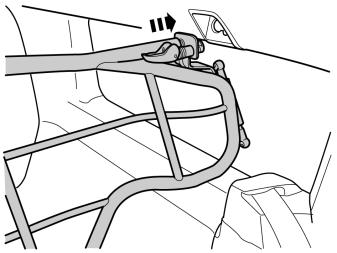

• Insert the protective grille through the right-hand door and align the left mounting of the grille in the corresponding mounting above the rear side window.

Примечание: Take care not to damage painted surfaces and headlining.
- Press in the protective grille's left-hand sprung mounting to the mounting above the side window. Align the right-hand mounting with the corresponding mounting above the right-hand rear side window.

Подсказка: It is easier to install the grille with another person.

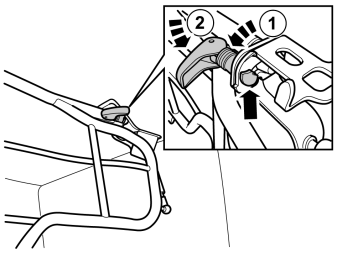

• Lock the grille into place on both sides by turning the handle downwards and pressing it to the limit position as illustrated.
• Check that the protective grille is secure in the mountings above the side windows.

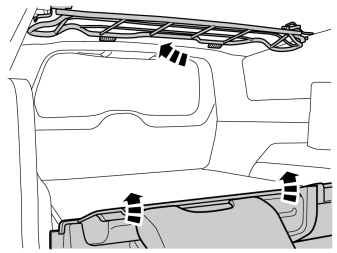

• Fold the protective grille up to the roof. Some force is required due to the gas struts.
• Fold the backrests back into place.

Removal

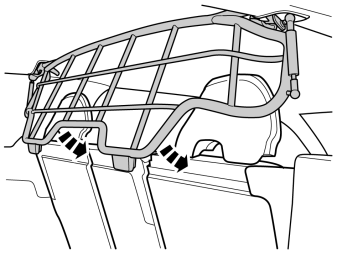

• Fold both the rear backrests forwards when removing the protective grille to relieve the load from the gas struts and to facilitate access.
• Remove the protective grille by opening the locks and pulling the grille from the mountings.
