Применимость
| Модель | Двигатель | Год |
|---|---|---|
| S60 (-09) | — | 2001–2009 |
| S80 (-06) | — | 1999–2006 |
| V70 (00-08) | — | 2000–2008 |
| V70 XC (01-) / XC70 (-07) | — | 2001–2007 |
| XC90 | — | 2003–2015 |

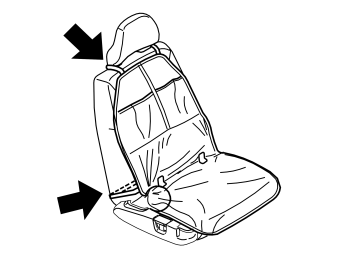

Rear facing child seat in the front seat
The protective cover can be installed on the front passenger seat when using the rear facing child seat.
- Thread the elastic straps around the head rest and the backrest of the front seat.

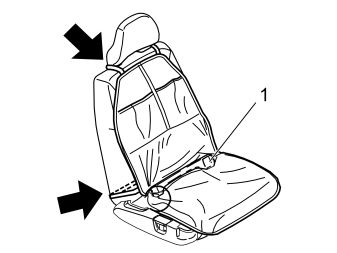

Passenger seat with Isofix
- Position the protective cover according to the previous method
- The Isofix guide (1) is inserted through the cut-out in the protective cover and secured in the Isofix mounting.
Rear facing child seat on the outer rear seat
The protective cover can be installed on the rear seat when using the rear facing child seat in the outermost position on the rear seat.
- Thread the top elastic strap around the head restraint.

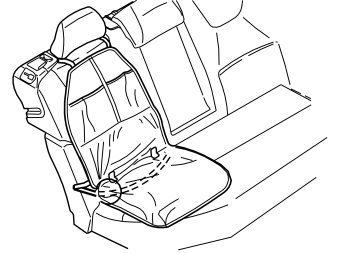

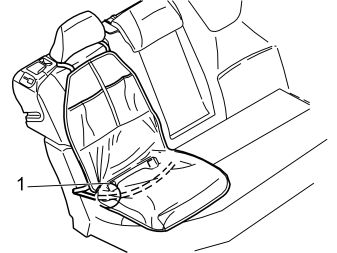

Outermost position of the rear seat with Isofix
- Position the protective cover according to the previous method
- The Isofix guide (1) is inserted through the cut-out in the protective cover and secured in the Isofix mounting.

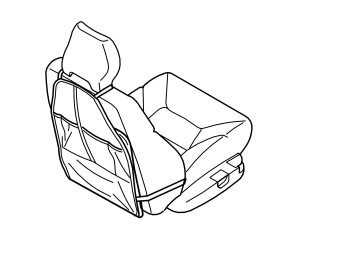

Integrated booster cushion / loose booster cushion in the outermost position in the rear seat
The protective cover can be installed on the reverse of the front seat when using the integrated child cushion / booster cushion in the outermost position on the rear seat.
- Fold the protective cover together in the centre. Secure the ends to each other using the Velcro strips (1).
- Thread the elastic straps around the backrest and the head restraint.
