Применимость
| Модель | Двигатель | Год |
|---|---|---|
| C30 | B4164S3 | 2007–2012 |
| C30 | B4184S11 | 2007–2010 |
| C30 | B4184S8 | 2007–2010 |
| C30 | B4204S3 | 2007–2013 |
| C30 | B4204S4 | 2010–2013 |
| C30 | B5244S4 | 2007–2011A |
| C30 | B5254T3 | 2007 |
| C30 | B5254T7 | 2008–2013 |
| C30 | D4162T | 2011–2013 |
| C30 | D4164T | 2007–2011 |
| C30 | D4204T | 2007–2010 |
| C30 | D5204T | 2011–2013 |
| C30 | D5204T5 | 2011–2013 |
| C30 | D5244T13 | 2008–2010 |
| C30 | D5244T8 | 2007–2010 |
| C30 | D5244T9 | 2007–2010 |
| C30 Electric | E400V1 | 2011, 2012 |
| C30 Electric | E400V2 | 2013 |
| C70 (06-) | B5244S4 | 2006–2011A |
| C70 (06-) | B5244S5 | 2006–2010 |
| C70 (06-) | B5254T3 | 2006, 2007 |
| C70 (06-) | B5254T7 | 2008–2013 |
| C70 (06-) | D4204T | 2008–2010 |
| C70 (06-) | D5204T | 2011–2013 |
| C70 (06-) | D5204T5 | 2011–2013 |
| C70 (06-) | D5244T13 | 2008–2010 |
| C70 (06-) | D5244T8 | 2007–2010 |
| C70 (06-) | D5244T9 | 2007–2010 |
| S40 (04-) | B4164S3 | 2005–2012 |
| S40 (04-) | B4184S11 | 2005–2010 |
| S40 (04-) | B4184S8 | 2006–2010 |
| S40 (04-) | B4204S3 | 2007–2012 |
| S40 (04-) | B4204S4 | 2010–2012 |
| S40 (04-) | B5244S4 | 2004–2010 |
| S40 (04-) | B5244S5 | 2004–2010 |
| S40 (04-) | B5244S7 | 2005–2010 |
| S40 (04-) | B5254T3 | 2004–2008 |
| S40 (04-) | B5254T7 | 2008–2012 |
| S40 (04-) | D4162T | 2011, 2012 |
| S40 (04-) | D4164T | 2005–2011 |
| S40 (04-) | D4204T | 2004–2010 |
| S40 (04-) | D4204T2 | 2004–2006 |
| S40 (04-) | D5204T | 2011, 2012 |
| S40 (04-) | D5204T5 | 2011, 2012 |
| S40 (04-) | D5244T13 | 2008–2010 |
| S40 (04-) | D5244T8 | 2006–2010 |
| S40 (04-) | D5244T9 | 2007–2010 |
| V40 (13-) | B4164T | 2013–2015 |
| V40 (13-) | B4164T3 | 2013–2015 |
| V40 (13-) | B4164T4 | 2014 |
| V40 (13-) | B5204T8 | 2013–2015 |
| V40 (13-) | B5204T9 | 2013–2015 |
| V40 (13-) | B5254T12 | 2013, 2014 |
| V40 (13-) | B5254T14 | 2013 |
| V40 (13-) | D4162T | 2013–2015 |
| V40 (13-) | D5204T4 | 2013, 2014 |
| V40 (13-) | D5204T6 | 2013–2015 |
| V40 Cross Country | B4164T | 2013–2015 |
| V40 Cross Country | B5204T8 | 2013–2015 |
| V40 Cross Country | B5204T9 | 2013–2015 |
| V40 Cross Country | B5254T12 | 2013–2015 |
| V40 Cross Country | B5254T14 | 2013 |
| V40 Cross Country | D4162T | 2013–2015 |
| V40 Cross Country | D5204T4 | 2013, 2014 |
| V40 Cross Country | D5204T6 | 2013–2015 |
| V50 | B4164S3 | 2005–2012 |
| V50 | B4184S11 | 2005–2010 |
| V50 | B4184S8 | 2006–2010 |
| V50 | B4204S3 | 2007–2012 |
| V50 | B4204S4 | 2010–2012 |
| V50 | B5244S4 | 2004–2010 |
| V50 | B5244S5 | 2004–2010 |
| V50 | B5244S7 | 2005–2010 |
| V50 | B5254T3 | 2004–2007 |
| V50 | B5254T7 | 2008–2012 |
| V50 | D4162T | 2011, 2012 |
| V50 | D4164T | 2005–2011 |
| V50 | D4204T | 2004–2010 |
| V50 | D4204T2 | 2004–2006 |
| V50 | D5204T | 2011, 2012 |
| V50 | D5204T5 | 2011, 2012 |
| V50 | D5244T13 | 2008–2010 |
| V50 | D5244T8 | 2006–2010 |
| V50 | D5244T9 | 2007–2010 |

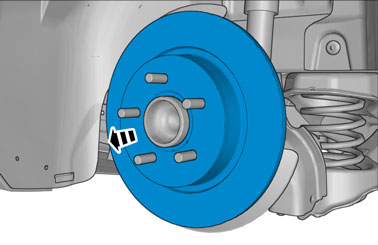

Демонтаж
Примечание: Рабочие шаги для демонтажа в этой процедуре могут также содержать информацию, касающуюся установки.
Снимите передние тормозные колодки Тормозные накладки, передние

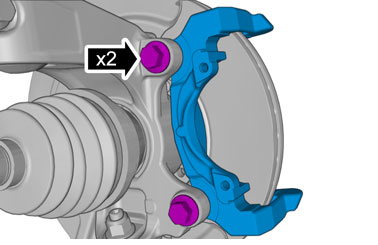

🔩 Момент затяжки: 120 Н·м

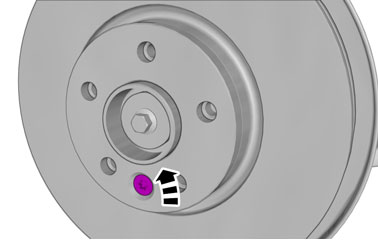

🔩 Момент затяжки: 10 Н·м
Установка
Установите в обратном порядке.
