Padded neck cushion, integrated child seat, central position

Процедура. The foam bodies must be removed when washing. See the cleaning advice on the upholstery. Lift up the head restraint.

Применимость

Модель	Двигатель	Год
S60 (-09)	—	2001, 2002
S80 (-06)	—	1999–2002

Примечание: The foam bodies must be removed when washing. See the cleaning advice on the upholstery.

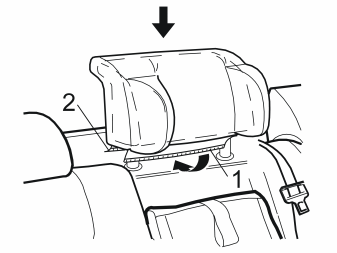

A8501219

Lift up the head restraint.
Pull the padded upholstery down over the head restraint.
Pull the lug (1) under the reverse of the lug (2). Press the lug (2) so that the Velcro strips fasten. On the 850 for example, it may be easier to pull the padded upholstery over from the bottom and work upwards.
