Net pocket, side panel (2007, 2008)

• Apply a wide piece of tape to mark the rear hole for the net pocket.

• Press two clips into the rear end of the net pocket. The buttons (1) of the net pocket must be facing outwards.

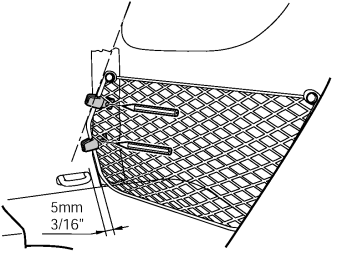

• Place the rear end of the net pocket against the rear panel as illustrated.
• Make marks through the holes in the clips and on the pieces of tape where the holes are to be. Use a pen.

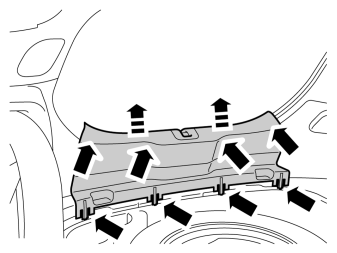

• Remove the tailgate's sill panel by pulling it up until the four clips on the upper side and the eight catches at the lower edge release.

• Check on the reverse of the panel that there are no cables in the way where the holes are to be made.
• Insert a scriber through the marked holes and press through the panel so that the holes are enlarged to approximately Ø4.8 mm (3/16"). Counterhold the reverse of the panel if necessary.
• Remove the tape strip.

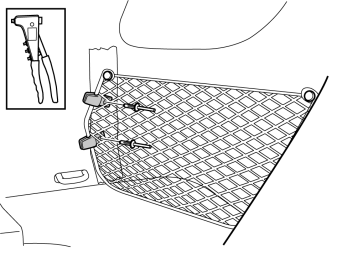

Примечание: Do not trap the net in the pop rivet when the clip is secured.

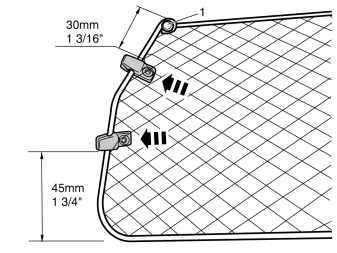

• Press the two clips into the net pocket's front end.

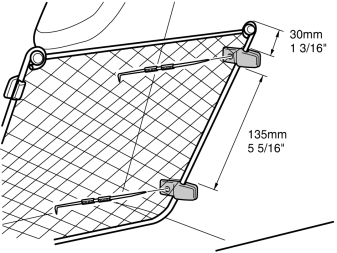

• Position the clips as illustrated.

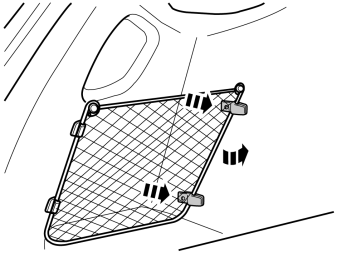

• Position the net pocket against the side panel.
• Insert a scriber through the holes in the clips and press through the panel so that the holes are enlarged to approximately Ø4.8 mm (3/16").

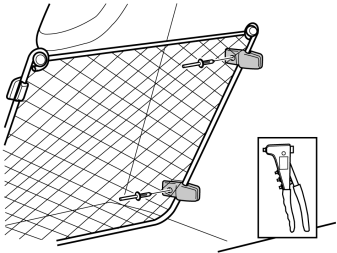

Примечание: Do not trap the net in the pop rivet when the clip is secured.
