Net pocket, cargo compartment (7 seat)

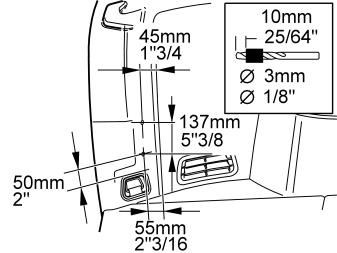

Illustration A is for making holes on the left-hand side

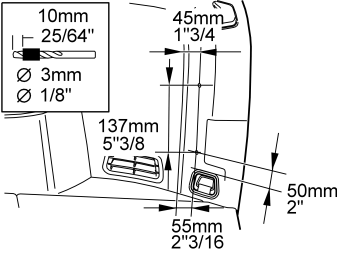

Illustration B is for making holes on the right-hand side

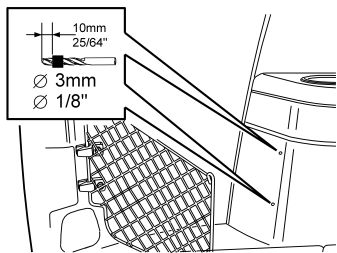

• Mark the rear edge of the left-hand side panel for holes for the net pocket. See the illustration
• Drill out the holes. Use a 3 mm (1/8”) diameter drill bit. Use a 10 mm (25/64”) drill stop
• Remove the swarf. Smooth out the hole edges if necessary.

• Take two clips and two screws from the kit. Tighten the clips horizontally in the newly drilled holes as illustrated.

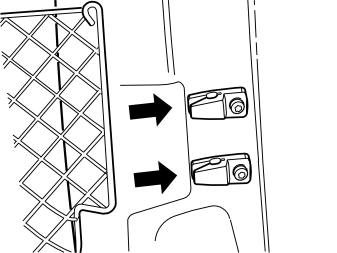

• Press the shorter face of the net pocket into place in the clips so that a snap is heard.

• Take two clips from the kit

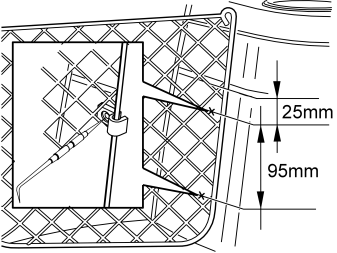

• Insert the front face of the net pocket against the side panel. Ensure that the lower face is parallel with the joint between the side floor hatch and the centre rear floor hatch
• Position the two clips as illustrated. Mark for drilling through the holes in the clips and in the panel using a ball tipped punch or press through using a scriber.

• Push the net pocket to one side
• Drill out the holes. Use a 3 mm (1/8”) diameter drill bit. Use a 10 mm (25/64”) drill stop
• Remove the swarf. Smooth out the hole edges if necessary.

• Take two screws from the kit

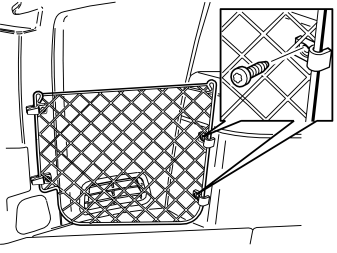

• Slide back the front face of the net pocket. Tighten to the panel using the two clips and the screws.
