Navigation system, Turn by Turn (2006, 2007)

• Turn the ignition key to position 0.
• Disconnect the battery negative lead.

Примечание: Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

• Position the steering wheel in its lowest and rearmost position.
• Remove the two screws from the surround for the combined instrument panel.

• Pull off the surround starting at the lower edge and then at the upper edge. The surround is secured by a clip at each side of the lower edge. Place the surround to one side.

• Carefully prize off the panel at the rear edge of the centre console. Use a weatherstrip tool. The panel is secured by two clips on each of the short sides.
• Move the panel to the side to access the two screws underneath.

• Remove the two screws.

• Open the glovebox.
• Carefully prize off the panel inside the centre console. Use a plastic weatherstrip tool. The panel is secured by two clips on each of the short sides.
• Pull the panel away downwards.

• Detach the surround around the display and the media player: Press in the catch at the edge of the media player cover. Use a small screwdriver. Carefully prize off the surround at the corner. Use a plastic weatherstrip tool.

Примечание: Do not damage the panel and dashboard.

Repeat the operation on the other side.

Подсказка: If the other side does not detach, press the detached side into position again and repeat the procedure, beginning from the other side.
- Fold the surround backwards. Remove by pulling upwards.

• Press out the display module (1) from the reverse of the centre console. Use both hands and press straight back.
• Disconnect the two connectors. Put the display to one side.

• Remove the two screws holding the centre console to the dashboard.
• Remove the connector on the reverse of the dashboard environment panel.
• Remove the centre console from the dashboard and tunnel console.

• Remove the two clips securing the cables to the media player by first pressing them to the sides and then pulling them away downwards.

Примечание: Be careful with the optic cables so that they are not bent or stretched.

• Remove the two screws from the bottom of the media player.
• Pull out the media player. Disconnect the connector on the reverse side.

Примечание: Note how the wiring is packed on the reverse side. The fibre optic cables are easily damaged and must not be bent to a radius less than 25 mm (1 ¾").

• Angle up both air vents.

• Grip the air vent, press it out and pull it up.
• Do the equivalent to the other air vent.

Illustration A

• Insert a scriber and push up one of the catches in the lower edge of the air vents' housing.
• Insert the tool P/N 9995919 in the space which is opened and pull out until the catch releases.
• Repeat this until all catches in the lower edge have released.

Illustration B

• Grip the ends of the housing and pull out until all catches on both the top and bottom are fully free from the inside of the dashboard. If necessary, use a weatherstrip tool to prize out the ends of the housing.

Примечание: Do not damage the dashboard.

Примечание: Pull alternately on the right and left-hand sides, otherwise the edge of the housing will crack where it enters the air ducts on the inside. The housing is secured firmly so force will be required to release it.

• Remove the panel on the right-hand end of the dashboard. Carefully prize off the panel until the three clips release. Use a weatherstrip tool.

Примечание: Do not damage the dashboard.

• Detach the clip holding the vent from the glove compartment.

• Remove the rubber mat from the glovebox.
• Remove the screws, x 5, in the glovebox opening.
• Pull the glovebox straight back in the vehicle in order to release the hidden clips, x 2, in the top edge.
• Remove the outer section of the glovebox.

• Detach the connectors on the top.

• Remove the screw for the vent on the right-hand side. Pull off the vent to the right. Place to one side.

• Remove the four screws to the inner section of the glovebox and pull it out. Place it to one side.

Applies to cars with integrated telephone and where the traffic message (TMC) control module shall be installed.

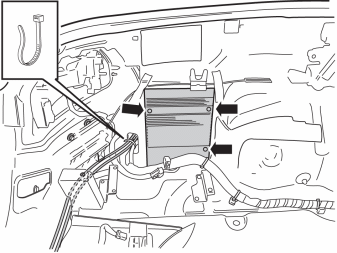

• Remove the screws in the phone module (PHM). Remove the control module, detach the connector on the rear side and place it to one side.

• Fit the support legs of the bracket from the kit into the socket for the surround of the combined instrument panel and in the left-hand air vent.
• Position the left-hand support leg of the bracket as illustrated. The front edge of the support leg must be parallel with the edge in the cut-out in the dashboard and the measurement to the bottom edge of the support leg must be taken from the centre of the radius.
• Mark out the holes to be drilled for the mounting.

• Drill out the holes using a Ø5 mm (13/64") diameter drill bit. Use a 10 mm (25/64") drill stop to prevent damaging the components on the inside.
• Remove any swarf.

• Secure the left-hand support leg of the bracket to the dashboard using two screws and the mounting plate (located on the inside) from the kit.

• Drill out the hole for the right-hand support leg using a Ø4 mm (5/32") diameter drill bit. Use a 10 mm (25/64") drill stop.
• Take a screw from the kit and secure the right-hand support leg.

Applies to cars without loudspeaker grilles

• Tape the drilling template from the kit to the dashboard so that the angles in the lower edge of the template are edge to edge with the upper edge of the air vents, and the template is centred between them.
• Cover the holes in the air ducts on the inside so that the swarf from the drill cannot enter.
• Mark up and drill the holes, Ø10 mm (25/64") and Ø16 mm (5/8"), in accordance with the information on the template. Use an angle drilling machine, and keep it at right-angles to the dashboard. Use a 25 mm (1") drill stop on the 10 mm (25/64") diameter drill bit, so that the air ducts are not penetrated.
• Remove the drill swarf and the covering over the air ducts.
• Remove the drilling template.

Applies to cars with loudspeaker grilles

Illustration A

• Remove the loudspeaker grille as follows: insert the tool, P/N 999-5919-46, into the joint between the loudspeaker grille and the dashboard approximately as illustrated, until it engages.
• Twist the tool 90° so that the bent section engages with the underneath of the loudspeaker grille.

Illustration B

• Pull upwards until the loudspeaker grille detaches. The loudspeaker grille is securely fastened by five clips. Move the tool closer to the clips to facilitate removal.

Примечание: Do not damage the dashboard.

Applies to cars with loudspeaker grilles

• Mark out the holes on the underside of the loudspeaker grille using a scriber as illustrated. Drill out the holes in accordance with the specified dimensions. The centre for the Ø10 mm (25/64") holes and the Ø20 mm (25/32 ") hole (1) is in the centre of the hexagon. The centre for the Ø20 mm (25/32") hole (2) is slightly below the edge of the hexagon. Drill the Ø20 mm (25/32") holes from the top of the loudspeaker grille.

Примечание: Do not damage the loudspeaker grille.
- Smooth down the hole edges.

• Take the long cable with yellow connector and the bracket for the screen from the kit.
• Insert the yellow connector into the hole in the bracket, route through the cable and position the black connector in its socket.

• Detach the screw plate away from the other installation components of the screen bracket.

• Take the connector screw plate. Fit it in the rectangular cut-out on the underside of the bracket so that the semi-circular recess for the cable points forward as illustrated.

• Take two small self tapping screws from the kit and tighten the connector into the bracket.

Applies to cars without loudspeaker grilles

• Guide down the yellow connector into the dashboard in the centre of the three holes which are in line with each other.

Applies to cars without loudspeaker grilles

• Fit the two screw plates from the kit on the underside of the dashboard.
• Take three screws from the kit, L = 30 mm (1 3/16") X 2 front and L = 20 mm (25/32" ) rear. Tighten the screen bracket into the dashboard.

Примечание: Re-tighten the screws at the next service interval.

Applies to cars with loudspeaker grilles

• Guide down the yellow connector into the loudspeaker grille in the right-hand hole of the three holes and route through the cable.

Applies to cars with loudspeaker grilles

Illustration A

• Detach the two screw plates from each other.
• Fit the larger of the two screw plates on the underside of the loudspeaker grille. (The remaining small screw plate shall not be used.)
• Take two screws (L= 20 mm (25/32") from the kit and tighten the screen bracket into the dashboard.

Illustration B

• Insert the cable in the dashboard in the hole in the bracket to the loudspeaker. Press in the loudspeaker grille.

• Route the cable from the screen bracket to the right, past the compartment for the media player, down to the hole (1) where the detachable air duct was located. Continue to route the cable forward inside the cover and out where the glovebox was located.
• Reinstall the air vents.

• Fold down the roof.

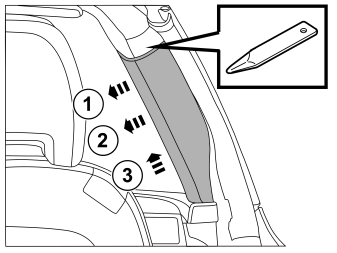

• Remove the A-pillar panel on the right and left-hand sides.

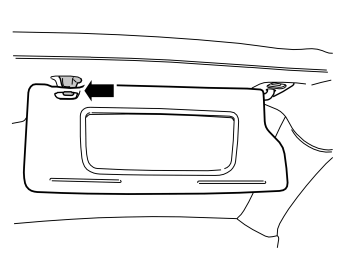

• Fold down the sun visors and unhook them from their mountings.

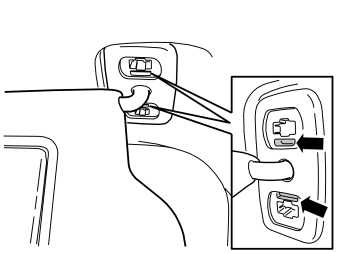

• Remove the locking plugs using a small screwdriver.

• Guide up a large screwdriver to release the expander clips. Pull the sun visor mounting down so that it detaches. Note the cable routing for the sun visors. Allow the sun visors to hang right down.

• Using a screwdriver, lift up the catch for the sun visor's centre attachment. Prize the attachment away at the front edge using a weatherstrip tool.

Примечание: Before removal, note the position of the sealing strip at the top edge against the panel, and the cable routing for the sun visors.

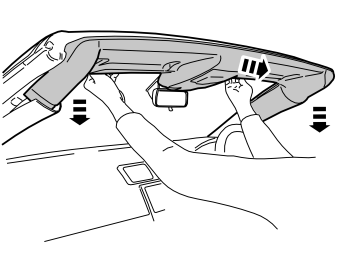

• Pull the panel straight down until the clips, x 4, detach and then pull it straight back.
• Unplug the connectors.

• Cleaned the marked surface around the black frame on the inside of the windscreen where the antenna strip shall be located. Use the cleaning cloth from the kit. Wipe dry.
• Heat the windscreen where the antenna strip shall be adhered using a hot-air gun to 45°C (113°F), in order to obtain the best possible adhesion.

• Remove the protective backing tape on the transparent antenna strip from the kit.

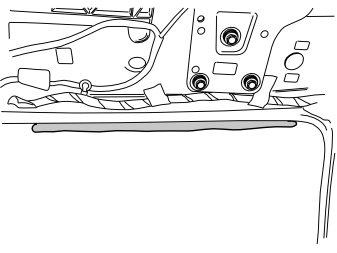

• Press in the antenna strip centred on the right-hand section of the windscreen, edge to edge with the black edge of the windscreen. The straight edge of the antenna strip must be turned toward the roof. Press it in firmly so that bubbles are not formed.

• Take the antenna box with cables from the kit. Cut off the whole of the bar at the innermost marking as illustrated.

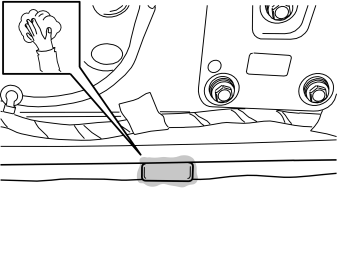

• Clean the rectangular contact surface on the antenna strip.

• Remove the protective backing tape from the antenna box.

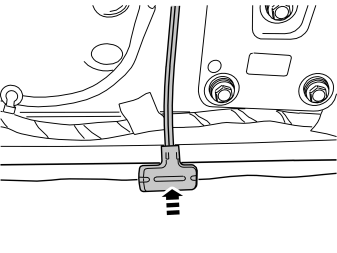

• Press the antenna box in centred on the rectangular contact surface. The cable and the thick protruding section must point upwards. Press firmly so that it adheres.

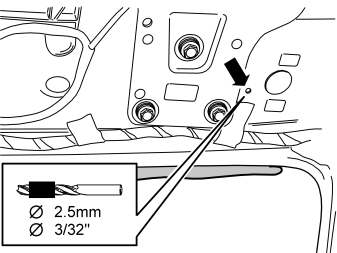

• Drill a Ø2.5 mm (3/32") diameter hole for the antenna's ground lead.

Примечание: Use a drill stop to avoid drilling through the roof.

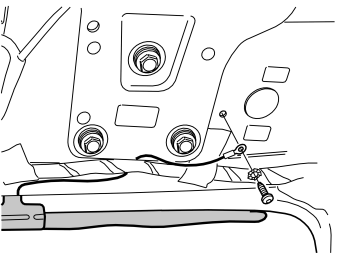

• Route the ground cable to the drilled hole. Take a toothed washer and screw from the kit and tighten in the ground cable.

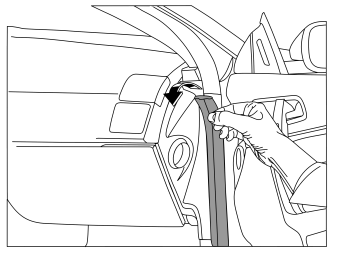

• Pull the strip away down to where the sill starts.

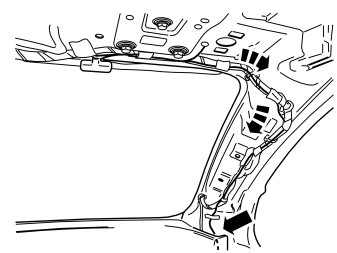

• Route the cable along the existing cable harness away to the right-hand A-pillar and down to the dashboard.

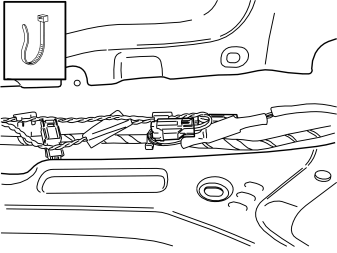

• Secure the cable at the existing cable harness using tape.

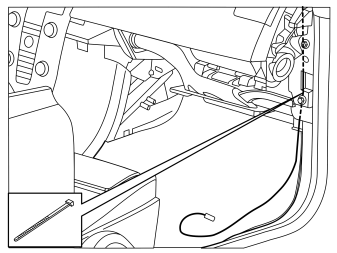

• Route the cable by the dashboard and on to the area inside where the glovebox was located.

• Remove the roof panel clips and reinstall the roof panel temporarily.
• Mark out on the panel where the antenna box is located.
• File/cut a cut-out in the roof panel.

Reinstall:

• the clips on the roof panel
• the roof panel with sun visors
• the A-pillar panels.

• Angle up the left-hand air vent.

• Grip the air vent, press it in and pull it up.

Illustration A

• Insert a scriber and push up one of the catches in the lower edge of the air vents' housing.
• Insert the tool P/N 9995919 in the space which is opened and pull out until the catch releases.
• Repeat this on the other catch in the lower edge.

Illustration B

• Grip the ends of the housing and pull out until all catches on both the top and bottom are fully free from the inside of the dashboard. If necessary, use a weatherstrip tool to prize out the ends of the housing.

Примечание: Do not damage the dashboard.

Примечание: Pull alternately on the right and left-hand sides, otherwise the edge of the housing will crack where it enters the air ducts on the inside. The housing is secured firmly so force will be required to release it.

• Take the larger of the pieces of double-sided adhesive tape from the kit and cut it into two equal pieces.

• Clean the two marked surfaces on the front part of the air vent using isopropanol P/N 1161721. Wipe dry.

• Take the GPS antenna from the kit and clean the two marked surfaces on the underside using isopropanol P/N 1161721. Wipe dry.

• Remove the protective backing tape from one side of the two pieces of tape.

• Firmly press in the two pieces of tape on the underside of the GPS antenna.

• Remove the last piece of protective backing tape from the two pieces of tape.

• Firmly press in the GPS antenna on the front part of the air vent.

• Fit the air vent with the cable in place in the dashboard and press in. The top of the GPS antenna may offer a little resistance in the top edge of the cut-out.

Illustrations A and B

• Route the cable from the GPS antenna to the right in front of the driver information module (DIM), past the compartment for the media player, down to the hole (1) in illustration B, where the detachable air duct was located. Continue to route the cable forward inside the cover, and then out where the cable to the screen was routed.
• Secure the cable at the driver information module (DIM) using pieces of butyl tape.
• Reinstall the combined instrument panel surround.

• Take the TMC unit from the kit and clean the marked surface on the underside using isopropanol P/N 1161721. Wipe dry.

• Take the two long Velcro fasteners from the kit and press them together.

• Cut the Velcro fasteners into two equal pieces.

• Remove the protective backing tape from one side of the Velcro fasteners which were pressed together.

• Firmly press in the Velcro fasteners on the underside of the TMC unit.

• Take the holder to the adapter connector from the kit and press/twist in at the rear edge of the TMC unit.

• Take the adapter connector from the kit and press in the connector into the rear edge of the TMC unit.

• Take the long cable harness from the kit and plug the white connector into the rear edge of the TMC unit.

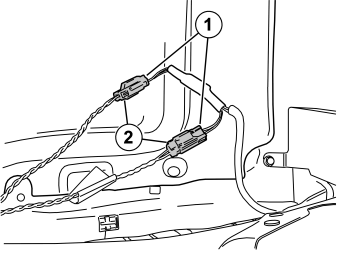

• Connect the routed cable from the antenna in the windscreen to the adapter in the rear edge of the TMC unit.

• Take the red crimping sleeve from the kit. Join the single cables from the white connector and the connector to the antenna in the rear edge of the TMC unit, in accordance with steps 78-80.

Splicing with insulated damp-sealed crimping sleeve

Illustration A

Select a suitable crimping sleeve according to the cables' area in accordance with the table:

Illustration B

• Strip both cable ends in accordance with the above table. Use stripping pliers, P/N 9512620.

Pressing the sleeve

Illustration A

• Fit the red crimping sleeve in the press tool P/N 9512785. Select the socket as per colour coding. Clamp the pliers together slightly, but only so that the crimping sleeve remains in the pliers.
• Insert the cable in the crimping sleeve until it reaches the stop.

Примечание: Make sure that the cable insulation does not come into the press area of the sleeve or that the stripped part or the cable extends outside of the sleeve.

Illustrations B and C

• Press the legs of the pliers completely together to ensure a proper splice. The pliers will then release automatically.
• With your hand, check that the crimping sleeve is securely in place.

Heating the crimping sleeve

Illustrations A and B

• Place a suitable shield behind the cables to be crimped to prevent thermal stress to the surrounding area.
• Warm the sleeve with a hot air gun, P/N 9512777, and suitable nozzle. It is extremely important that the crimping sleeve be securely crimped around the cable. You should be able to see that a little bit of glue has been forced out around the cable. (Illustration B).

• Clean the marked surface on the underside of the air duct using isopropanol P/N 1161721. Wipe dry.

• Remove the protective backing tape from the double Velcro fasteners on the TMC unit.

• Guide the TMC unit with the connectors pointing forward up toward the underside of the air duct. Position it so that it does not press against surrounding components, and firmly press it in.

Applies to cars with integrated telephone:

• Reinstall the phone module (PHM) on the underside.
• Torque tighten the two screws to 10 Nm (7.5 lbf.ft.).

Applies to cars with internal amplifier

• Take the adapter cable (1), P/N 30737807, with two small, two large grey and two black connectors from the kit.
• Applies to cars with TMC unit: Plug the two small grey connectors (2) into the corresponding grey connectors (3) in the cable harness from the TMC unit.
• Applies to cars without TMC unit: Take the long cable harness from the kit. Plug the two small grey connectors (2) from the adapter cable into the corresponding grey connectors (3) in the long cable harness.

Applies to all models

• Detach the 32-pin connector in the central electronic module (CEM) by first moving the connector's brace (A) backward, and then detaching the connector (B) upward.

• Remove the secondary catch on the connector by first prizing out both catches at the short sides, and then remove the catch upward. Use tool P/N 9512639.

• Remove the cable from position 20 (only certain car models have this cable connected) by carefully inserting the tool, P/N 9512639 as illustrated, and then disengaging the primary catch while pulling out the cable.

• Dismantle the 4-pin loose black connector from the adapter cable, P/N 30737807. Remove the connector's secondary catch by first prizing out the two catches at the short sides and then pulling the catch outward.

• Plug the cable previously detached from position 20 in the 32-pin connector into position 2 on the loose 4-pin black connector.

• Install the loose short insulated black/white (SB/W) cable for the speed signal on the adapter cable (P/N 30737807) in the 32-pin connector, instead of the one previously removed from position 20.

• Remove the cable from position 5 (only certain car models have this cable connected) by carefully inserting the tool, P/N 9512639 as illustrated, and then disengaging the primary catch while pulling out the cable.

• Plug the cable previously detached from position 5 in the 32-pin connector into position 1 on the loose 4-pin black connector.

• Install the loose short insulated green/brown (GN/BN) cable for the reversing signal on the adapter cable in the 32-pin connector, instead of the one previously removed from position 5.
• Reinstall the secondary catch.

Illustration A

• Take the red (R) crimping sleeve from the kit.
• In accordance with steps 78-80, splice the black/white (SB/W) cable in position 3 from the 4-pin connector (illustration B), together with the long black/white (SB/W) cable in the routed cable harness.

Illustration B

Applies to cars with internal amplifier

• Cut off unnecessary excess from the long black/white (SB/W) cable before splicing.

• Press out and remove the secondary catch on the large black male connector in the routed cable harness.

• Take the short cable with cable terminal (1) from the kit and press it into position (A) in the connector.
• Reinstall the secondary catch.

• Cut off the existing cable terminal on the long brown (BN) cable to ground in the routed cable harness.
• Splice the cable together with the cable in position A in step 96, with the red (R) crimping sleeve from the kit.

• Plug both large black connectors from the routed cable harnesses into each other.

• Plug the two 4-pin black connectors into each other.
• Reinstall the 32-pin connector in the central electronic module (CEM).

• Take the CD drive from the kit. Remove the screw to the adapter, and remove the adapter on the side of the CD drive. Do this on both sides. The parts shall not be used again.

• Take the rubber spacer from the kit and install it on the CD drive.

• Take the bracket from the kit and install it on the CD drive.

• Take two small screws from the kit and tighten the bracket into the CD drive.

• Attach the yellow (1) connector from the screen to the green connector (2) on the routed cable harness.

• Take the new inner glovebox section from the kit. Insert the brown (1), black (2) and multi-coloured (3) connector, and the cable with the blank connector (4), through the hole in the rear edge of the glovebox section.

• Take the CD drive with bracket and plug in the connectors:

• Fit the CD drive in the inner section of the glovebox with the hooks (1).

• Fit the inner section of the glovebox in its correct position.
• Take the screws (1) previously removed and tighten in both the CD drive bracket and the glovebox section.

• Route the cable harness with the two large grey connectors down in front of the central electronic module (CEM), inside the carpet to the left, along the right-hand side of the centre console, up along this and out where the media player was fitted. The whole of the excess length of cable with the long foamed cable harness shall be located inside the carpet on the right-hand side of the centre console.
• Bind in the loose connectors and fuse holder with foam tape from the kit to avoid rattling.

Applies to right-hand drive cars

Illustration A

• Detach the secondary catch on the grey connector in the cable harness which was routed up in the previous step, press the catch down in the centre of the lower edge and pull the catch out against the stop. Use the tool, P/N 9512639.

Illustration B

• Remove the catch by pressing it down in the centre of the top edge until the small lug on the top is free, and prize it out.

Applies to right-hand drive cars

Illustration A

• Remove the cables from position 4, yellow (Y), and position 5, grey (GR). Carefully insert the tool, P/N 9512639 as illustrated, detach the primary catch and at the same time pull out the cables.

Illustration B

• Change places on both cables so that the positions are as illustrated.
• Reinstall the secondary catch.

Illustration C

• Remove the cables from position 11, yellow/red (Y/R), and position 12, grey/red (GR/R), in the same way as in step 107A above.

Illustration D

• Change places on both cables so that the positions are as illustrated.
• Reinstall the secondary catch.

Applies to right-hand drive cars

• Remove the secondary catch on the grey female connector. Carefully prize out the catches at the sides and move them forward. Pull out the catch.
• Now change positions on the same cables in the connector, as those in the previous steps for the male connector (4-5, 11-12).
• Reinstall the secondary catch.

Applies to all models

• Connect the grey connector (1) in the routed cable harness to the corresponding socket in the media player.
• Connect the grey connector (2) in the routed cable harness to the grey connector (3) which was detached from the media player.
• Plug the remaining connectors which where detached into the media player.
• Reinstall the media player and secure it.

• Remove the sill trim panel at the right-hand front door. First pull off the front edge of the sill trim panel so that the clip releases. Then continue backward until the remaining clips on the underside have released.

• Remove the centre section of the rear seat backrest.

• Detach the two rear backrests by gripping them at the top and pulling forward/up.

• Detach the seat cushion by gripping the front edge and pulling it forward.

• Remove the screw and the rear sill trim panel.
• Fold up the roof.

• Open the boot lid/tailgate.

• Lift up the cargo compartment divider.

• Remove the covers on each side of the divider.

• Unscrew the two nuts on each side of the divider four turns.

• Lower the divider slightly.
• Unscrew the third nut on each side of the divider four turns.

• Lower the divider completely.

• Detach the wire frame from the clip.

• Use a cable tie or the like to lock the divider's two arms on the right and left side.

• Remove the partition by taking hold of the arms and lifting upward.

Remove:

• the cover on the tool box
• the spare wheel, if in place.

• Take the tools out of the toolbox.

Remove:

• the clip.
• the screw.
• the toolbox.

• Remove the three screws and the cargo lashing eyes from the floor.

• Remove the cover for the tailgate stop, by prying between the cover and the stop using a weatherstrip tool, so that the hooks release. Carry this out on both the left and right-hand sides.

• Remove the two lamps by using a screwdriver to press in the two catches at the top edge.

For cars with emergency release handle in cargo compartment

• Remove the emergency opening handle by pressing out the pin at the eye and unhook the wire.

• Remove the two screws in the sill moulding.

• Remove the sill protection by pulling it up until the clip releases. Fold the sill protection to the side.

• Remove the cargo compartment carpeting.

• Remove the rubber stop on the roof's stop bracket on both the right and left-hand sides.

• Mark out the stop bracket for the roof in relation to the screw.
• Remove the screw and the roof's stop brace.
• Carry out on both the left and right-hand sides.

• Remove the lock for the load divider by prying between the mat and lock using a weatherstrip tool. Carry this out on both the right and left-hand sides.

• Remove the screws and the cargo lashing eyes on both the right and left-hand sides.

• Remove the cover for the stop bracket on both the left and right-hand sides.

• Mark out the stop brackets for the roof in relation to the screw and the nut.
• Remove the screw, nut and the roof's stop braces.
• Carry out on both the left and right-hand sides.

• Detach the four clips on the side panels on both the right and left-hand sides.

• Remove the side panels on both the left and right-hand sides, by unhooking them from the stop lugs at the front edge and then pulling them outwards and upwards so that they release from the weatherstrip.

• Route the cable harness with the two grey connectors and the attached thin single cable, from the area for the glovebox. The black/white (SB/W) single cable is attached to the connector in step 88, and must be routed along as far as possible. Route the cable between the floor carpet and sill. Locate the cable so that it is not trapped or damaged.

• Route the cable along the existing cable harness backwards and into the cargo compartment.
• Route the cables inside the floor carpets and back towards the amplifier in the left-hand rear wheel arch. Route the cables along the existing cable harnesses in the cargo compartment.

Осторожно: Ensure that the cable is positioned so that there is no risk of it catching or rubbing.

Applies to right-hand drive cars

• Take the adapter cable, P/N 30752743, with two large green and two grey connectors from the kit.
• Remove the connector's secondary catch on the male connector in accordance with step 110.
• Remove the cables from position 1, grey/red (GR/R), and position 3, yellow/red (Y/R). Carefully insert the tool, P/N 9512639 as illustrated, detach the primary catch and at the same time pull out the cables.

Applies to right-hand drive cars

• Change places on both cables so that the positions are as illustrated.
• Reinstall the secondary catch.

Applies to right-hand drive cars

• Remove the cables from position 9, grey (GR), and position 11, yellow (Y). Carefully insert the tool, P/N 9512639 as illustrated, detach the primary catch and at the same time pull out the cables.

Applies to right-hand drive cars

• Change places on both cables so that the positions are as illustrated.
• Reinstall the secondary catch.

Applies to right-hand drive cars

• Remove the secondary catch on the large green female connector. Carefully prize out the catches at the sides and move them forward. Pull out the catch.
• Now change positions on the same cables in the connector, as those in the steps above for the male connector (1-3, 9-11).
• Reinstall the secondary catch.

Applies to cars with subwoofer amplifier

• Remove the subwoofer amplifier by removing the screws and unplugging the connectors.

Applies to all models

• Detach the cable harness from the weld screw.

• Remove the screw and the two nuts.
• Lift the amplifier forward.

• Unplug the green connector.

• Take the adapter cable with the two small connectors and thread them through the hole into the cargo compartment.

• Connect the adapter cable to the amplifier as follows:
• To prevent rattling, secure the detached connector to the car's existing cable harness with tie straps.

• Secure the cables at the lead-through with a tie strap. Route the cables on along the car's normal cable harness.
• Reinstall the amplifier with nuts and screws, tightening torque: 10 Nm (7 lbf.ft.).
• Reinstall the cable harness on the weld screw.

• Plug the two grey connectors (1) in the previously prepared adapter cable, into the corresponding grey connectors (2) in the routed cable harness.

• Clamp the connectors to the existing cable harness.

• Take the screen from the kit and press it in on the connector/holder.

Illustration A

• Clean the rear side of the holder for the remote control using isopropanol. Wipe dry.

Illustration B

• Clean the front of the bracket using isopropanol. Wipe dry.

• Take double-sided adhesive tape from the kit and remove one piece of protective backing tape.

• Firmly press the tape in on the rear side of the holder.

• Remove the remaining protective backing tape from the double-sided adhesive tape.

• Firmly press the holder in on the bracket.

• Secure the remote control from the kit into the holder.

• Reinstall the connectors to the rear section of the glove box. Note the color marking on the cable for the right-hand connector.

Reinstall:

• the lower vent.
• the rear section of the glovebox by guiding it in diagonally inside the center console and then straight forward. The rear section must be positioned on the outside of the remaining inner section.
• the clip in the air vent on the end face of the dashboard.
• the panel on the dashboard end face.
• the center console and connect the dashboard environment panel
• the panel on the center console rear edge.
• Connect and reinstall the display unit.
• the surround for the display.
• the panel inside the center console.
• the sill trim panels by the right-hand front door.
• seat cushions and backrests.
• the battery negative lead.

Reinstall in the cargo compartment:

• the side panels.
• stops and attaching braces.
• the cargo compartment carpeting.
• the sill panel with lighting.
• any emergency release.
• the stop for the boot lid/tailgate.
• the cargo lashing eyes, tightening torque: 24 Nm (18 lbf.ft.).
• the toolbox.
• the divider; remove the cable ties.

Illustration A

Program the system as follows:

1. Select "Settings"
2. Select "Service"
3. Press OK at "Code"
4. Enter code:
5. Select "X-Code"
6. Enter code:
7. Press "OK"
8. Press "Save settings"

Примечание: Do not forget this!

Illustration B

Volvo menu

• The system now starts up with the Volvo logo and is ready for use.

Applies only if the car has AEM and the Radio Mute function is desired
The function mutes the radio when there are navigation messages.

• Take a new cable with minimum area 0.35 mm².
• Using a crimping sleeve, splice the new cable with the brown/white (BN/W) cable from the brown connector at the navigation unit.
• Route the cable along the rear crossmember and connect it at position 11 in the accessory electronic module (AEM). If the position is in use by handsfree mute, splice the cable with the crimping sleeve. Make sure that the splices are performed as described in steps 78 - 80.
• Load the Telemute application in AEM.
