Mudguard front (2001, 2002)

• Remove the front wheels
• Clean the area at the rear edge of the wing liner and the edge of the wing where the mudguard will be positioned

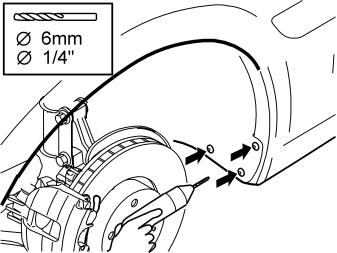

• Carefully drill out the three rivets holding the wing liner at the rear edge of the front wing. Use a 6 mm (1/4”) diameter drill bit
• Remove any rivet swarf.

Примечание: Do not damage any of the plastic components.

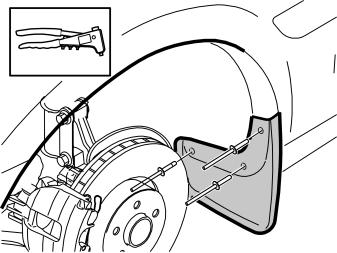

• Install the mudguard. Rivet the mudguard into place in the wing liner and the rear edge of the front wing
• Reinstall the front wheels. Tighten the wheels. Tighten to 140 Nm (103 lbf. ft).
