Mudflaps, rear (2001, 2002)

Preparations

• Raise the car.
• Remove the rear wheels.

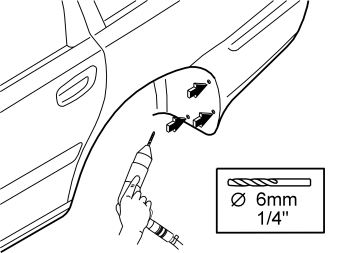

• Carefully drill away the rivets retaining the fender liner and bumper cover. Use a Ø 6 mm (1/4") drill bit. Ensure that no plastic components are damaged.
• Remove the remains of the rivets.

Installation

• Remove the plastic cord holding both the mudflaps together.
• Install the mudflaps and rivet the mudflaps securely in the fender liner and the bumper cover.
• Reinstall the wheels and tighten to 110 Nm (83 ft. lbf).
• Lower the car.
