Применимость
| Модель | Двигатель | Год |
|---|---|---|
| S60 (-09) | — | 2001–2008 |
| S80 (-06) | — | 1999–2006 |
| V70 (00-08) | — | 2000–2008 |
| V70 XC (01-) / XC70 (-07) | — | 2001–2007 |
| XC90 | — | 2003–2008 |
Примечание: The reading lamp is not included in the kit. The reading lamp must be purchased separately.
Preparations
Applies to 700/900/S90/V90

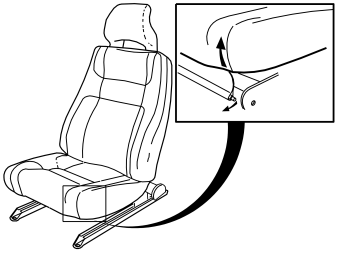

- Unhook the upholstery on the passenger seat at the front edge near the centre console. Fold the upholstery to one side.
Applies to all models

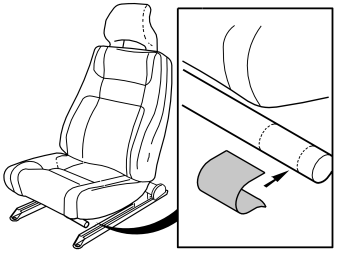

- Wipe the seat frame clean on the marked surface at the centre console as illustrated
- Remove the backing from the piece of tape. Apply the tape around the seat frame so that the tape joins at the reverse of the seat frame.
Installing the lamp mounting

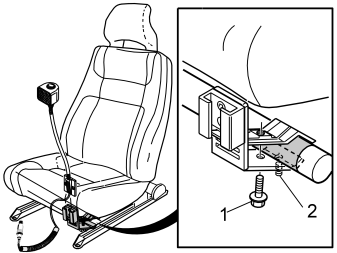

- Install the lamp mounting on the piece of tape around the seat frame as close to the centre console as possible. Tighten the mounting using the screw (1)
- Adjust the lamp mounting to the desired position. Tighten using the screw (2)
- Install the reading lamp in the mounting. Connect the cable to the cigarette lighter socket.

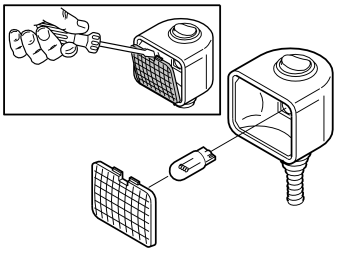

Disassembling the reading lamp when replacing the bulb
- Remove the lamp glass. First carefully pry off the top edge of the lamp using a small screwdriver.
