Mounting kit, child seat, front

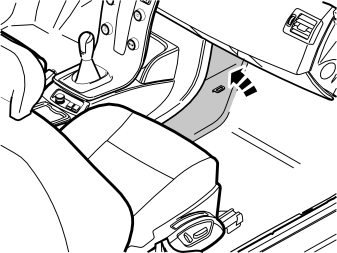

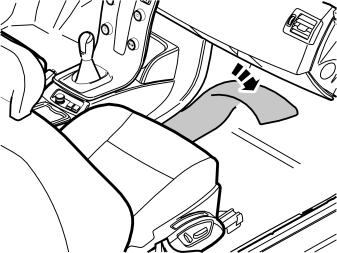

• Fold down the floor carpet on the right-hand side of the tunnel console.

• Remove the rear screw in the centre console mounting.

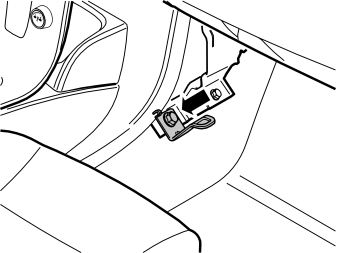

• Install the left-hand mounting with the existing screw. Torque tighten the screw to 24 Nm (18 lbf.ft.).

• Fold the floor carpet back under the mounting.

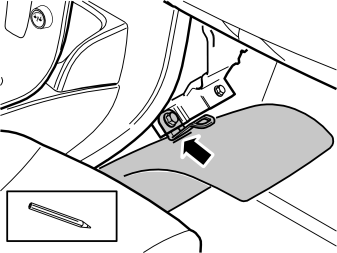

• Mark with a pen where the mounting eyelet shall go through the carpet.

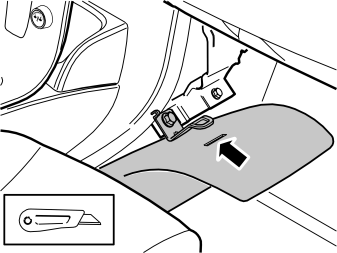

• Make a small cut in the floor carpet opposite the marking, equally as wide as the mounting eyelet.

• Fold the carpet back over the mounting eyelet and refit it at the centre console.

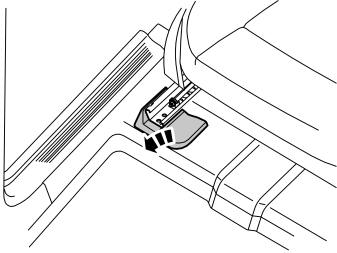

• Remove the cover panel over the front right-hand mounting by carefully prizing it off with a weatherstrip tool.

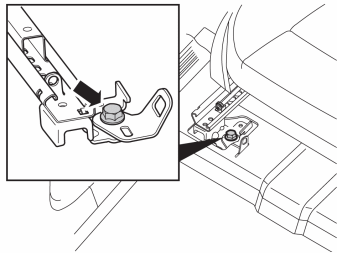

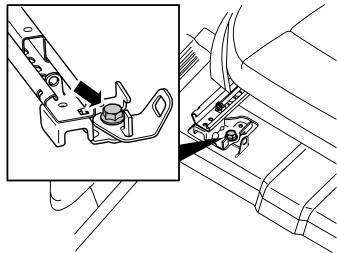

Image A applies to the S40 (04-)/V50, Image B applies to the C70 (06-)/C30

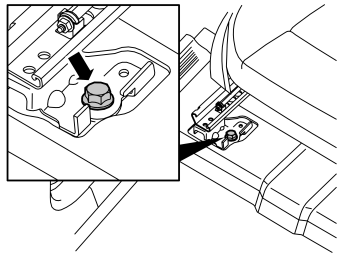

• Remove the screw in the mounting.

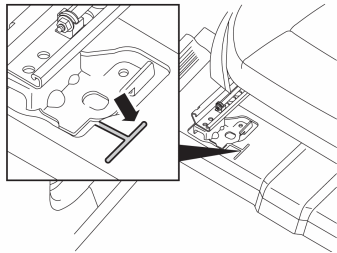

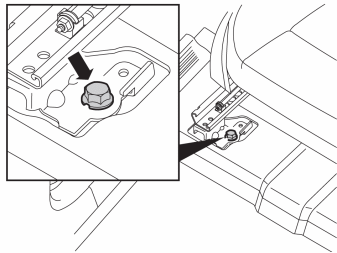

Image A applies to the S40 (04-)/V50, Image B applies to the C70 (06-)/C30

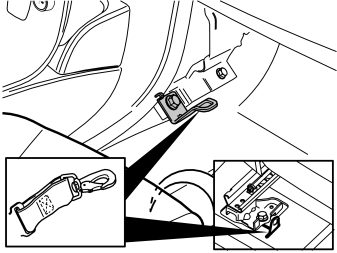

• Make a small T-shape cut in the floor carpet, equally as wide as the mounting eyelet on the mounting in the position as illustrated. Use the mounting to mark where the small cut should be located.

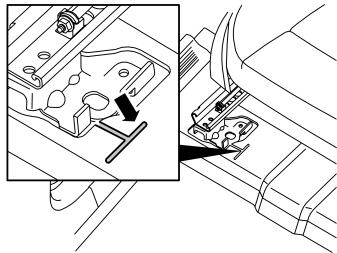

Image A applies to the S40 (04-)/V50, Image B applies to the C70 (06-)/C30

• Insert the mounting eyelet through the small cut in the floor carpet. Position the mounting over the hole and the guide pin in the seat rail with the washer on top.
• Reinstall the screw. Torque tighten the screw to50 Nm (37 lbf.ft.).
• Reinstall the cover panel over the seat mounting.
