Mirror, cover

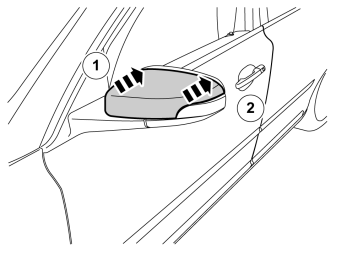

• Pry/twist off the mirror cover using a weatherstrip tool (1). Fold it forward (2) and unhook it at the front edge.

Illustration A

Illustration B

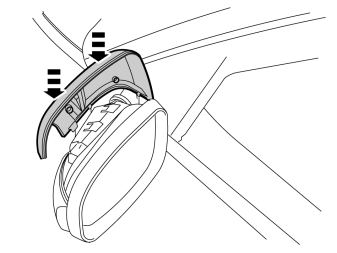

• Take a new cover from the kit, push it down towards the mirror housing and align the cover's three lugs in the corresponding recesses in the housing.
• Align the cover's inner end in the housing.

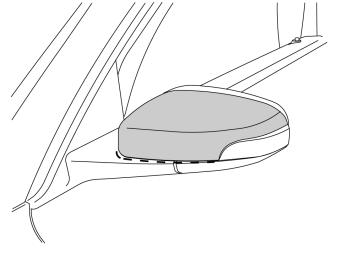

• Check that the cover is parallel to the housing.

• First press the cover on the inside and then on the outside.
• Check that the cover is secured correctly.
• Repeat the steps for the other mirror.
