Metal pedals

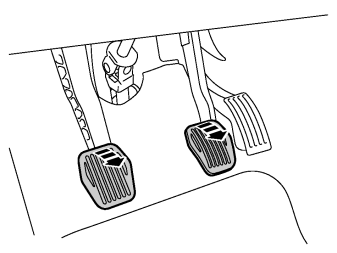

Image A applies to cars with manual transmissions. Image B applies to cars with automatic transmissions

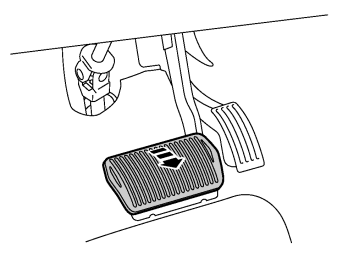

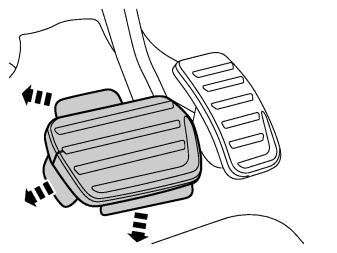

• Remove the rubber covers from the pedals by grasping the upper edge and pulling backwards.
• Clean, if necessary, all pedal surfaces where the new rubber covers will be positioned.

• Take the accelerator pedal's metal trimmed rubber cover from the kit.

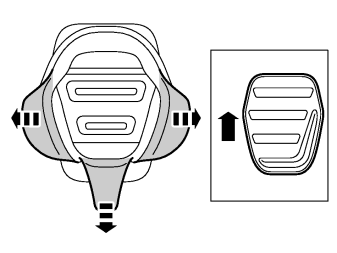

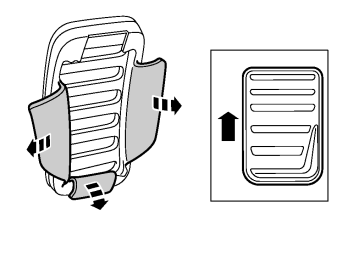

• Hold as illustrated and fold out the three tabs.

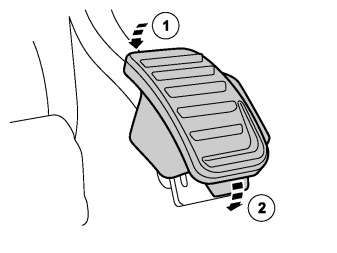

• Hook the cover at the upper edge, at the same time hold the tabs and pull downwards.
• Press the cover firmly onto the pedal.

• Pull the tabs down slightly and check that the edges of the cover surround the pedal edges. Pull the cover to ensure that it is secure.

Steps 5-10 apply to cars with manual transmissions

• Take the two spacer washers from the kit.
• Carefully separate the two covers from each other.

• Remove the protective film from both covers. Ensure that the surfaces of the pedals are clean.

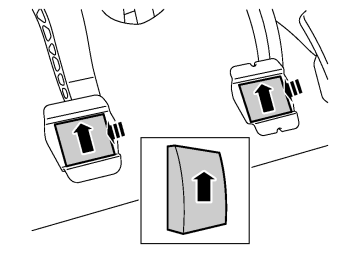

• Place the two covers, which have markings, in the recesses on the clutch and brake pedal and press securely. The thicker part of the covers must point downwards.

• Take one of the remaining covers from the kit.
• Hold as illustrated and fold out the three tabs.

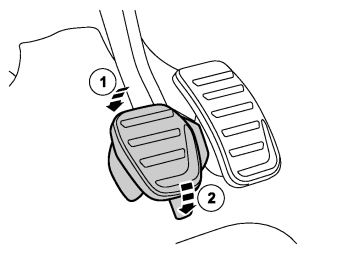

• Hook the cover at the upper edge, at the same time hold the tabs and pull downwards.
• Press the cover firmly onto the pedal.

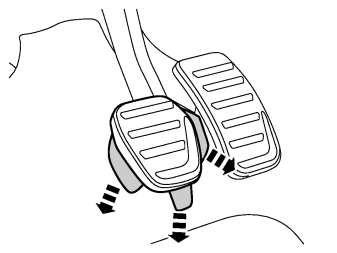

• Pull the tabs down slightly and check that the edges of the cover surround the pedal edges. Pull the cover to ensure that it is secure.
• Repeat steps 8-10 for the remaining pedal.

Steps 11-15 apply to cars with automatic transmissions

• Take the two spacer washers from the kit. Remove the protective film from the covers. Ensure that the surfaces of the pedals are clean.

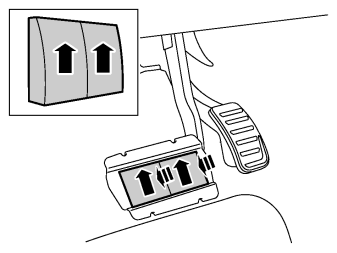

• Position the longer cover, which has markings, in the recess on the brake pedal and press securely. The thicker part of the cover must point downwards.

• Take the brake pedal's metal trimmed rubber cover from the kit.
• Hold as illustrated and fold out the three tabs.

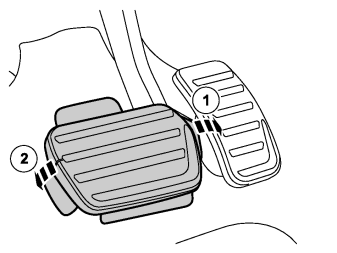

• Hook the cover onto the right-hand shorter side of the pedal, at the same time hold the tabs and pull to the left and downwards.
• Press the cover firmly onto the pedal.

• Pull the tabs down slightly and check that the edges of the cover surround the pedal edges. Pull the cover to ensure that it is secure.
