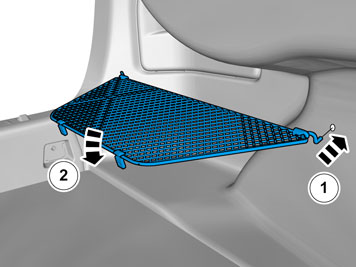

Mesh pocket, cargo compartment, side panel

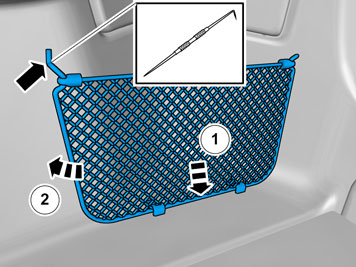

Mesh pocket right side

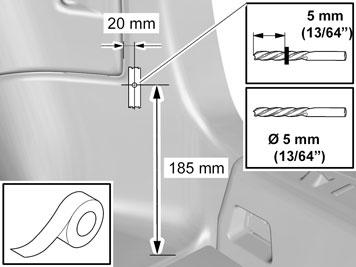

• Apply the strips of tape as illustrated.
• Make marks for drilling holes for the mesh pocket mountings.
• Drill out the hole.

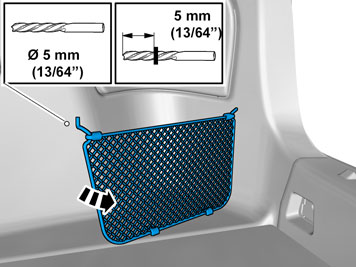

• Insert the pocket's rear mounting in the hole in the panel and fold down.

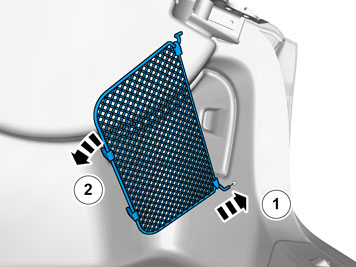

• Insert the mesh pocket's front mounting towards the panel and lower end towards the floor.

• Move the front mounting to one side and drill the hole.

• Insert the front mounting in the panel and fold down the mesh pocket.

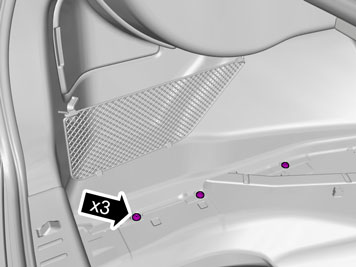

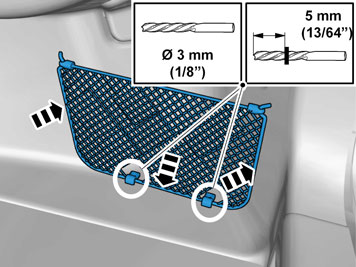

• Drill out the holes in the panel through the two clips.

• Tighten the mesh pocket's lower end

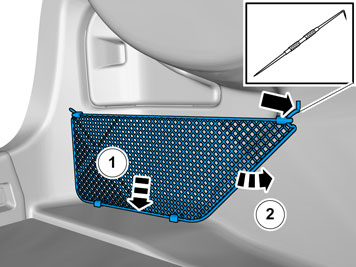

Mesh pocket left side

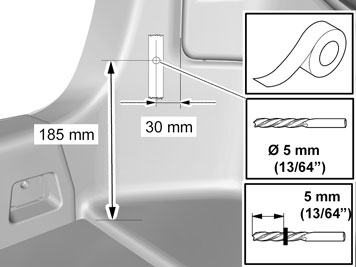

• Apply the strips of tape as illustrated.
• Make marks for drilling holes for the mesh pocket mountings.
• Drill out the hole.

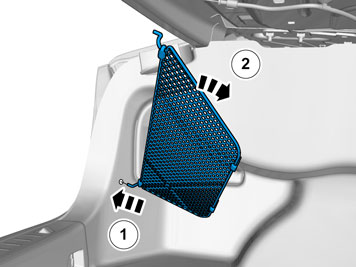

• Insert the rear mounting in the panel and fold down the mesh pocket.

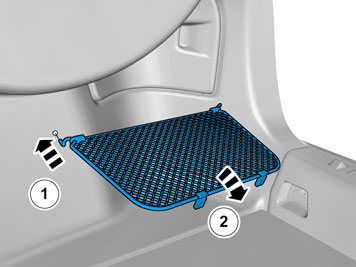

• Insert the mesh pocket's front mounting towards the panel and lower end towards the floor.
• Mark the hole in the panel level with the middle of the radius of the bent wire frame.

• Move the front mounting to one side and drill the hole.

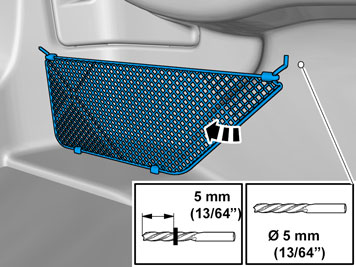

• Insert the front mounting in the panel and fold down the mesh pocket.

Applies to vehicles with control module for electric handbrake.

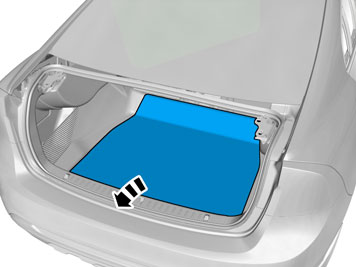

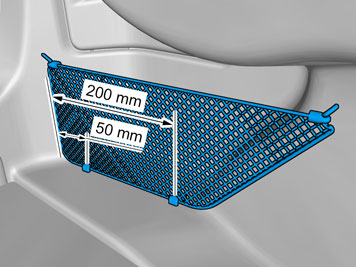

• Measure and place the clips in the wire frame. Measure between the rear edge panel and centre.

• Remove the clips.

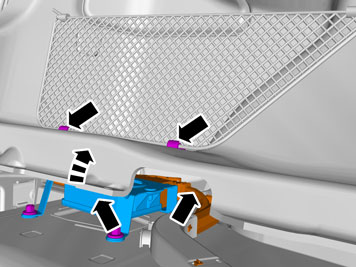

• Lift up the panel and check that the clips are positioned so that the control module and cable harness are not drilled. Move the clips if necessary.
• Reinstall the panel.

Applies to all models

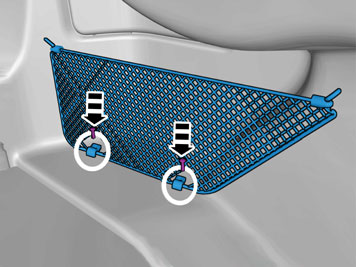

• Drill out the holes in the panel through the two clips.

• Tighten the mesh pocket's lower end.
