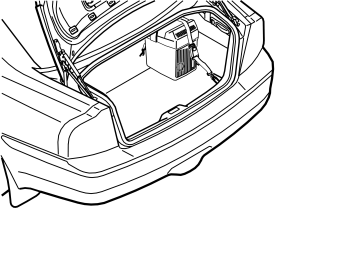

Illustration 1A applies to the S60 and S80:

• Position the coolbox in the cargo compartment on the right-hand side as illustrated.

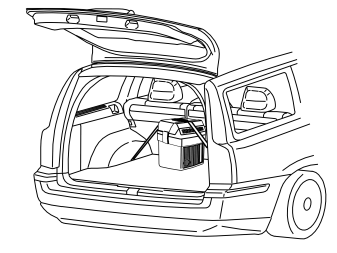

Illustration 1B applies to the V70:

• Position the coolbox in the cargo compartment behind the backrest as illustrated.

Applies to S60 and S80:

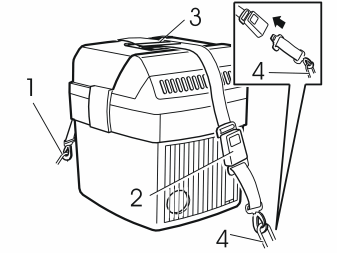

• Install the long strap hook in the front mounting eyelet (1) in the cargo compartment. Allow the strap lock (2) to hang over the front side of the coolbox as illustrated
• Press the mounting (3) down into the handle of the coolbox
• Install the short strap hook in the rear mounting eyelet (4) in the cargo compartment
• Lock the straps together. Tighten so that the coolbox is secured in place.

Applies to V70:

• Install the long strap hook in the left front mounting eyelet (1) in the cargo compartment. Allow the strap lock (2) to hang over the right hand side of the coolbox as illustrated
• Press the mounting (3) down into the handle of the coolbox
• Install the short strap hook in the right hand front mounting eyelet (4) in the cargo compartment
• Lock the straps together. Tighten so that the coolbox is secured in place.

Applies to all models:

• NOTE! Read the warning text on the coolbox.Connect the coolbox to the electrical socket in the cargo compartment
• Check the function.
