Loudspeakers, front door

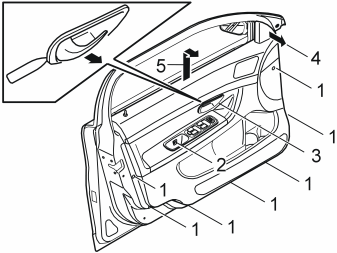

• Remove the clips (1) by pressing in the centre of the clips
• Remove the blind cover plug (2) and the screw from under it
• Carefully remove the frame (3) around the door handle. Use a weatherstrip tool and start at the bottom edge
• Remove the cover (4) for the door mirror by pulling it straight out
• Detach the door panel (5) by sliding the panel upwards and unhooking the top edge.

Illustration A shows the door

Illustration B shows the side of the door

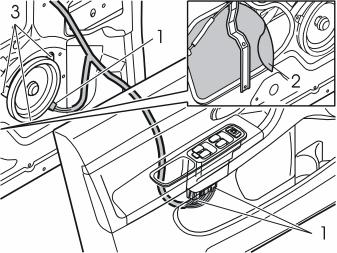

• Remove the connectors (1) from the module for the door control, the bass speaker and the treble speaker
• Carefully remove the moisture inhibitor (2) at the front edge
• Drill out the rivets (3) from the bass loudspeaker. Use a6 mm (15/64")drill bit
• Remove the bass loudspeaker and any rivet swarf from the rivet holes. Also remove any rivet remnants from the door.

• Carefully place the door side on a clean surface

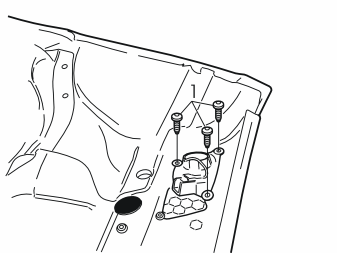

• Unscrew the screws (1) for the treble speaker and remove it.

• Screw the new treble loudspeaker into place into the same position as the old one. Use the screws from the kit.

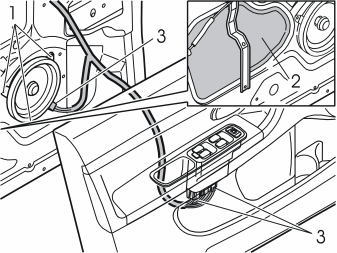

• Screw the new bass loudspeaker into place into the same position as the old one. Use the screws and nuts (1) from the kit
• Reinstall the moisture inhibitor (2)

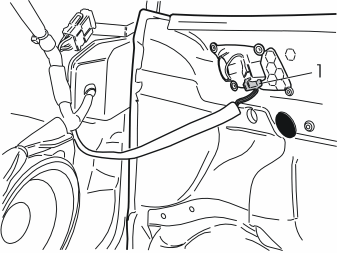

• Connect the connectors (3) to the bass loudspeaker and to the module for the door controls
• Reinstall the door panel and the cover for the door mirror.

• Repeat the operations in points 1-5 on the other front door
• Program the software using VCT2000 according to the service information in VIDA.
