Load carriers for rails

Applies to both types of load carriers

• Position the load carrier on the rails for the car. Ensure that the load carrier is symmetrical. (Positioned so that the ends protrude the same distance from the mountings on both sides)

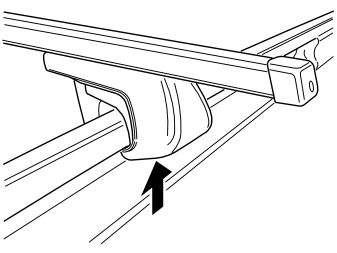

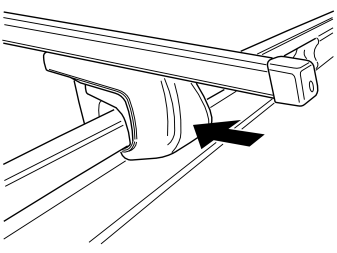

• Adjust the position of the load carrier before mounting. Press the mountings inwards and upwards as illustrated.

Illustration A applies to load carriers with T-grooves

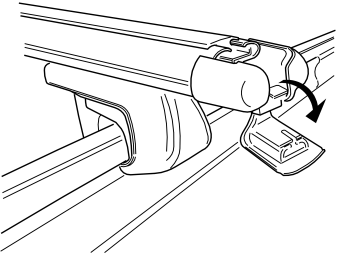

• Open the cover on the end of the load carrier to access the screw.

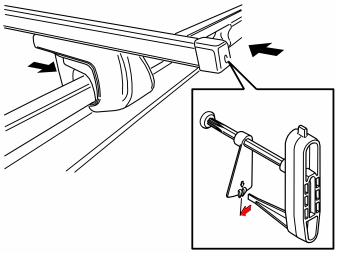

Illustration B applies to both types of load carriers

• Insert a torque wrench in the end of the load carrier. Tighten until the mountings encircle the rails
• Repeat the operation on the other mountings.

Applies to both types of load carriers

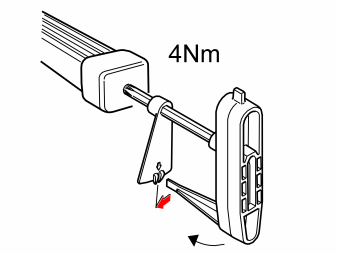

• Tighten the screws in the ends of the load carriers until the indicator on the wrench handle is in between the two markings. The correct torque of 4 Nm (3 lbf.ft.) has then been reached.

Applies to load carriers with T-grooves

• Fold the cover back into place on the end.
