Применимость
| Модель | Двигатель | Год |
|---|---|---|
| S40 (04-) | — | 2004–2012 |
| V50 | — | 2004–2012 |
Примечание: The following text describes the installation of the Isofix mounting on the left-hand side. However installation on the right-hand side of the rear seat is also possible.
- Fold forward the left-hand seat cushion and backrest in the rear seat.

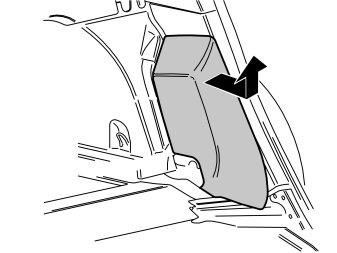

- Grasp the upper edge of the left-hand side cushion. Pull the side cushion forward so that the clips on the reverse release
- Remove the side cushion by sliding it up.

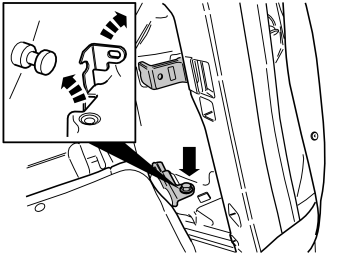

- Remove the screw for the mounting in the chassis for the left-hand rear backrest. Fold up the bracket over the mounting in the backrest
- Lift up the free end of the backrest and pull it off from the right
- Position the backrest behind the front seat backrest.

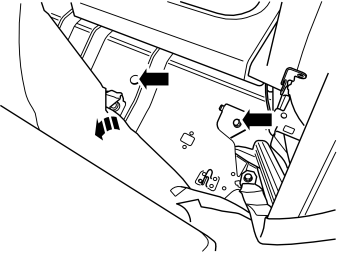

- Pull the rear edge of the floor carpet off the floor support. Fold back the carpet to expose the mounting points for the Isofix mounting in the floor
- Remove the screw from the support bracket. There is a new screw in the kit
- Remove the blind cover plug in the floor, it will not be used again.

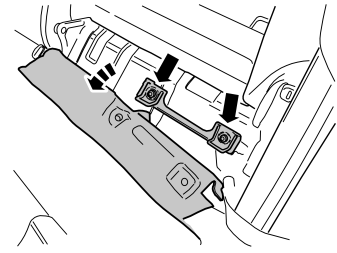

- Install the isofix mounting from the kit over the welded nuts. Tighten the mounting using the two screws. Tighten to 40 Nm (30 lbf. ft.).

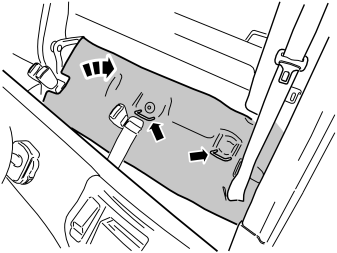

- Fold the floor carpet back into place. Insert the isofix mounting eyelets in the two cut-outs. Insert the rear edge of the floor carpet under the floor support. Carefully pry up the floor support if necessary to get it into place
- Move the backrest back into place. Tighten the screw. Tighten to 40 Nm (30 lbf. ft.)
- Reinstall the side cushion
- Fold the seat cushion back into place.
