Применимость
| Модель | Двигатель | Год |
|---|---|---|
| C30 | — | 2007–2013 |
| C70 (06-) | — | 2006–2013 |
| C70 Conv (-05) | — | 1998–2005 |
| S40 (04-) | — | 2004–2012 |
| S60 (11-) | — | 2011–2015A |
| S80 (-06) | — | 1999–2006 |
| S80 (07-) | — | 2007–2015A |
| V50 | — | 2004–2012 |
| V70 (00-08) | — | 2000–2008 |
| V70 (08-) | — | 2008–2014 |
| V70 XC (01-) / XC70 (-07) | — | 2001–2007 |
| XC60 | — | 2009–2015A |
| XC70 (08-) | — | 2008–2015A |
Installing/removing the ISOFIX-guide
Illustration A applies to the passenger seat and car models
C30/S40/V40/V50/S60/C70(06-)/V70/XC60/XC70/S80/XC90

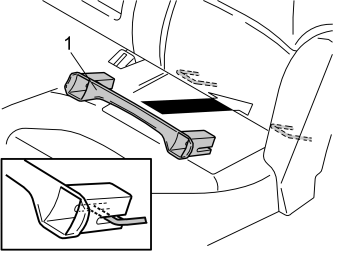

Illustration B applies to the rear seat and car models
C30/S40/V40/V50/XC60/C70(06-)/S80
Installing the Isofix guide:
- Press the Isofix guide (1) into place between the backrest and seat cushion. Press it down to the Isofix mountings.
- The Isofix mountings must be visible in the guide's (1) openings. Check that the guide is correctly installed.
Removing the Isofix guide:
- Grip the outer edges. Carefully pull the guide outwards.
