Handsfree for cellular phone, system B, entry level (2006, 2007)

• Turn the ignition switch to position 0.
• Disconnect the negative battery cable.

Примечание: Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

• Use a weatherstrip tool to carefully pry loose the panel at the rear edge of the center console. The panel is held in place by a catch on each short side.
• Move the panel to the side to access the two screws underneath.

• Remove the screws.

• Open the glovebox.
• Use a plastic weatherstrip tool to carefully pry loose the panel inside the center console. It is held in place by two clips on each short side.
• Pull the panel away downwards.

• Apply tape to the center console to protect it during removal and installation of the glove compartment.

• Detach the surround around the display and the media player: Press in the catch at the edge of the media player cover. Use a small screwdriver. Carefully pry off the surround at the corner. Use a weatherstrip tool.

Примечание: Do not damage the panel and dashboard.
- Repeat the operation on the other side.

Подсказка: If the other side does not detach, press the detached side into position again and repeat the procedure, beginning from the other side.
- Fold the surround backwards. Remove by pulling upwards.

• Press out the display module from the reverse of the center console. Use both hands and press straight back.
• Disconnect the two connectors. Put the display to one side.

Applies to cars with manual gearbox

• Remove the gear selector lever boot from the center console. First pry it off at the front edge using a weatherstrip tool and then unhook it at the rear edge.

• Remove the two screws holding the centre console to the dashboard.
• Remove the connector on the reverse of the dashboard environment panel.
• Remove the center console from the dashboard and tunnel console.

• Remove the two clips securing the cables to the media player by first pressing them to the sides and then pulling them away downwards.

Примечание: Be careful with the optic cables so that they are not bent or stretched.

• Remove the two screws from the bottom of the media player.
• Pull out the media player and detach the connectors on the rear side.

Примечание: Note how the wiring is packed on the reverse. The fibre optic cables are easily damaged and must not be bent to a radius less than 25 mm (1").

• Angle up both air vents.

• Grip the air vent, press it out and pull it upward.
• Do the equivalent to the other air vent.

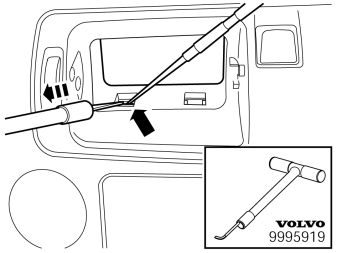

• Insert a scriber and push up one of the catches in the lower edge of the air vents' housing.
• Insert the tool part no. 9995919 in the space that is opened and pull out until the catch releases.
• Repeat this until all catches in the lower edge have released.

• Grip the ends of the housing and pull out until all catches on both the top and bottom are fully free from the inside of the dashboard. If necessary, use a weatherstrip tool to prize out the ends of the housing.

Примечание: Do not damage the dashboard.

Pull alternately on the right and left-hand sides, otherwise the edge of the housing will crack where it enters the air ducts on the inside. The housing is secured firmly so force will be required to release it.

• Remove the panel on the right-hand and left-hand ends of the dashboard. Carefully pry off the panel until the three clips release. Use a weatherstrip tool.

Примечание: Do not damage the dashboard.

• Remove the clip holding the nozzle for the air duct on the right-hand and left-hand sides.

• Remove the rubber mat from the glovebox.
• Remove the screws, x 5, in the glovebox opening.
• Pull the glovebox straight back in the vehicle in order to release the hidden clips, x 2, in the top edge.
• Remove the outer section of the glovebox.

• Unplug the connectors on the top.

• Remove the screw or the air vent on the right side.
• Pull off the vent to the right and place to one side.

• Remove the clips at the rear edge of the soundproofing panel and remove it.

• Position the steering wheel in its lowest and rearmost position.
• Remove the two screws from the surround for the combined instrument panel.

• Pull out the surround starting at the bottom edge and then the top. The surround is held in place with a clip on each side of the bottom edge.
• Place the surround to one side.

• Take the mounting from the kit and place its support legs in the recess for the combined instrument panel surround and in the left air vent.
• Position the left-hand support leg of the mounting as illustrated. The front edge of the support leg must be parallel with the edge in the cutout in the dashboard. The measurement to the bottom edge of the support leg must be taken from the center of the radius.
• Mark out the holes to be drilled for the mounting.

• Drill out the holes using a Ø5 mm (13/64") diameter drill bit. Use a 10 mm (25/64") drill stop to prevent damaging the components on the inside.
• Remove any swarf.

• Take two screws and the support plate from the kit. Use the screws to secure the mounting's left leg to the dashboard. Position the support plate on the inside of the leg.

• Drill out the hole for the right-hand support leg with a Ø4 mm (5/32") diameter bit.
• Take a screw from the kit and secure the right-hand support leg.

• Take a mounting plate and the antenna cable connector from the kit.
• Press in the antenna cable connector onto the rear of the mounting plate.

• Take four screws (l = 16 mm) from the kit and secure the mounting plate at the installed mounting.

• Insert the two connectors on the top of the ignition switch, on the right-hand side of the combined instrument panel, and then down in the dashboard. There is not much space by the ignition switch, so be careful with the cables there.

• Remove the door weatherstrip at the left A-post.
• Pull off the panel from the A-post. The panel is secured by three clips.
• Lift the panel up and inwards in the vehicle.
• Unhook the clip nearest the roof.
• Remove the panel.

• Use isopropanol to clean the molding on the inside of the windshield (as illustrated).

• Remove the protective backing from the antenna, position it as illustrated and press it into place on the windshield molding.

• Route the antenna cable along the A-post, down toward the dashboard and out toward the end.

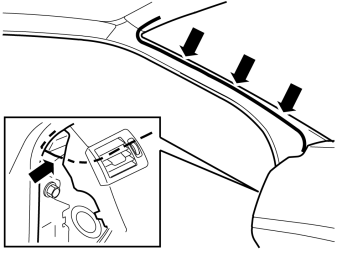

• Fasten the cable at the A-post using three strip clamps as illustrated.

Осторожно: The inflatable curtain is located inside the A-post panel. The cable must not be positioned or clamped in this area.

• Mark the holes for the mounting plate on the A-post panel as illustrated.
• Drill out the holes. Use a Ø2.5 mm (3/32 ") drill bit.
• Remove any swarf.

• Take the microphone with mounting plate from the kit. The microphone may be mounted on the mounting plate. If so, detach it. It is held in place with two catches on the long sides.
• Use two screws from the kit to fasten the mounting plate to the A-post panel.

Осторожно: The inflatable curtain is located within the A-post panel. It is important that the screws that hold the mounting plate are filed down if necessary so that they go evenly through the panel to the right depth and do not damage the inflatable curtain.
- Check how much of the screws protrudes on the reverse. Unscrew the screws. File off the screws to the correct length.
- Reinstall the screws.

• Press the microphone into place on the mounting plate.

• Route the microphone cable along the inside of the A-post. Secure it with pieces of butyl tape where it folds over the edge of the panel and continue along the front edge as illustrated.

• Reinstall the A post panel.
• Insert the cable for the microphone through the left end of the dashboard.

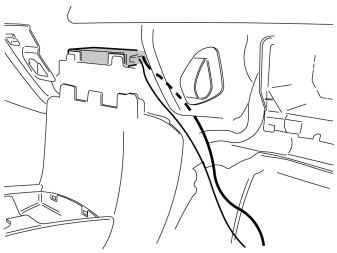

• Continue routing the cables of the microphone and antenna above the combined instrument panel and to the phone cradle cable at the ignition key.
• Now route the cables in the same way as the cable for the phone cradle.
• Reinstall the rubber strip in the door opening.

• File out a groove for the phone cradle cable in the combined instrument panel surround as illustrated.

• Push the felt tape on the right-hand side of the surround to one side.
• Cut off the two tabs.
• Re-apply the tape.

• Reinstall the combined instrument panel surround. Ensure that the phone cradle cable is positioned in the cutout.
• Adjust the cable length between the phone cradle and surround.
• Reinstall the housing and air vents.

Примечание: Take care when refitting the air vent housing. Make sure that protruding parts on the right end of the housing do not damage the dashboard.

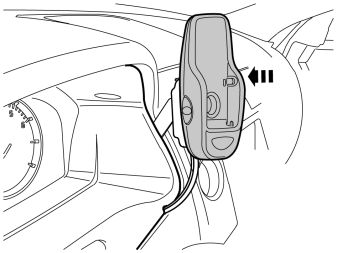

• Install the phone cradle on the mounting plate.

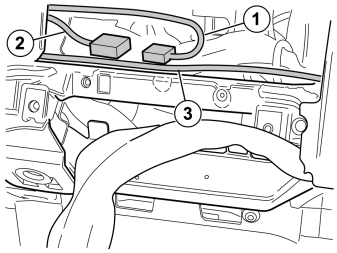

• Connect the antenna cable (1) to the short cable (2) from the phone cradle mounting plate. Route the microphone cable (3) on to the right side of the center console.

Applies to cars with internal amplifier

1. Take cable harness A (marked A in the kit image) from the kit.

Applies to cars with external amplifier

1. Take cable harness C (marked C in the kit image) from the kit.

Applies to all cars

• Connect the gray connector (1) in the new cable harness to the corresponding socket in the media player.
• Connect the gray connector (2) in the new cable harness to the gray connector (3) which was detached from the media player.
• Position connectors (2) and (3) to the left in the opening so that they are not in the way when the media player is installed.
• Plug the remaining connectors which where detached into the media player.
• Reinstall the media player and secure it.

• Pull the 2 cables down on the right-hand side of the center console.

• Fold the carpet to the right of the center console.

Applies to cars with internal amplifier

• Take the mute relay from the kit.
• Plug in the cable connectors to the mute relay.
• Tape 2 thick pieces of foam tape around the mute relay.

Applies to cars with internal amplifier

• Place the relay between the carpet and the climate control unit as illustrated.

• Take the phone module and two pieces of foam tape from the kit.
• Affix the foam tape pieces around the control module as illustrated.

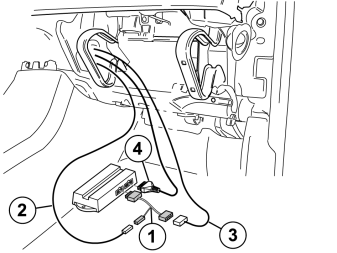

• Connect the connectors as illustrated.

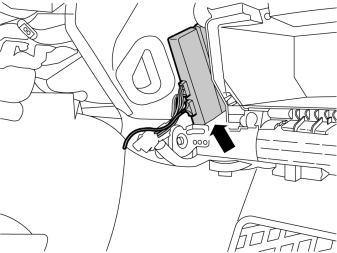

• Position the control module to the left of the glove compartment as illustrated.

Applies to cars with external amplifier

• Take two strip clamps from the kit to clamp cable harness C (which will later be routed back to the external amplifier) above the impact pipe.

• Place the connectors and the excess wiring inside the center console.
• Fold back the carpet.

Steps 55-76 apply to cars with external amplifier.

• Detach the sill molding by first pulling at the front edge and then straight up so the clips release.

• Grasp the upper edge of the right-hand side cushion. Pull the side cushion forward so that the clip on the reverse releases.
• Slide the side cushion up. Remove the side cushion.

• Pull off the rubber strip at the rear of the opening for the right-hand rear door.
• Carefully pry off the lower panel on the C-post on the right-hand side. Carefully pry at the top edge. Use a plastic weatherstrip tool.
• Pull the panel on the C-post so that the two upper clips release. Then continue down until the last two clips release. Remove the panel on the C-post.

• Remove the sill panel in the right rear door by pulling inward on the upper edge until the clip on the inside releases.
• Then continue downward and pull the panel up until the remaining two clips on the underside release.

• Pull off the rubber mouldings at the rear edge of the right-hand front door and at the front edge of the right-hand rear door. This releases the lower panel on the B-post.
• Pull the bottom edge of the lower panel on the B-post until the two bottom clips release.

• Fold the rear seat cushions and backrest forwards.

Steps 61-64 apply to V50 with external amplifier.

• Remove the cargo compartment carpet.

• Use a weatherstrip tool and pry up one corner of the sill trim panel so that the two clips on the short side release.
• Pull up the sill trim panel so the remaining six clips release. Remove the panel.
• Detach the rubber strip where it covers the left and right-hand side panel in the boot opening.

Примечание: On right-hand drive cars, this step only needs to be performed on the left side of the car.

• Remove the screw.
• Pull the panel upwards so that the four clips on the inside release. Remove the panel.
• Repeat the operation on the other side.

Примечание: On right-hand drive cars, this step only needs to be performed on the left side of the car.

• Fold out the load securing eyelets.
• Insert a scriber with an angled tip into the holes in the top of the covers (1). Turn the scriber so that the tip engages the reverse of the cover. Pull the covers off.
• Remove the screws in the load securing eyelets.
• Remove the screw (2).
• Pull off the side panels at the top so that the two clips at the rear/bottom of the side window and the clip at the bottom of the D-post release.
• Disconnect the connector for the 12V socket, if present.
• Lift out the side panel.
• Repeat the operation on the other side

Steps 65-69 apply to S40 with external amplifier.

• Remove the cargo compartment carpet.

• Remove the upper floor support on the left and right-hand sides if applicable.

• Unscrew the two external clips at the front edge/bottom edge of the sill trim panel on the tailgate.
• Use a weatherstrip tool and pry up one corner of the sill trim panel so that the two clips in that end release.
• Pull up the sill trim panel at the other end so that the remaining two clips release. Remove the sill trim panel.
• Detach the rubber strip where it covers the left and right-hand side panel in the boot opening.

Примечание: On right-hand drive cars, this step only needs to be performed on the left side of the car.

Illustrations 68 and 69

• Remove the four clips (1) securing the side panel in the bodywork.
• Unhook the front edge of the parcel shelf panel at the mounting (2) Pull the side panel away from the parcel shelf panel and the panel on the C-post.
• Unhook the side panel from the mounting (3) on the underside of the parcel shelf.
• Disconnect the connector for the 12V socket, if present.
• Unhook the side panel from the load securing eyelets (4). Remove the side panel.
• Repeat the operation on the other side

Steps 70-76 apply to S40 and V50 with external amplifier

• Route the cable inside the floor carpets and lower B-post panel, further to the rear edge of the right rear wheel housing. Route the cables along the existing cable harnesses in the cargo compartment.

Примечание: Ensure that the cable is positioned so that there is no risk of it catching or rubbing.

(Applies to left-hand drive cars only)

• Continue routing the cable harness to the amplifier.
• Position the cable harness at the existing cable harness to the side and at the rear edge of the cargo compartment, all the way from the right-hand wheel arch to the amplifier.
• Take a short tie strap from the kit and secure the cable harness at the existing cable harness.

(Only applies to the V50)

• Remove the clips and the insulation panel.

• Disconnect the rear connector (1) on the amplifier.

• Connect the T-cable to the amplifier as follows:
• Use a cable tie to secure excess cable to the car's existing cable harness.

Applies to the V50

• Reinstall the insulation panel on the left-hand side.

Applies to the S40 and V50

• Connect the cables to the mute relay.
• Tape 2 thick pieces of foam tape around the mute relay as illustrated.

• Position the relay behind the existing cable harness as illustrated.

Applies to all models

• Reinstall the connectors to the rear section of the glove box. Note the color marking on the cable for the right-hand connector.

At the dashboard

Reinstall:

• the lower vent.
• the sound proofing.
• the rear section of the glovebox by guiding it in diagonally inside the center console and then straight forward. The rear section must be positioned on the outside of the remaining inner section.
• the clip for the vent on the glovebox.
• the panel on the dashboard end face.
• the panel on the center console rear edge.
• and connect the display unit.
• the surround for the display.
• the panel above the center console and check that the cable of the control panel is not pinched.
• Remove the tape on the center console.

In the passenger compartment

Reinstall:

• the B-pillar panel.
• the sill trim panels.
• the C-pillar panel.
• the rubber strips in the door openings.
• seat cushions and backrests.

In the cargo compartment

Reinstall:

• the side panels (Check that the sealing strip is on the outside of the panel).
• the load securing eyelets. Tighten to 24 Nm (18 lbf.ft.) (applies to V50).
• the sill trim panel for the tailgate.
• the upper floor support if applicable (applies to the S40).
• the rubber strips in the cargo compartment opening.
• the cargo compartment carpeting.

• Turn the ignition key to position II.
• Reconnect the negative battery cable
