Hands free unit for carphone (2006, 2007)

• Turn the ignition key to position 0.
• Disconnect the battery negative lead.

Примечание: Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

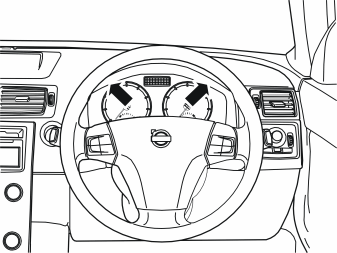

• Position the steering wheel in its lowest and rearmost position.

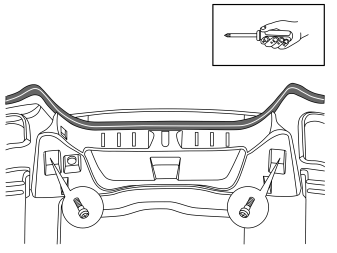

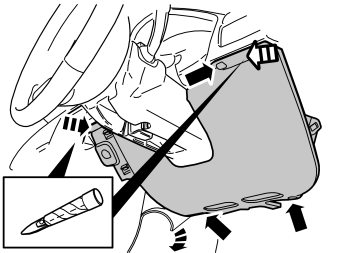

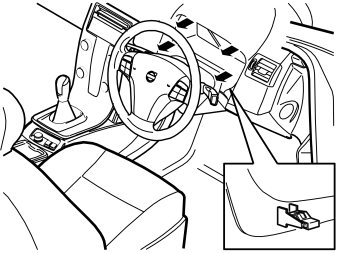

• Remove the two screws from the surround for the combined instrument panel.

• Pull off the surround starting at the lower edge and then at the upper edge. The surround is secured by a clip at each side of the lower edge. Place the surround to one side.

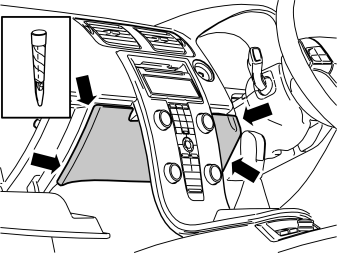

• Carefully pry off the panel at the rear edge of the centre console. Use a weatherstrip tool. The panel is secured by a catch on each of the short sides.
• Move the panel to the side to access the two screws underneath.

• Remove the two screws.

• Open the glovebox.
• Carefully pry off the panel inside the centre console. Use a plastic weatherstrip tool. The panel is secured by two clips on each of the short sides.
• Pull the panel away downwards.

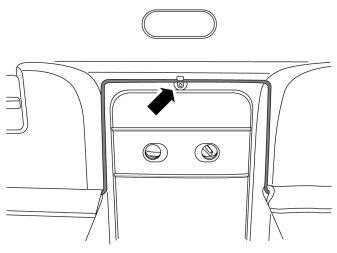

• Remove the temperature sensor by pulling it forward so that it detaches from its holder.

• Detach the surround around the display and the media player: Press in the catch at the edge of the media player cover. Use a small screwdriver. Carefully pry off the surround at the corner. Use a plastic weatherstrip tool.

Примечание: Do not damage the panel and dashboard.

Repeat the operation on the other side.

Подсказка: If the other side does not detach, press the detached side into position again and repeat the procedure, beginning from the other side.
- Fold the surround backwards. Remove by pulling upwards.

• Press out the display module (1) from the reverse of the centre console. Use both hands and press straight back.
• Disconnect the two connectors. Put the display to one side.

• Remove the two screws holding the centre console to the dashboard.

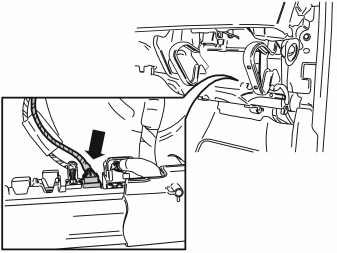

• Remove the connector on the reverse of the dashboard environment panel.
• Remove the centre console from the dashboard and tunnel console.

• Remove the two screws from the bottom of the media player.
• Pull out the media player and detach the connectors on the rear side.

Примечание: Note how the wiring is packed on the reverse. The fibre optic cables are easily damaged and must not be bent to a radius less than 25 mm (1").

• Remove the panel on the right-hand and left-hand ends of the dashboard. Carefully pry off the panel until the three clips release. Use a weatherstrip tool.

Примечание: Do not damage the dashboard.

• Remove the clip holding the nozzle for the air duct on the right-hand and left-hand sides.

• Remove the rubber mat.

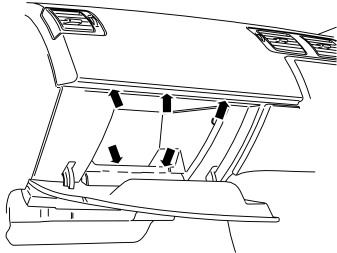

• Remove the screws, x 5, in the glovebox opening.
• Pull the glovebox straight back in the vehicle in order to release the hidden clips, x 2, in the top edge.
• Remove the outer section of the glovebox.

• Unplug the connectors on the top.

• Remove the screw for the vent on the right-hand side. Pull off the vent to the right. Place to one side.

• Remove the four screws for the inner section of the glovebox. Pull it out. Place it to one side.If there is a DVD reader installed, unplug the connectors on the rear.

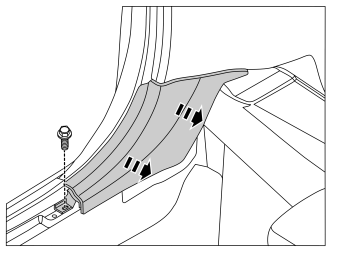

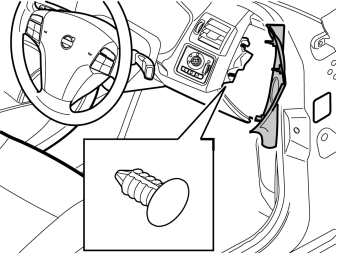

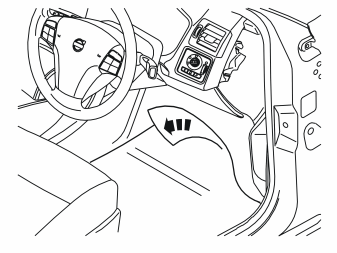

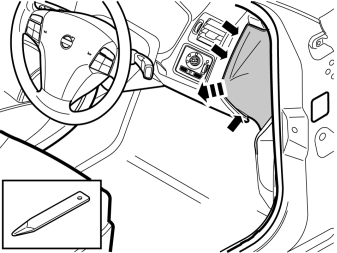

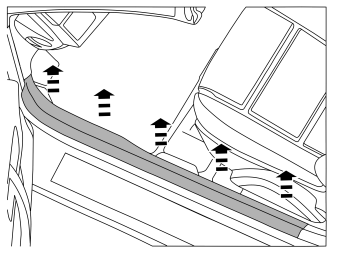

• Remove the sill trim panel at the right-hand front door. First pull off the front edge of the sill trim panel so that the clip releases. Then continue backward until the remaining clips on the underside have released.

Illustration A

• Remove the three screws in the soundproofing panel on the left-hand side.
• Push the carpet on the left-hand side of the centre console to one side.

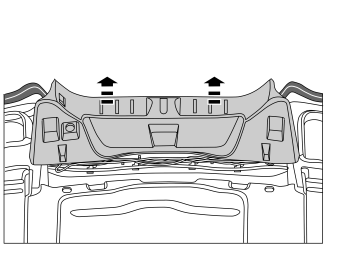

• Carefully pry off the soundproofing panel from the top edge of the dashboard. Use a weatherstrip tool. The panel is secured by two clips at the top edge.

Illustration B

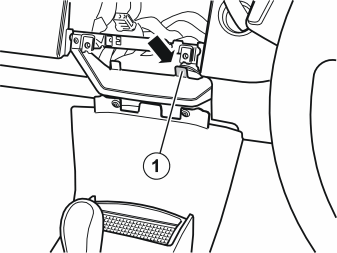

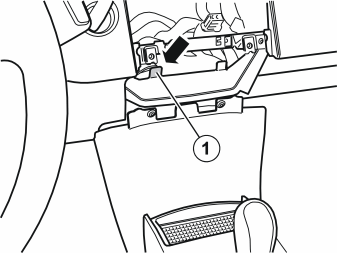

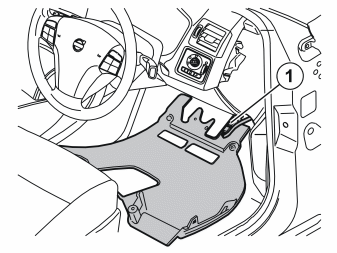

• Unplug the connector for the lighting (1).
• Remove the sound barrier.

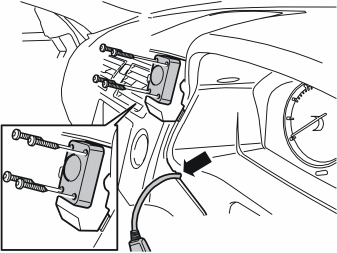

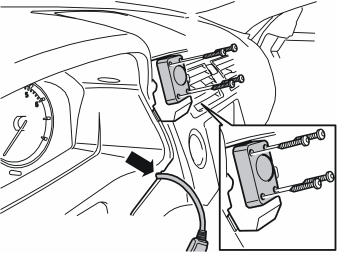

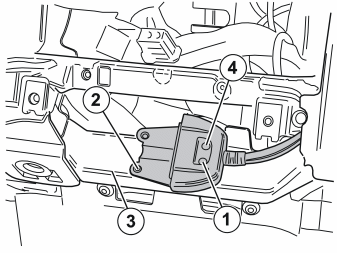

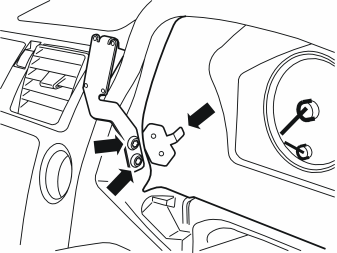

• Take the mounting (1), cover (2), mounting plate (3) and four screws from the kit. Tighten them to each other. Do not tighten too hard, they shall be undone again.

• Position the mounting with the mounting plate and cover in the cut-out for the combined instrument panel surround. The cover must connect to the dashboard where the arrows are displayed.

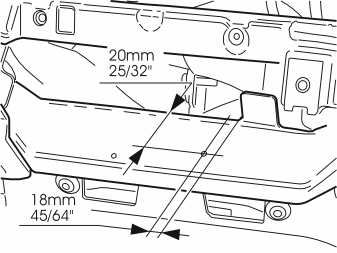

• Mark out the holes to be drilled for the mounting.

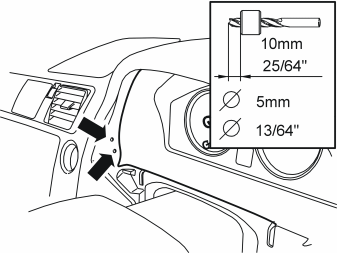

• Drill out the holes using a Ø5 mm (13/64") diameter drill bit. Use a 10 mm (25/64") drill stop to prevent damaging the components on the inside.
• Remove any swarf.

• Remove the holder and cover from the mounting.
• Tighten the mounting to the dashboard. Use the two screws and the mounting plate (positioned on the inside) from the kit.

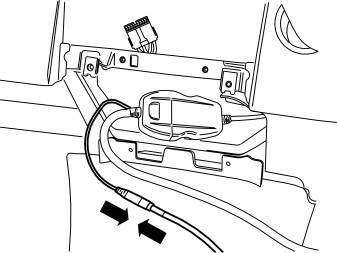

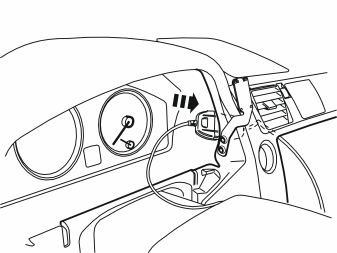

• Take the telephone holder from the kit. Insert the connector on top of the ignition switch, on the right-hand side of the combined instrument panel, and continue down into the dashboard. Do not damage the wiring as there is very little space by the ignition switch.

• Install the microphone according to the separate Installation Instructions.

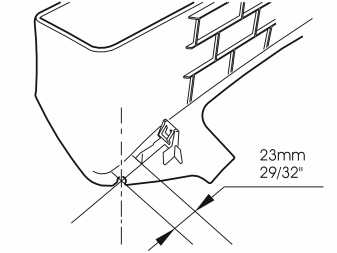

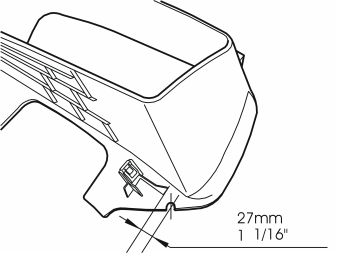

• File a groove in the combined instrument panel surround for the cable for the telephone holder as illustrated.

• Push the felt tape on the right-hand side of the surround to one side.
• Cut off the two tabs.
• Re-apply the tape.

• Reinstall the combined instrument panel surround. Ensure that the telephone holder cable is positioned in the cut-out.
• Adjust the cable length between the telephone holder and surround.
• Tighten the cover and mounting plate to the holder.

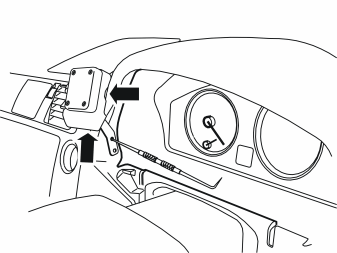

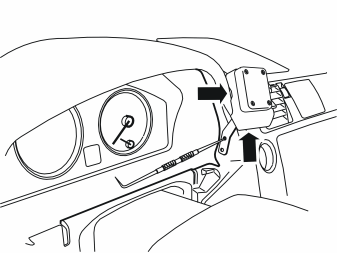

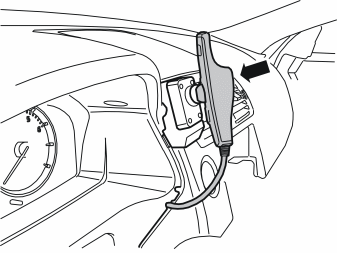

• Press telephone holder into place on the mounting plate. Adjust the cable length outside the surround.

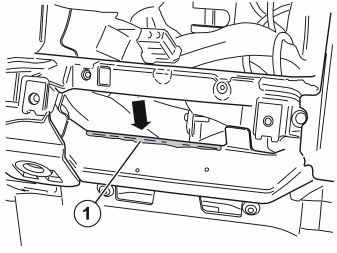

• Saw off the protruding section (1) in the centre console using a hack saw blade.

• File down the edge (1) so that the large surface is completely flat.

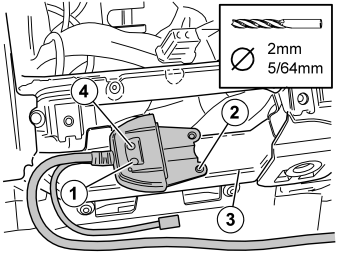

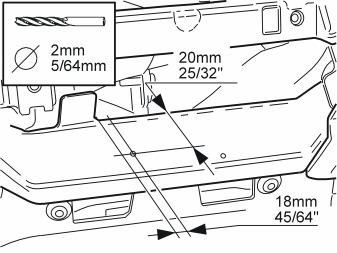

• Mark out and drill a Ø2 mm (5/64 ") hole on the flat surface as illustrated.

• Take one screw and the connector with the two attached cables from the kit and use the screw to secure it in the newly drilled hole. The screw must be tightened in the hole (1) in the connector.
• Now twist the connector so that the hole (2) is inside the edge (3) when drilling.
• Drill out the hole through the hole in the connector. Use a Ø2 mm (5/64 ") drill bit.
• Take a new screw from the kit. Tighten the screw in the drilled hole.
• Drill out the third hole (4) in the same way. Tighten using screws from the kit.
• Remove any swarf and filings.

• Press the switch for the telephone holder into the newly installed connector.

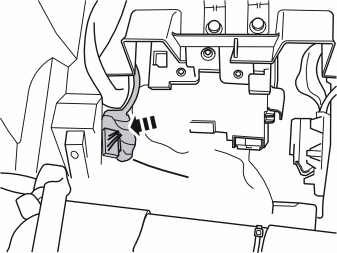

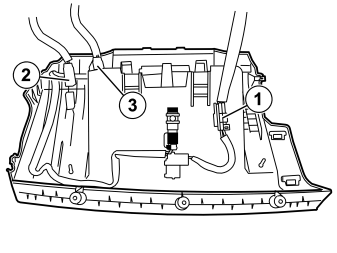

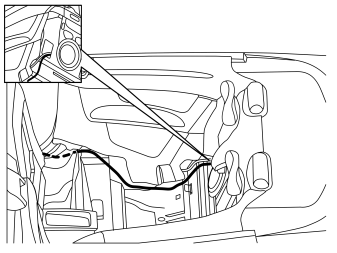

• Route the long cable (1) in the secured connector, inside the panel, over the air duct (2) and forwards. Pull out the cable where the inner section of the glovebox was positioned.
• Route the cable (3) for the microphone in the same way.

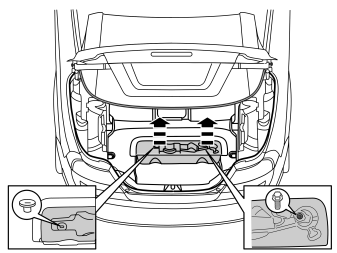

• Install the aerial according to the separate Installation Instructions.

• Connect the short cable (1) from the previously secured connector to the antenna cable (2).

Applies to cars with external amplifier

• Take the long cable harness from the kit.

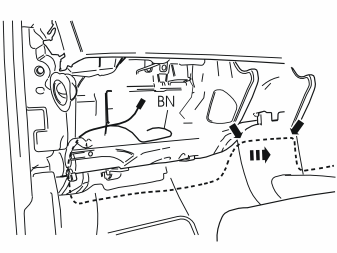

• Route the end with the small white connector and the brown (BN) single cable under the carpet near the right-hand door sill. Pull it up along the front edge of the fuse holder (CEM) and position as illustrated.

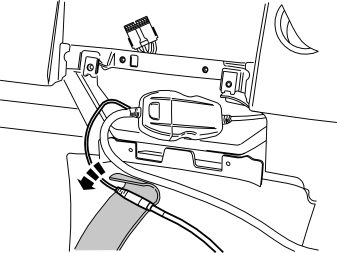

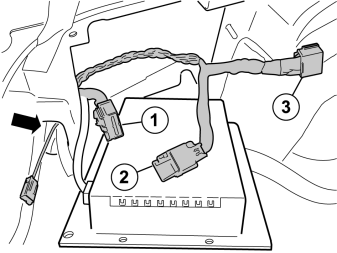

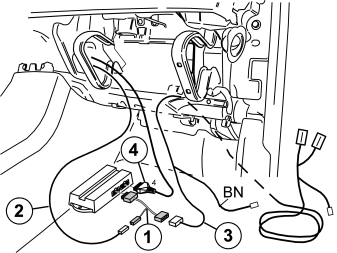

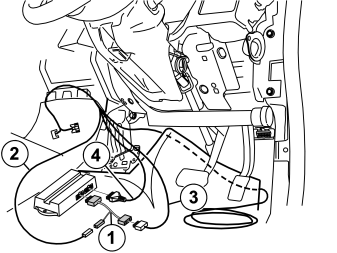

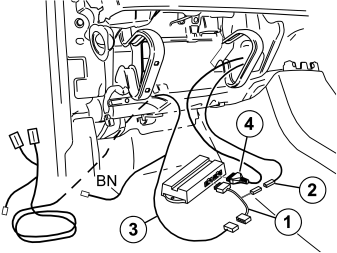

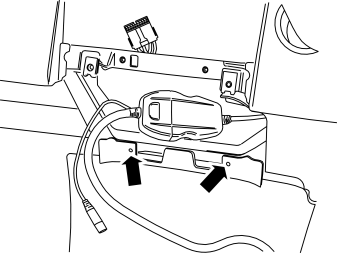

• Take the phone module and connect the adapter cable (1).
• Connect the routed cable harnesses,
• The brown (BN) single cable is connected to the fuse holder (CEM) under the dashboard as per step 43.

Applies to cars with external amplifier

• Wrap the control module with foam tape from the kit to prevent rattling.

Applies to cars with external amplifier

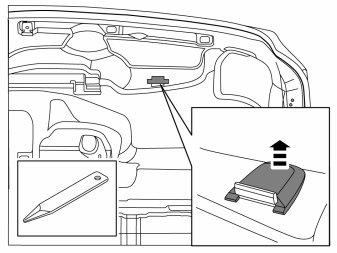

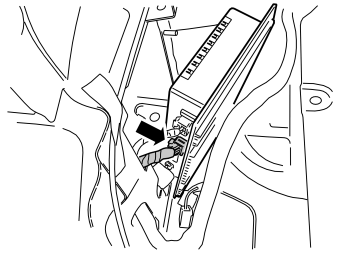

• Remove the 14-pin connector from the fuse holder by pressing in the catch on the front of the connector.

Applies to cars with external amplifier

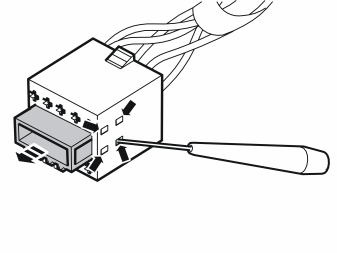

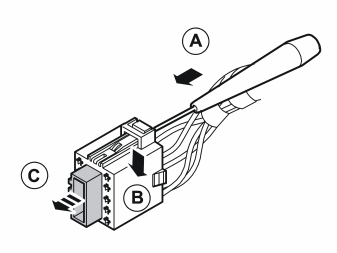

• Press out the connector's secondary catch by first pressing in the lock tab on the inside (A, B) and then press out (C) in one side of the connector.

Applies to cars with external amplifier

• Turn the connector over and push out the other end with the four small holes on the opposite side of the connector.

Applies to cars with external amplifier

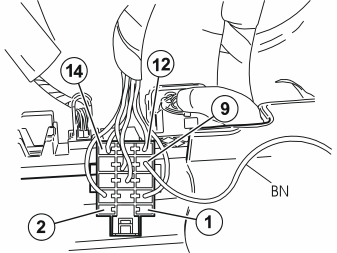

• Connect the routed brown (BN) cable to position 9 in the removed connector.
• Secure the auxiliary locking mechanism on the connector and reinstall it in the fuse holder.

Applies to cars with internal amplifier

• Take the long cable harness from the kit.

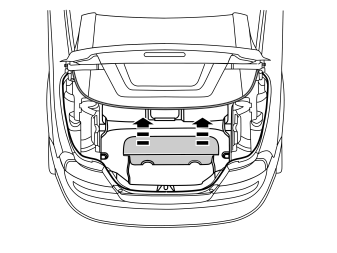

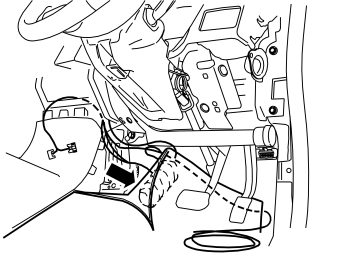

• Route the end with the small white connector under the carpet at the right-hand door sill. Route it up in the front edge of the fuse holder (CEM), route it forward and locate it as illustrated.
• Take the phone module and connect the adapter cable (1).
• Connect the routed cable harnesses,

Applies to cars with internal amplifier

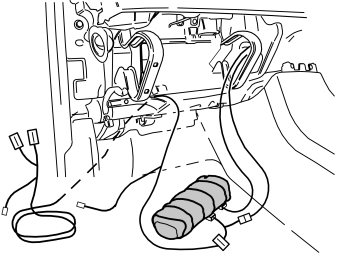

• Wrap the control module with foam tape from the kit to prevent rattling.

Applies to cars with internal amplifier

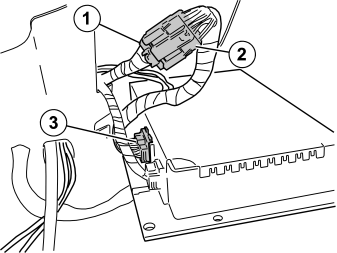

• Connect the grey connector (1) in the routed cable harness to the corresponding socket in the media player.
• Connect the grey connector (2) in the routed cable harness to the grey connector (3) which was detached from the media player.
• Plug the remaining connectors which where detached into the media player.

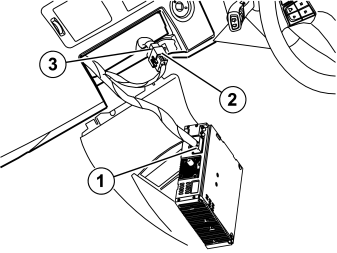

• Reinstall the media player and secure it.

Applies to all models

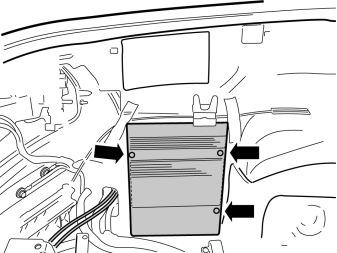

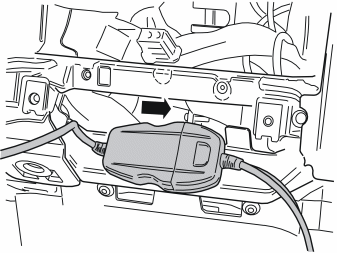

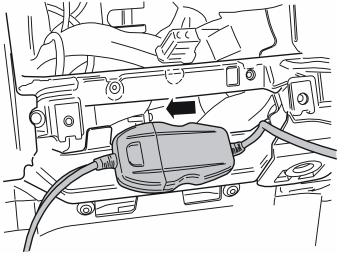

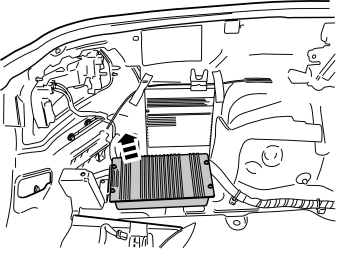

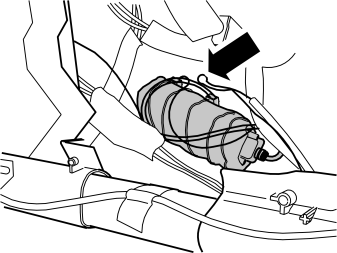

• Place the newly connected phone module as far in against the left-hand side of the bulkhead as possible. Position the module so that it does not loosen or run the risk of becoming trapped by the inner section of the glovebox when the glovebox is reinstalled.

• Turn the ignition key to position 0.
• Disconnect the battery negative lead.

Примечание: Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

• Position the steering wheel in its lowest and rearmost position.
• Remove the two screws from the surround for the combined instrument panel.

• Pull off the surround starting at the lower edge and then at the upper edge. The surround is secured by a clip at each side of the lower edge. Place the surround to one side.

• Carefully pry off the panel at the rear edge of the centre console. Use a weatherstrip tool. The panel is secured by a catch on each of the short sides.
• Move the panel to the side to access the two screws underneath.

• Remove the two screws.

• Open the glovebox.
• Carefully pry off the panel inside the centre console. Use a plastic weatherstrip tool. The panel is secured by two clips on each of the short sides.
• Pull the panel away downwards.

• Remove the temperature sensor by pulling it forward so that it detaches from its holder.

• Detach the surround around the display and the media player: Press in the catch at the edge of the media player cover. Use a small screwdriver. Carefully pry off the surround at the corner. Use a plastic weatherstrip tool.

Примечание: Do not damage the panel and dashboard.

Repeat the operation on the other side.

Подсказка: If the other side does not detach, press the detached side into position again and repeat the procedure, beginning from the other side.
- Fold the surround backwards. Remove by pulling upwards.

• Press out the display module (1) from the reverse of the centre console. Use both hands and press straight back.
• Disconnect the two connectors. Put the display to one side.

• Remove the two screws holding the centre console to the dashboard.
• Remove the connector on the reverse of the dashboard environment panel.
• Remove the centre console from the dashboard and tunnel console.

• Remove the two screws from the bottom of the media player.
• Pull out the media player and detach the connectors on the rear side.

Примечание: Note how the wiring is packed on the reverse. The fibre optic cables are easily damaged and must not be bent to a radius less than 25 mm (1").

• Remove the panel on the right-hand and left-hand ends of the dashboard. Carefully pry off the panel until the three clips release. Use a weatherstrip tool.

Примечание: Do not damage the dashboard.

• Remove the sill trim panel. First pull it away at the front so that the clips there release. Then continue backwards until the remaining clips on the underside have released.

• Remove the clip holding the nozzle for the air duct on the right-hand and left-hand sides.

• Remove the five screws in the opening to the glovebox.

• Remove the glovebox front section by pulling it back until the two clips in the upper edge release. Unplug the two connectors on the top.

• Remove the screw for the vent on the left-hand side. Pull off the vent to the left. Place to one side.

• Remove the four screws for the inner section of the glovebox. Pull out. Place it to one side. If a DVD reader is installed, detach the connectors on the back side.

Illustration A

• Remove the three screws in the soundproofing panel on the right-hand side.
• Push the carpet on the right-hand side of the centre console to one side.

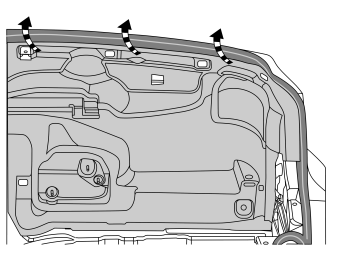

• Carefully pry off the soundproofing panel from the top edge of the dashboard. Use a weatherstrip tool. The panel is secured by two clips at the top edge.

Illustration B

• Unplug the connector (1) for the lighting.
• Remove the sound barrier.

• Take the mounting (1), cover (2), mounting plate (3) and four screws from the kit. Tighten to each other.

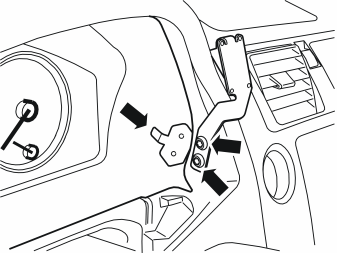

• Position the mounting with the mounting plate and cover in the cut-out for the combined instrument panel surround. The cover must connect to the dashboard where the arrows are displayed.
• Mark out the holes to be drilled for the mounting.

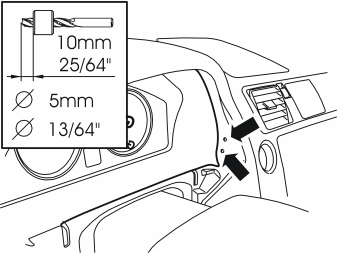

• Drill out the holes using a Ø5 mm (13/64") diameter drill bit. Use a 10 mm (25/64") drill stop to prevent damaging the components on the inside.
• Remove any swarf.

• Remove the holder and cover from the mounting.
• Tighten the mounting to the dashboard. Use the two screws and the mounting plate (positioned on the inside) from the kit.

• Push the felt tape on the left-hand side of the surround to one side.
• Cut off the two tabs.
• Re-apply the tape.

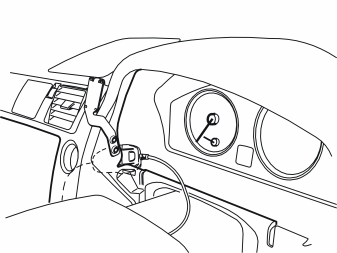

• Take the telephone holder from the kit. Insert the connector on the underside of the ignition switch along the left-hand side of the combined instrument panel. Continue down into the dashboard and out where the cables to the display are located.

• Install the microphone according to the separate Installation Instructions.

• File a groove in the combined instrument panel surround on the left-hand side for the cable to the telephone holder as illustrated.

• Reinstall the combined instrument panel surround. Ensure that the telephone holder cable is positioned in the cut-out.
• Adjust the cable length between the telephone holder and surround.
• Tighten the cover and mounting plate to the holder.

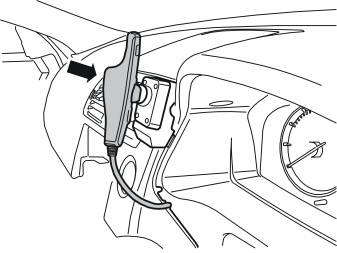

• Press telephone holder into place on the mounting plate. Adjust the cable length outside the surround.

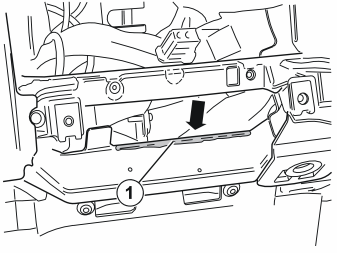

• Saw off the protruding section (1) in the centre console using a hack saw blade.

• File down the edge (1) so that the large surface is completely flat.

• Mark out and drill a Ø2 mm (5/64 ") hole on the flat surface as illustrated.

• Take one screw and the connector with the two attached cables from the kit and use the screw to secure it in the newly drilled hole. The screw must be tightened in the hole (1) in the connector.
• Now twist the connector so that the hole (2) is inside the edge (3) when drilling.
• Drill out the hole through the hole in the connector. Use a Ø2 mm (5/64 ") drill bit.
• Take a new screw from the kit. Tighten the screw in the drilled hole.
• Drill out the third hole (4) in the same way. Tighten using screws from the kit.
• Remove any swarf and filings.

• Press the switch for the telephone holder into the newly installed connector.

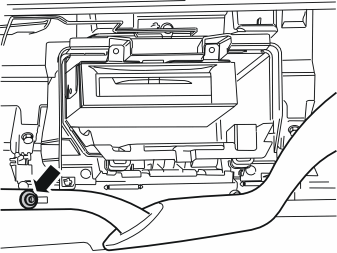

• Remove the two screws along the front edge of the centre console.

Applies to cars with external amplifier

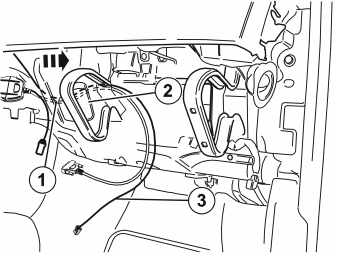

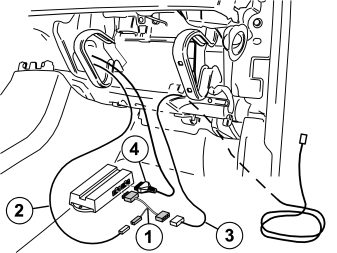

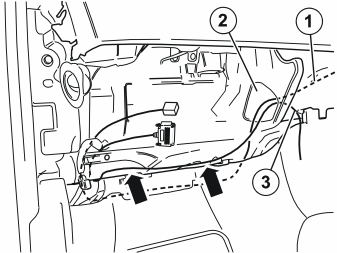

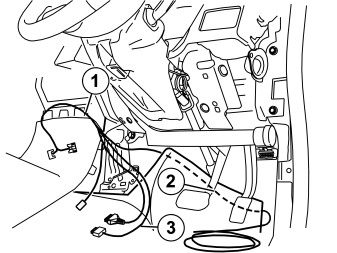

• Route the cable (1) to the microphone through the air duct hole (2). Route the cable inside the edge of the carpet, out towards the left and up to the fuse holder location.
• Route the cable (3) in the secured connector out through the air duct hole (2). Route the cable downward along the existing cable harness and out to the left along the lower edge of the impact member. Continue along the member and up to the fuse holder location.

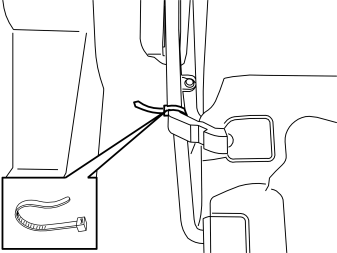

• Secure the cable at the impact member with two tie straps from the kit.

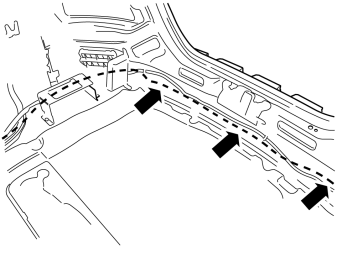

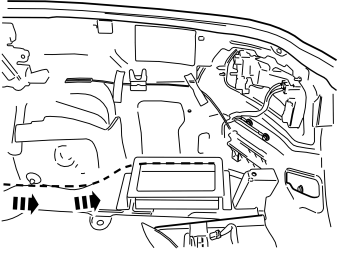

• Push the floor carpet to one side in order to route the cable harness toward the rear of the car.

Applies to cars with external amplifier

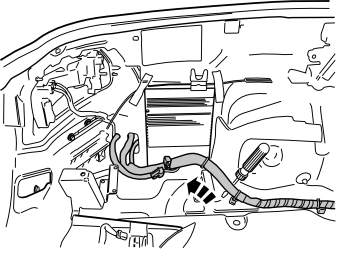

• Remove the large cable harness from the kit. Route the end with the white (W) connector and the brown (BN) single cable to the left-hand side in front of the fuse holder (CEM) where the aerial cable and joint cable connectors to the telephone holder are located.
• Route the cable inside the edge of the carpet to the right and place it under the front edge of the centre console.
• Route it inside the edge of the carpet on the driver's side and out along the sill to the right-hand front door.

• Install the aerial according to the separate Installation Instructions.

• Take the cable from the antenna and connect it to the short cable.

• Wrap the connectors with foam tape from the kit to prevent rattling.

Applies to cars with external amplifier

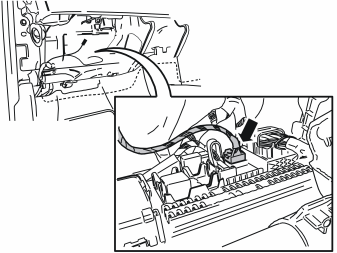

• Remove the 14-pin connectors from the fuse holder (CEM) by first pressing in the catch on the front of each connector.

Applies to cars with external amplifier

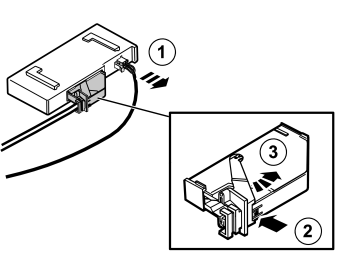

• Press out the connector's secondary catch by first pressing in the lock tab on the inside (A, B) and then press out (C) in one side of the connector.

Applies to cars with external amplifier

• Turn the connector over and push out the other end with the four small holes on the opposite side of the connector.

Applies to cars with external amplifier

• Connect the routed brown (BN) cable to position 9 in the removed connector.
• Secure the auxiliary locking mechanism on the connector and reinstall it in the fuse holder.

Applies to cars with external amplifier

• Take the long cable harness from the kit.

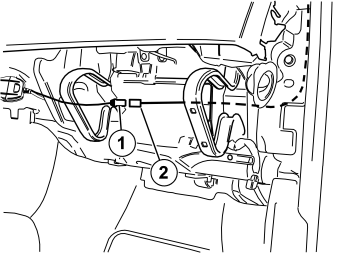

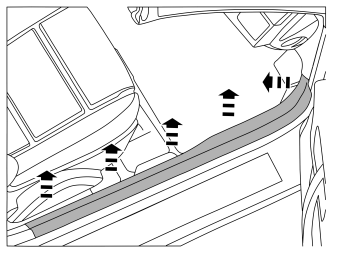

• Route the end with the small white connector and the brown (BN) single cable under the carpet near the right-hand door sill. Pull it up along the front edge of the fuse holder (CEM) and position as illustrated.
• Take the phone module and connect the adapter cable (1).
• Connect the routed cable harnesses,
• The brown (BN) single cable is connected to the fuse holder (CEM) under the dashboard according as per the previous step.

Applies to cars with external amplifier

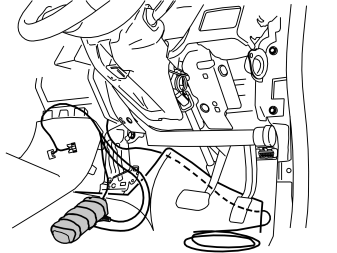

• Wrap the control module with foam tape from the kit to prevent rattling.

Applies to cars with external amplifier

• Place the control module all the way into the recess along the left-hand side near the fuse holder. Position the module so that it does not jostle or run the risk of becoming trapped by the inner section of the glovebox when the glovebox is reinstalled.

Applies to cars with internal amplifier

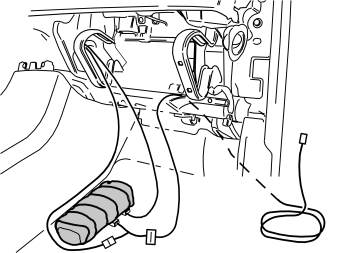

• Take the large cable (1) harness from the kit.
• Route the long single cable (2) and the cable harness (3) with white connector on the right-hand side of the centre console and down towards the floor. The two large grey connectors must remain in the centre of the dashboard where the media player shall be located.
• Route the long single cable (2) in the cable harness down and inside the floor carpet, and out at the right-hand front door sill.

Applies to cars with internal amplifier

• Take the phone module from the kit and connect the adapter cable (1).
• Connect the routed cable harnesses,
• Clamp the cables at the existing cable harness on the right-hand side of the centre console using tie straps from the kit.

Applies to cars with internal amplifier

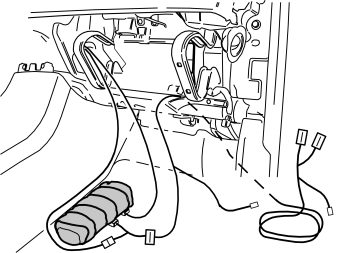

• Wrap the control module with foam tape from the kit to prevent rattling.

Applies to cars with internal amplifier

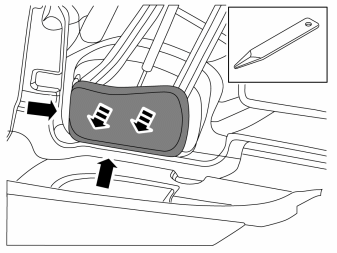

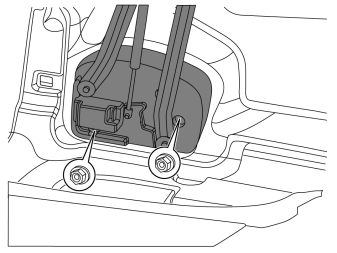

• Fit the newly connected control module furthest in on the right-hand side of the centre console, against the cowl under the carpet.
• Collect all excess cable and place it on the right-hand side as well.

Applies to cars with internal amplifier

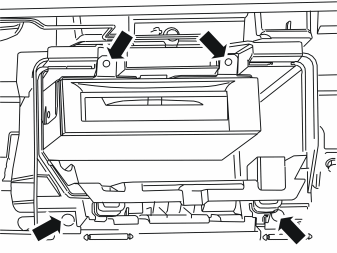

• Connect the grey connector (1) in the routed cable harness to the corresponding socket in the media player.
• Connect the grey connector (2) in the routed cable harness to the grey connector (3) which was detached from the media player.
• Plug the remaining connectors which where detached into the media player.

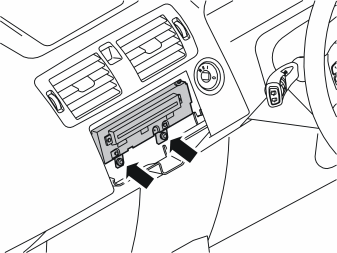

• Reinstall the media player and secure it.

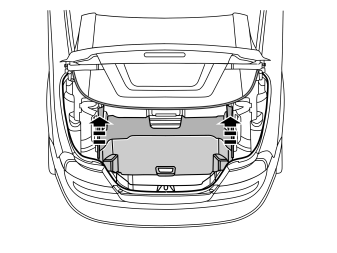

• Lift up the cargo compartment divider.

• Remove the covers on each side of the divider.

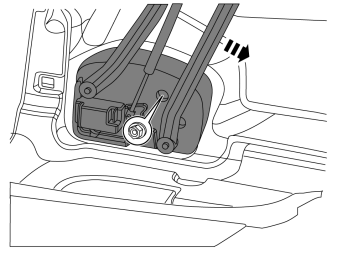

• Unscrew the two nuts on each side of the divider four turns.

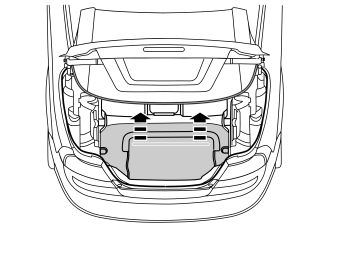

• Lower the divider slightly.
• Unscrew the third nut on each side of the divider four turns.

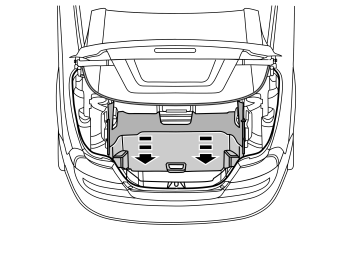

• Lower the divider completely.

• Detach the wire frame from the clip.

• Lock the two partition arms in place with a cable tie (for example) on the right and left side.

• Remove the partition by taking hold of the arms and lifting upward.

Remove:

• the cover on the tool box
• the spare wheel, if in place.

• Take the tools out of the toolbox.

Remove:

• the clip
• the screw
• the toolbox.

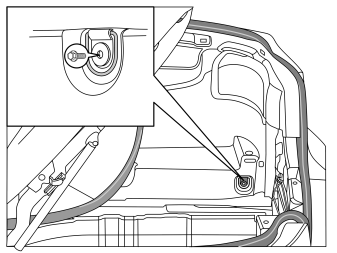

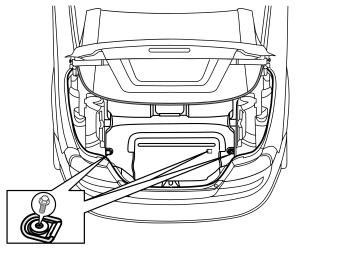

• Remove the three screws and the cargo lashing eyes from the floor.

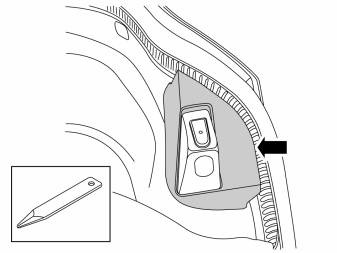

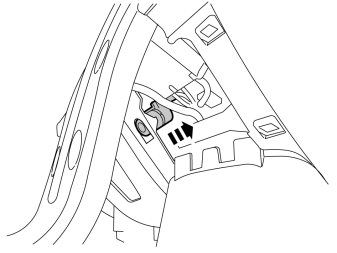

• Remove the cover from the boot lid stop. Use a weatherstrip tool to pry between the cover and the stop to release the catches.
• If the car has an external amplifier, do the same on the left side.

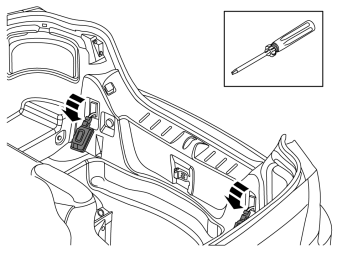

• Remove the two light bulbs by pressing in the two catches at the top with a screwdriver.

For cars with emergency release handle in cargo compartment

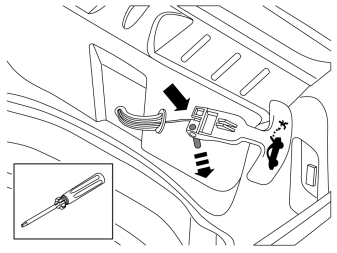

• Remove the emergency opening handle by pressing out the pin at the eye and unhook the wire.

• Remove the two screws in the sill moulding.

• Remove the sill protection by pulling it up until the clip releases. Fold the sill protection to the side.

• Remove the cargo compartment carpeting.

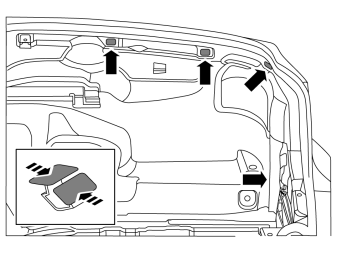

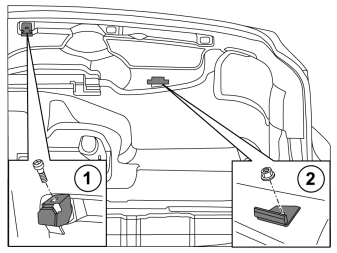

• Remove the rubber stop on the roof's stop bracket on the right side.
• If the car has an external amplifier, do the same on the left side.

• Mark out the stop bracket for the roof in relation to the screw.

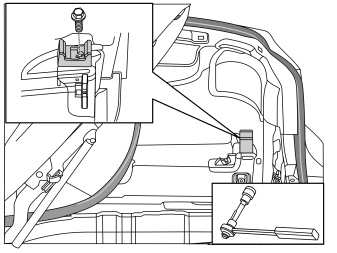

• Remove the screw and the roof's stop bracket on the right side.
• If the car has an external amplifier, do the same on the left side.

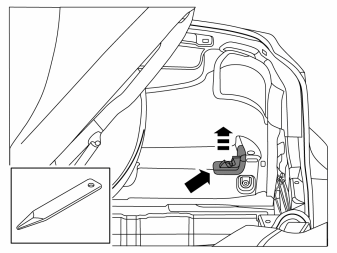

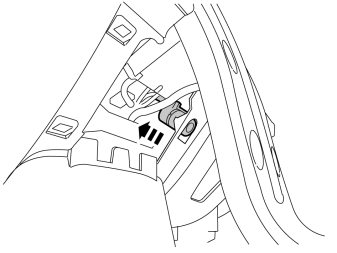

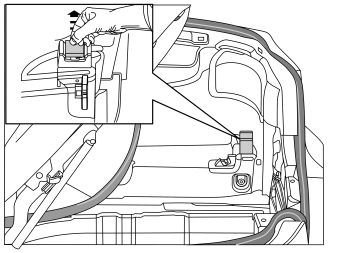

• Remove the load divider lock on the right side by using a weatherstrip tool to prise between the carpet and lock.
• If the car has an external amplifier, do the same on the left side.

• Remove the screw and the cargo lashing eye on the right side.

• Remove the stop bracket cover on the right side.
• If the car has an external amplifier, do the same on the left side.

• Mark out the stop braces for the roof in relation to the screws and nuts on the right side.
• Remove the screw, nut and the roof's stop braces.
• If the car has an external amplifier, do the same on the left side.

• Detach the four clips on the side panel on the right side.
• If the car has an external amplifier, do the same on the left side.

• Remove the side panel by unhooking it from the stop lug at the front edge and the pulling outward and upward so that it releases from the sealing strip.
• If the car has an external amplifier, do the same on the left side.

• Remove the centre section of the rear seat backrest.

• Detach the two rear backrests by gripping them at the top and pulling forward/up.

• Detach the seat cushion by gripping the front edge and pulling it forward.

• Remove the screw and the rear sill trim panel.

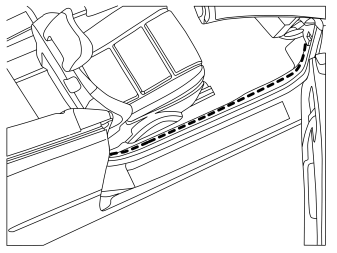

• Route the cable between the floor carpet and the sill. Position the cable so that it is not trapped or damaged.

• Route the cable along the existing cable harness backwards and into the cargo compartment.

• Route the cables along the existing cable harnesses in the cargo compartment.

Осторожно: Ensure that the cable is positioned so that there is no risk of it catching or rubbing.

• Pull the accessory electronic module (AEM) away from its console.

• Unplug the small connector (1) on the accessory electronic module (AEM).
• Unplug the large connector (1) on the accessory electronic module (AEM). Press in the catch (2). Pull the black locking handle (3) in the direction of the arrow until a click is heard.
• Disconnect the connector from the accessory electronic module.

• Remove the black catch holding the black switch in place in the connector by pulling in the direction of the arrow.
• Remove the black switch by inserting a pointed object in the hole on the other shorter side. Press the switch out.

• Cut open approx. 12 cm from the cable sheath on the routed cable harness and take the grey/white cable.
• Connect the grey/white (GR/W) cable to position 11 in the accessory electronic module (AEM) connector.

Примечание: The numerical markings on the top and bottom of the black terminal pin are extremely small, so be careful when installing the cable.
- Reinstall the black switch in the connector. Lock into place using the catch.
- Press the connector into the Accessory Electronic module. Secure using the black locking handle.
- Reinstall the accessory electronic module (AEM) in its bracket.

Applies to cars with external amplifier

• Route the cable harness along the existing cable harnesses in the cargo compartment, away to the amplifier.

Applies to cars with subwoofer amplifier

• Remove the subwoofer amplifier by removing the screws and unplugging the connectors.

Applies to cars with external amplifier

• Detach the cable harness from the weld screw.

Applies to cars with external amplifier

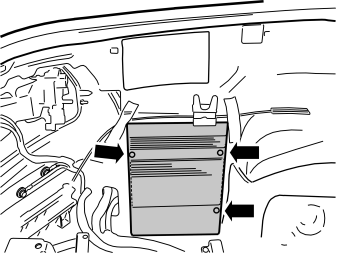

• Remove the screw and the two nuts.

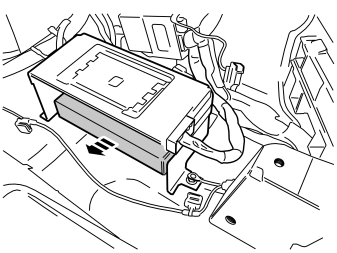

• Lift the amplifier forward.

Applies to cars with external amplifier

• Remove the green connector.

Applies to cars with external amplifier

• Thread the two adapter cable connectors through the hole in the cargo compartment and on behind the amplifier.

Applies to cars with external amplifier

• Connect the adapter cable to the amplifier as follows:
• To prevent rattling, wind foam plastic around the detached connector.

Applies to cars with external amplifier

• Secure the cables at the lead-through with a tie strap. Route the cables on along the car's normal cable harness.
• Reinstall the amplifier with nuts and screws, tightening torque 10 Nm (7 lbf.ft).
• Reinstall the cable harness on the weld screw.

• Reinstall the connectors to the rear section of the glovebox. Note the colour marking on the cable for the right connector.

Passenger compartment

• Reinstall the lower vent.
• Reinstall the front section of the glove compartment.
• Reinstall the rear section of the glovebox by guiding it in diagonally inside the centre console and then straight forward. The rear section must be positioned on the outside of the remaining inner section.
• Reinstall the clips in the vent on the ends of the dashboard.
• Reinstall the panel on the ends of the dashboard.
• Reinstall the centre console and connect the dashboard environment panel.
• Reinstall the panel on the centre console rear edge.
• Connect and reinstall the display unit.
• Press the surround for the display into place.

Reinstall:

• the sound barrier
• the temperature sensor
• the panel inside the centre console
• the sill trim panels on the right-hand side
• the backrests and seat cushion.

Cargo compartment

Reinstall:

• the side panels
• the stops and attaching braces
• the luggage compartment mat
• the sill panel with lighting
• emergency opener, if present
• the stop for the trunk lid
• the cargo lashing eyes with screws, tightening torque: 24 Nm (17 lbf.ft.)
• the tool box
• the divider; remove the cable ties.

• Reconnect the battery negative lead
• Programme the software in accordance with the service information in VIDA.
