Hands free unit for carphone (2006, 2007)

• Turn the ignition key to position 0.
• Disconnect the battery negative lead.

Примечание: Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

• Position the steering wheel in its lowest and rearmost position.
• Remove the two screws from the surround for the combined instrument panel.

• Pull off the surround starting at the lower edge and then at the upper edge. The surround is secured by a clip at each side of the lower edge. Place the surround to one side.

• Carefully pry off the panel at the rear edge of the centre console. Use a weatherstrip tool. The panel is secured by a catch on each of the short sides.
• Move the panel to the side to access the two screws underneath.

• Remove the two screws.

• Open the glovebox.
• Carefully pry off the panel inside the centre console. Use a plastic weatherstrip tool. The panel is secured by two clips on each of the short sides.
• Pull the panel away downwards.

• Remove the temperature sensor by pulling it forward so that it detaches from its holder.

• Detach the surround around the display and the media player: Press in the catch at the edge of the media player cover. Use a small screwdriver. Carefully pry off the surround at the corner. Use a plastic weatherstrip tool.

Примечание: Do not damage the panel and dashboard.

Repeat the operation on the other side.

Подсказка: If the other side does not detach, press the detached side into position again and repeat the procedure, beginning from the other side.
- Fold the surround backwards. Remove by pulling upwards.

• Press out the display module (1) from the reverse of the centre console. Use both hands and press straight back.
• Disconnect the two connectors. Put the display to one side.

• Remove the two screws holding the centre console to the dashboard.
• Remove the connector on the reverse of the dashboard environment panel.
• Remove the centre console from the dashboard and tunnel console.

• Remove the two clips securing the cables to the media player by first pressing them to the sides and then pulling them away downwards.

Примечание: Be careful with the optic cables so that they are not bent or stretched.

• Remove the two screws from the bottom of the media player.
• Pull out the media player and detach the connectors on the rear side.

Примечание: Note how the wiring is packed on the reverse. The fibre optic cables are easily damaged and must not be bent to a radius less than 25 mm (1“).

• Angle up both air vents.

• Take hold of the air vent, press it outwards and pull it up. Do the same to the other air vent.

• Insert a scriber and push up one of the catches in the lower edge of the air vents' housing.
• Insert the tool part no. 9995919 in the space which is opened and pull out until the catch releases.
• Repeat this until all catches in the lower edge have released.

• Grip the ends of the housing and pull out until all catches on both the top and bottom are fully free from the inside of the dashboard. If necessary, use a weatherstrip tool to prize out the ends of the housing.

Примечание: Do not damage the dashboard.

Примечание: Pull alternately on the right and left-hand sides, otherwise the edge of the housing will crack where it enters the air ducts on the inside. The housing is secured firmly so force will be required to release it.

• Remove the panel on the right-hand and left-hand ends of the dashboard. Carefully pry off the panel until the three clips release. Use a weatherstrip tool.

Примечание: Do not damage the dashboard.

• Remove the clip holding the nozzle for the air duct on the right-hand and left-hand sides.

• Remove the rubber mat.
• Remove the screws, x 5, in the glovebox opening.
• Pull the glovebox straight back in the vehicle in order to release the hidden clips, x 2, in the top edge.
• Remove the outer section of the glovebox.

• Unplug the connectors on the top.

• Remove the screw for the vent on the right-hand side. Pull off the vent to the right. Place to one side.

• Remove the four screws for the inner section of the glovebox. Pull it out. Place it to one side.If there is a DVD reader installed, unplug the connectors on the rear.

• Remove the sill trim panel at the right-hand front door. First pull off the front edge of the sill trim panel so that the clip releases. Then continue backward until the remaining clips on the underside have released.

Illustration A

• Remove the three screws in the soundproofing panel on the left-hand side.
• Push the carpet on the left-hand side of the centre console to one side.
• Carefully pry off the soundproofing panel from the top edge of the dashboard. Use a weatherstrip tool. The panel is secured by two clips at the top edge.

Illustration B

• Unplug the connector for the lighting (1).
• Remove the sound barrier.

• Fit the support legs of the bracket from the kit into the socket for the surround of the combined instrument panel and in the left-hand air vent.
• Position the left-hand support leg of the bracket as illustrated. The front edge of the support leg must be parallel with the edge in the cut-out in the dashboard and the measurement to the bottom edge of the support leg must be taken from the centre of the radius.
• Mark out the holes to be drilled for the mounting.

• Drill out the holes using a Ø5 mm (13/64") diameter drill bit. Use a 10 mm (25/64") drill stop to prevent damaging the components on the inside.
• Remove any swarf.

• Secure the left-hand support leg of the bracket to the dashboard using two screws and the mounting plate (located on the inside) from the kit.

• Drill out the hole for the right-hand support leg with a Ø4 mm (5/32") diameter bit.
• Take a screw from the kit and secure the right-hand support leg.

• Take a mounting plate and the aerial cable connector from the kit.
• Press in the aerial cable connector onto the rear of the mounting plate.

• Take the mounting plate and four screws (l = 16mm) from the kit. Secure the mounting plate in the installed bracket.

• Insert the two connectors on the top of the ignition switch, on the right-hand side of the combined instrument panel, and then down in the dashboard. There is not much space by the ignition switch, so be careful with the cables there.

• Install the microphone according to the separate Installation Instructions.

• File a groove in the combined instrument panel surround for the cable for the telephone holder as illustrated.

• Reinstall the combined instrument panel surround. Ensure that the telephone holder cable is positioned in the cut-out.
• Adjust the cable length between the telephone holder and surround.
• Reinstall the housing and air vents.

Примечание: When the air vents' housing is reinstalled, make sure that the protruding parts on the right-hand end of the housing do not damage the dashboard.
- Install the telephone holder on the mounting plate.

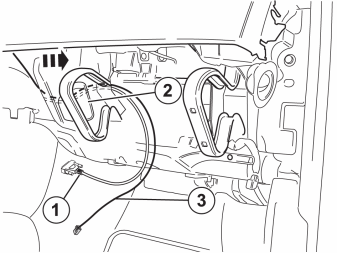

• Route the long cable (1) in the secured mounting plate, inside the panel, over the air duct (2) and forward. Route the cable out where the inner part of the glove compartment was fitted.
• Route the cable (3) for the microphone in the same way.

• Install the aerial according to the separate Installation Instructions.

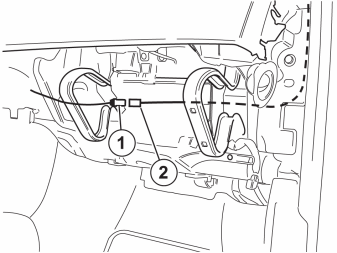

• Connect the aerial cable (2) to the short cable (1) from the telephone holder mounting plate.

Applies to cars with external amplifier

• Take the long cable harness from the kit.
• Route the end with the small white connector and the brown (BN) single cable under the carpet near the right-hand door sill. Pull it up along the front edge of the fuse holder (CEM) and position as illustrated.

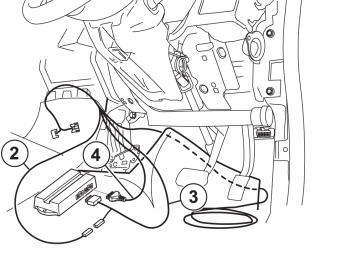

• Take the phone module and connect the adapter cable (1).
• Connect the routed cable harnesses,
• The brown (BN) single cable is connected to the fuse holder (CEM) under the dashboard as per step 43.

Applies to cars with external amplifier

• Wrap the control module with foam tape from the kit to prevent rattling.

Applies to cars with external amplifier

• Remove the 14-pin connector from the fuse holder by pressing in the catch on the front of the connector.

Applies to cars with external amplifier

• Press out the connector's secondary catch by first pressing in the lock tab on the inside (A, B) and then press out (C) in one side of the connector.

Applies to cars with external amplifier

• Turn the connector over and push out the other end with the four small holes on the opposite side of the connector.

Applies to cars with external amplifier

• Connect the routed brown (BN) cable to position 9 in the removed connector.
• Secure the auxiliary locking mechanism on the connector and reinstall it in the fuse holder.

Applies to cars with internal amplifier

• Take the long cable harness from the kit.
• Route the end with the small white connector under the carpet at the right-hand door sill. Route it up in the front edge of the fuse holder (CEM), route it forward and locate it as illustrated.

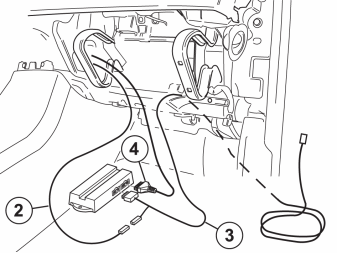

• Take the telephone control module and connect the routed cable harnesses,

Applies to cars with internal amplifier

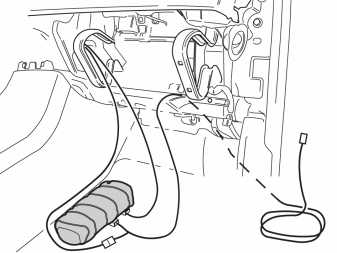

• Wrap the control module with foam tape from the kit to prevent rattling.

Applies to cars with internal amplifier

• Connect the grey connector (1) in the routed cable harness to the corresponding socket in the media player.
• Connect the grey connector (2) in the routed cable harness to the grey connector (3) which was detached from the media player.
• Plug the remaining connectors which where detached into the media player.
• Reinstall the media player and secure it.

Applies to all models

• Place the newly connected phone module as far in against the left-hand side of the bulkhead as possible. Position the module so that it does not loosen or run the risk of becoming trapped by the inner section of the glovebox when the glovebox is reinstalled.

• Turn the ignition key to position 0.
• Disconnect the battery negative lead.

Примечание: Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

• Position the steering wheel in its lowest and rearmost position.
• Remove the two screws from the surround for the combined instrument panel.

• Pull off the surround starting at the lower edge and then at the upper edge. The surround is secured by a clip at each side of the lower edge. Place the surround to one side.

• Carefully pry off the panel at the rear edge of the centre console. Use a weatherstrip tool. The panel is secured by a catch on each of the short sides.
• Move the panel to the side to access the two screws underneath.

• Remove the two screws.

• Open the glovebox.
• Carefully pry off the panel inside the centre console. Use a plastic weatherstrip tool. The panel is secured by two clips on each of the short sides.
• Pull the panel away downwards.

• Remove the temperature sensor by pulling it forward so that it detaches from its holder.

• Detach the surround around the display and the media player: Press in the catch at the edge of the media player cover. Use a small screwdriver. Carefully pry off the surround at the corner. Use a plastic weatherstrip tool.

Примечание: Do not damage the panel and dashboard.

Repeat the operation on the other side.

Подсказка: If the other side does not detach, press the detached side into position again and repeat the procedure, beginning from the other side.
- Fold the surround backwards. Remove by pulling upwards.

• Press out the display module (1) from the reverse of the centre console. Use both hands and press straight back.
• Disconnect the two connectors. Put the display to one side.

• Remove the two screws holding the centre console to the dashboard.
• Remove the connector on the reverse of the dashboard environment panel.
• Remove the centre console from the dashboard and tunnel console.

• Remove the two clips securing the cables to the media player by first pressing them to the sides and then pulling them away downwards.

Примечание: Be careful with the optic cables so that they are not bent or stretched.

• Remove the two screws from the bottom of the media player.
• Pull out the media player and detach the connectors on the rear side.

Примечание: Note how the wiring is packed on the reverse. The fibre optic cables are easily damaged and must not be bent to a radius less than 25 mm (1“).

• Angle up both air vents.

• Grip the air vent, press it out and pull it up.
• Do the equivalent to the other air vent.

• Insert a scriber and push up one of the catches in the lower edge of the air vents' housing.
• Insert the tool part no. 9995919 in the space which is opened and pull out until the catch releases.
• Repeat this until all catches in the lower edge have released.

• Grip the ends of the housing and pull out until all catches on both the top and bottom are fully free from the inside of the dashboard. If necessary, use a weatherstrip tool to prize out the ends of the housing.

Примечание: Do not damage the dashboard.

Примечание: Pull alternately on the right and left-hand sides, otherwise the edge of the housing will crack where it enters the air ducts on the inside. The housing is secured firmly so force will be required to release it.

• Remove the panel on the right-hand and left-hand ends of the dashboard. Carefully pry off the panel until the three clips release. Use a weatherstrip tool.

Примечание: Do not damage the dashboard.

• Remove the sill trim panel. First pull it away at the front so that the clips there release. Then continue backwards until the remaining clips on the underside have released.

• Remove the clip holding the nozzle for the air duct on the right-hand and left-hand sides.

• Remove the five screws in the opening to the glovebox.

• Remove the glovebox front section by pulling it back until the two clips in the upper edge release. Unplug the two connectors on the top.

• Remove the screw for the vent on the left-hand side. Pull off the vent to the left. Place to one side.

• Remove the four screws for the inner section of the glovebox. Pull out. Place it to one side. If a DVD reader is installed, detach the connectors on the back side.

Illustration A

• Remove the three screws in the soundproofing panel on the right-hand side.
• Push the carpet on the right-hand side of the centre console to one side.
• Carefully pry off the soundproofing panel from the top edge of the dashboard. Use a weatherstrip tool. The panel is secured by two clips at the top edge.

Illustration B

• Unplug the connector (1) for the lighting.
• Remove the sound barrier.

• Fit the support legs of the bracket from the kit in the socket for the surround of the combined instrument panel and in the right-hand air vent.
• Position the right-hand support leg of the bracket as illustrated. The front edge of the support leg must be parallel with the edge in the cut-out in the dashboard and the measurement to the bottom edge of the support leg must be taken from the centre of the radius.
• Mark out the holes to be drilled for the mounting.

• Drill out the holes using a Ø5 mm (13/64") diameter drill bit. Use a 10 mm (25/64") drill stop to prevent damaging the components on the inside.
• Remove any swarf.

• Secure the right-hand support leg of the bracket to the dashboard using two screws and the mounting plate (located on the inside) from the kit.

• Drill out the hole for the left-hand support leg with a Ø4 mm (5/32") diameter bit.
• Take a screw from the kit and secure the left-hand support leg.

• Take a mounting plate and the aerial cable connector from the kit.
• Press in the aerial cable connector onto the rear of the mounting plate.

• Take the mounting plate and four screws (l = 16mm) from the kit. Secure the mounting plate in the installed bracket.

• Insert the two connectors on the underside of the ignition switch, on the left-hand side of the combined instrument panel, and then down in the dashboard.

• Push the felt tape on the left-hand side of the surround to one side.
• Cut off the two tabs.
• Re-apply the tape.

• Install the microphone according to the separate Installation Instructions.

• File a groove in the combined instrument panel surround on the left-hand side for the cable to the telephone holder as illustrated.

• Reinstall the combined instrument panel surround. Ensure that the telephone holder cable is positioned in the cut-out.
• Adjust the cable length between the telephone holder and surround.
• Reinstall the housing and air vents.

Примечание: When the air vents' housing is reinstalled, make sure that the protruding parts on the left-hand end of the housing do not damage the dashboard.
- Install the telephone holder on the mounting plate.

• Route the two cables from the secured mounting plate.

Applies to cars with external amplifier

• Route the cable (1) from the microphone through the air duct hole (2). Route the cable inside the edge of the carpet, out towards the left and up to the fuse holder location.
• Route the cable (3) in the secured connector out through the air duct hole (2). Route the cable downward along the existing cable harness and out to the left along the lower edge of the impact member. Continue along the member and up to the fuse holder location.
• Secure the cable at the impact member with two tie straps from the kit.

• Install the aerial according to the separate Installation Instructions.

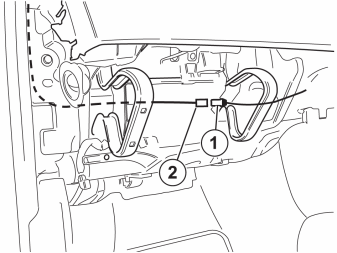

• Connect the aerial cable (2) to the short cable (1) from the telephone holder mounting plate.

Applies to cars with external amplifier

• Remove the large cable harness from the kit. Route the end with the white connector and the brown (BN) solid core cable to the left-hand side in front of the fuse holder (CEM) where the aerial cable and joint cable connectors to the telephone holder are located.
• Route the cable inside the edge of the carpet to the right and place it under the front edge of the centre console.
• Route it inside the edge of the carpet on the driver's side and out along the sill to the right-hand front door.

Applies to cars with external amplifier

• Remove the 14-pin connectors from the fuse holder (CEM) by first pressing in the catch on the front of each connector.

Applies to cars with external amplifier

• Press out the connector's secondary catch by first pressing in the lock tab on the inside (A, B) and then press out (C) in one side of the connector.

Applies to cars with external amplifier

• Turn the connector over and push out the other end with the four small holes on the opposite side of the connector.

Applies to cars with external amplifier

• Connect the routed brown (BN) cable to position 9 in the removed connector.
• Secure the auxiliary locking mechanism on the connector and reinstall it in the fuse holder.

Applies to cars with external amplifier

• Take the long cable harness from the kit.
• Route the end with the small white connector and the brown (BN) single cable under the carpet near the right-hand door sill. Pull it up along the front edge of the fuse holder (CEM) and position as illustrated.
• Take the phone module and connect the adapter cable (1).
• Connect the routed cable harnesses,
• The brown (BN) single cable is connected to the fuse holder (CEM) under the dashboard according as per the previous step.

Applies to cars with external amplifier

• Wrap the control module with foam tape from the kit to prevent rattling.

Applies to cars with external amplifier

• Place the control module all the way into the recess along the left-hand side near the fuse holder. Position the module so that it does not jostle or run the risk of becoming trapped by the inner section of the glovebox when the glovebox is reinstalled.

Applies to cars with internal amplifier

• Take the large cable (1) harness from the kit.
• Route the long single cable (2) and the cable harness (3) with black connector on the right-hand side of the centre console and down towards the floor. The two large grey connectors must remain in the centre of the dashboard where the media player shall be located.
• Route the long single cable (2) in the cable harness down and inside the floor carpet, and out at the right-hand front door sill.

Applies to cars with internal amplifier

• Take the telephone control module from the kit and connect the routed cable harnesses,
• Clamp the cables at the existing cable harness on the right-hand side of the centre console using tie straps from the kit.

Applies to cars with internal amplifier

• Wrap the control module with foam tape from the kit to prevent rattling.

Applies to cars with internal amplifier

• Fit the newly connected control module furthest in on the right-hand side of the centre console, against the cowl under the carpet.
• Collect all excess cable and place it on the right-hand side as well.

Applies to cars with internal amplifier

• Connect the grey connector (1) in the routed cable harness to the corresponding socket in the media player.
• Connect the grey connector (2) in the routed cable harness to the grey connector (3) which was detached from the media player.
• Plug the remaining connectors which where detached into the media player.
• Reinstall the media player and secure it.

• Lift up the cargo compartment divider.

• Remove the covers on each side of the divider.

• Unscrew the two nuts on each side of the divider four turns.

• Lower the divider slightly.
• Unscrew the third nut on each side of the divider four turns.

• Lower the divider completely.

• Detach the wire frame from the clip.

• Lock the two partition arms in place with a cable tie (for example) on the right and left side.

• Remove the partition by taking hold of the arms and lifting upward.

Remove:

• the cover on the tool box
• the spare wheel, if in place.

• Take the tools out of the toolbox.

Remove:

• the clip
• the screw
• the toolbox.

• Remove the three screws and the cargo lashing eyes from the floor.

• Remove the cover from the trunk lid stop. Use a weatherstrip tool to pry between the cover and the stop to release the catches.

• Remove the two light bulbs by pressing in the two catches at the top with a screwdriver.

For cars with emergency release handle in cargo compartment

• Remove the emergency opening handle by pressing out the pin at the eye and unhook the wire.

• Remove the two screws in the sill moulding.

• Remove the sill protection by pulling it up until the clip releases. Fold the sill protection to the side.

• Remove the cargo compartment carpeting.

• Remove the rubber stop on the roof's stop brace.

• Mark out the stop bracket for the roof in relation to the screw.
• Remove the screw and the roof's stop brace.

• Remove the load divider lock by using a weatherstrip tool to pry between the carpet and lock.

• Remove the screw and the cargo lashing eye on the right side.

• Remove the stop brace cover.

• Mark out the stop braces for the roof in relation to the screws and nuts on the right side.
• Remove the screw, nut and the roof's stop braces.

• Undo the four clips on the side panel.

• Remove the side panel by unhooking it from the stop lug at the front edge and the pulling outward and upward so that it releases from the sealing strip.

• Remove the centre section of the rear seat backrest.

• Detach the two rear backrests by gripping them at the top and pulling forward/up.

• Detach the seat cushion by gripping the front edge and pulling it forward.

• Remove the screw and the rear sill trim panel.

• Route the cable between the floor carpet and the sill. Position the cable so that it is not trapped or damaged.

• Route the cable along the existing cable harness backwards and into the cargo compartment.

• Route the cables along the existing cable harnesses in the cargo compartment.

Осторожно: Ensure that the cable is positioned so that there is no risk of it catching or rubbing.

• Pull the accessory electronic module (AEM) away from its console.

• Unplug the small connector (1) on the accessory electronic module (AEM).
• Unplug the large connector (1) on the accessory electronic module (AEM). Press in the catch (2). Pull the black locking handle (3) in the direction of the arrow until a click is heard.
• Disconnect the connector from the accessory electronic module.

• Remove the black catch holding the black switch in place in the connector by pulling in the direction of the arrow.
• Remove the black switch by inserting a pointed object in the hole on the other shorter side. Press the switch out.

• Cut open approx. 12 cm from the cable sheath on the routed cable harness and take the grey/white cable.
• Connect the grey/white (GR/W) cable to position 11 in the accessory electronic module (AEM) connector.

Примечание: The numerical markings on the top and bottom of the black terminal pin are extremely small, so be careful when installing the cable.
- Reinstall the black switch in the connector. Lock into place using the catch.
- Press the connector into the Accessory Electronic module. Secure using the black locking handle.
- Reinstall the accessory electronic module (AEM) in its bracket.

Applies to cars with external amplifier

• Route the cable harness along the existing cable harnesses in the cargo compartment, away to the amplifier.

Applies to cars with subwoofer amplifier

• Remove the subwoofer amplifier by removing the screws and unplugging the connectors.

Applies to cars with external amplifier

• Detach the cable harness from the weld screw.

Applies to cars with external amplifier

• Remove the screw and the two nuts.
• Lift the amplifier forward.

Applies to cars with external amplifier

• Remove the green connector.

Applies to cars with external amplifier

• Thread the two adapter cable connectors through the hole in the cargo compartment and on behind the amplifier.

Applies to cars with external amplifier

• Connect the adapter cable to the amplifier as follows:
• To prevent rattling, wind foam plastic around the detached connector.

Applies to cars with external amplifier

• Secure the cables at the lead-through with a tie strap. Route the cables on along the car's normal cable harness.
• Reinstall the amplifier with nuts and screws, tightening torque 10 Nm (7 lbf.ft).
• Reinstall the cable harness on the weld screw.

• Reinstall the connectors to the rear section of the glovebox. Note the colour marking on the cable for the right connector.

Passenger compartment

• Reinstall the lower vent.
• Reinstall the rear section of the glovebox by guiding it in diagonally inside the centre console and then straight forward. The rear section must be positioned on the outside of the remaining inner section.
• Reinstall the clips in the vent on the ends of the dashboard.
• Reinstall the panels on the ends of the dashboard.
• Reinstall the centre console and connect the dashboard environment panel.
• Reinstall the panel on the centre console rear edge.
• Connect and reinstall the display unit.
• Press the surround for the display into place.

Reinstall:

• the sound barrier
• the temperature sensor
• the panel inside the centre console
• the sill trim panels on the right-hand side
• the backrests and seat cushion.

Cargo compartment

Reinstall:

• the side panels
• the stops and attaching braces
• the luggage compartment mat
• the sill panel with lighting
• emergency opener, if present
• the stop for the trunk lid
• the cargo lashing eyes with screws, tightening torque: 24 Nm (17 lbf.ft.)
• the tool box
• the divider; remove the cable ties.

• Reconnect the battery negative lead
• Programme the software in accordance with the service information in VIDA.
